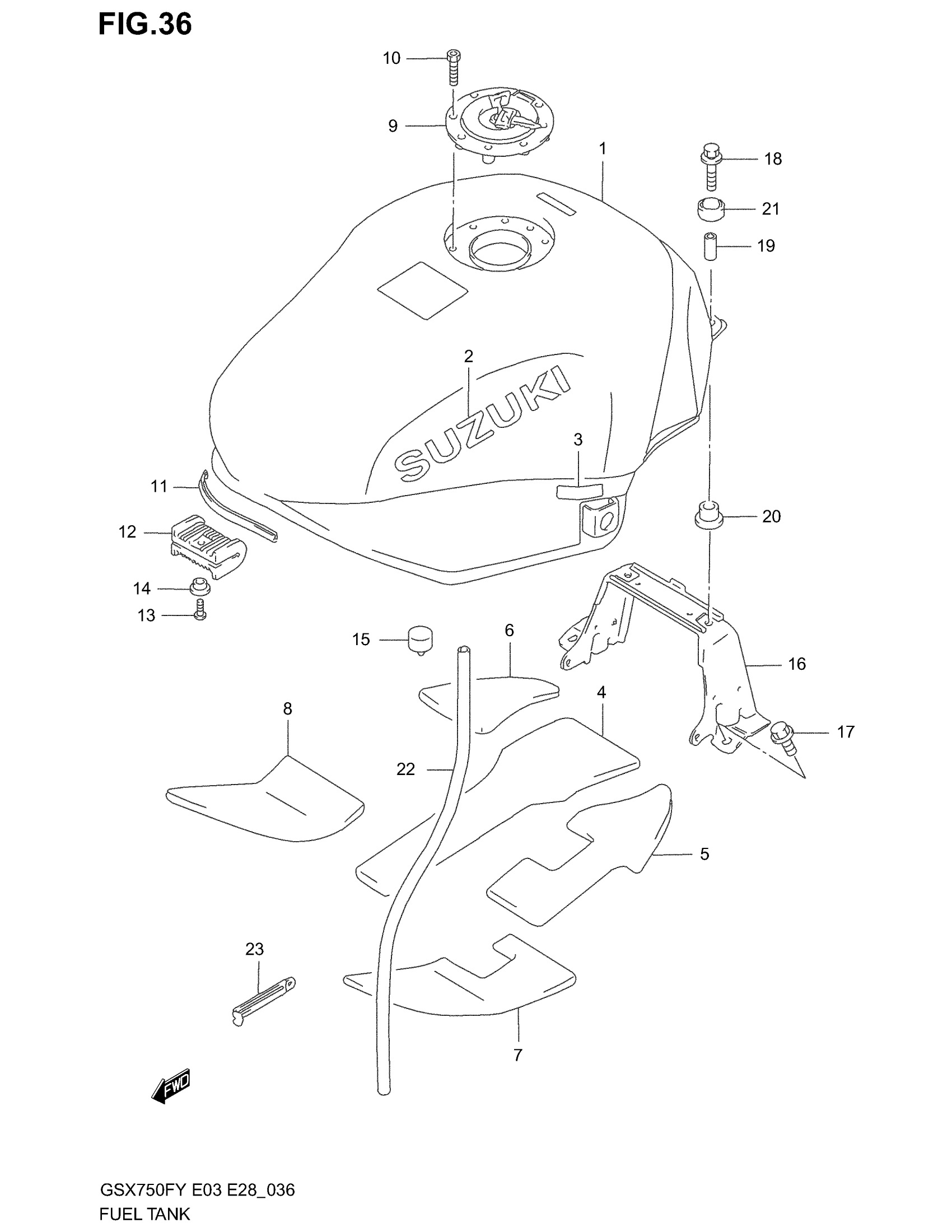

Suzuki GSX750F (2003) FUEL TANK (MODEL W/X) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | MODEL W This part replaces 44100-08F00-33J.

44100-08F10-33J

Unavailable

1

TANK ASSY,FUEL This part replaces 44100-08F00-Y4M.

44100-08F10-Y4M

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 44100-08F00-Y7H.

44100-08F10-Y7H

Unavailable

1

TANK ASSY, FUEL (BLACK) | MODEL W E33 This part replaces 44100-08F20-33J.

44100-08F30-33J

Unavailable

1

TANK ASSY,FUEL | E33 This part replaces 44100-08F20-Y4M.

44100-08F30-Y4M

Unavailable

1

TANK ASSY,FUEL | MODEL X E33; Includes Item(s) 2 This part replaces 44100-08F20-Y7H.

44110-08F20-YD8

Unavailable

2

EMBLEM (SILVER) This part replaces 68111-47C00-20H.

68111-47C10-20H

Unavailable

3

PROTECTOR, FUEL TANK

32851-10D00

$5.05

4

SHIELD, HEAT NO.1

44191-08F00

Unavailable

5

SHIELD, HEAT NO.2

44192-08F00

$34.93

6

SHIELD, HEAT NO.3

44193-08F00

$16.78

7

SHIELD, HEAT NO.4

44194-08F00

$18.58

8

SHIELD, HEAT NO.5

44195-08F00

Unavailable

9

CAP SET,FUEL TA This part replaces 44200-33870.

44200-33872

$211.40

9

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

10

BOLT

09106-05017

$2.83

11

MOLDING, FUEL TANK

68241-08F00

$8.42

12

CUSHION, FUEL TANK FRONT

44510-33D00

$20.32

13

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

14

WASHER

09169-05012

$2.38

15

CUSHION, FUEL TANK SIDE

09321-10011

$2.91

16

BRACKET, REAR

44550-08F00

Unavailable

17

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

18

BOLT, REAR

09116-06172

$2.50

19

SPACER

09180-06271

$2.35

20

CUSHION, REAR

09320-10038

$2.61

21

CUSHION, REAR

09320-14017

$2.35

22

HOSE,FUEL TANK This part replaces 44423-08F00.

44423-08F01

Unavailable

23

CLAMP

09404-08420

$3.16
