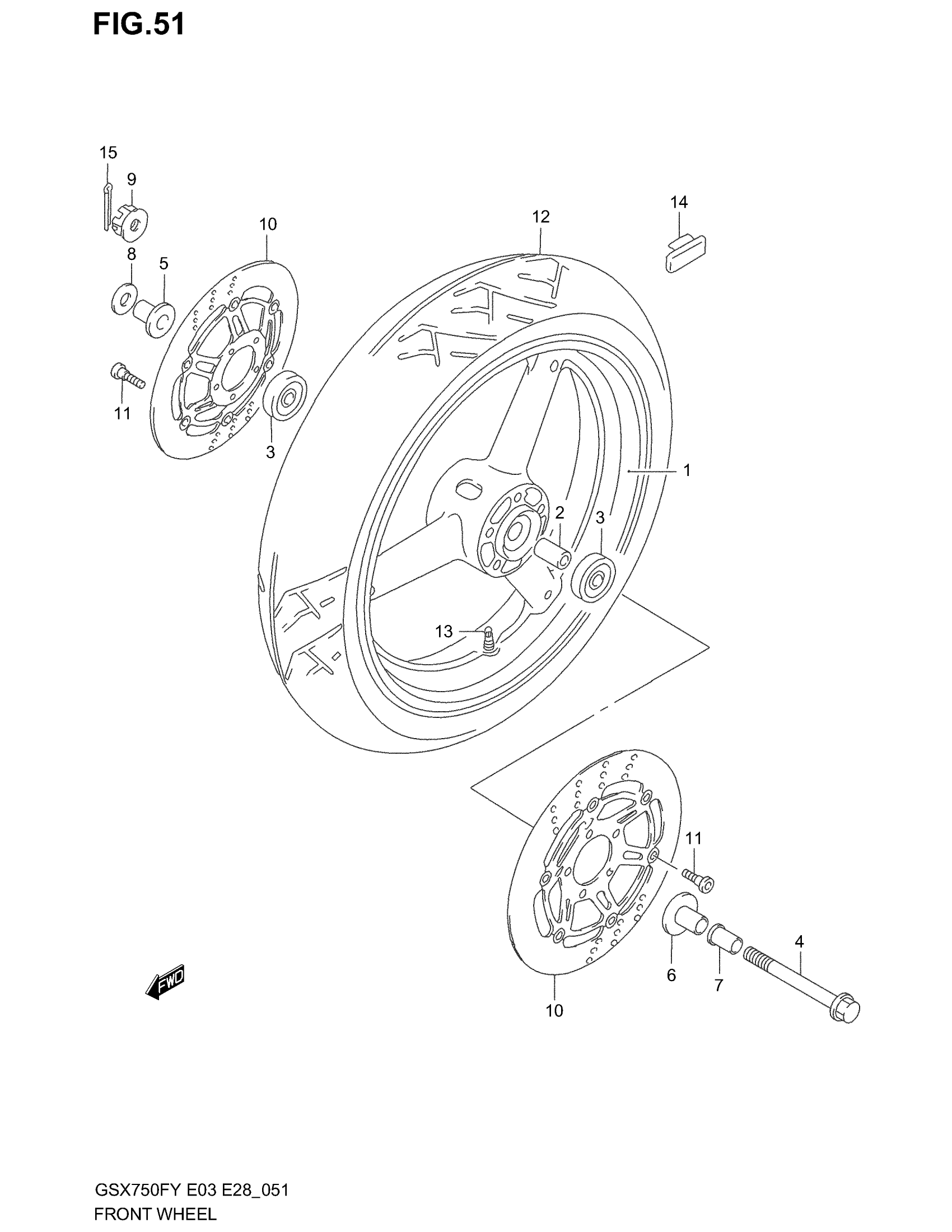

Suzuki GSX750F (2003) FRONT WHEEL (MODEL W/X/Y/K1/K2) Diagram

#

Description
Price

1

WHEEL, FRONT (17XMT3.50) (SILVER) | MODEL W/X

54111-08F10-Y6G

Unavailable

1

WHEEL, FRONT (17XMT3.50) (GRAY) | MODEL Y/K1

54111-08F10-35W

Unavailable

1

WHEEL, FRONT (17XMT3.50) (BLACK) | MODEL K2

54111-08F10-019

Unavailable

2

SPACER (15.3X21.7X63)

09180-15011

$8.18

3

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

4

AXLE, FRONT

54711-19C00

Unavailable

5

SPACER, FRONT AXLE RH

54740-33410

$19.15

6

SPACER, FRONT AXLE LH

54750-08F00

Unavailable

7

SPACER, FRONT AXLE LH

54741-19C00

Unavailable

8

WASHER

08322-01127

$1.84

9

NUT

09159-12027

$15.67

10

DISC, FRONT BRAKE

59210-08F00

Unavailable

11

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

12

TIRE, FRONT,120/70 ZR17 (58W) (DUNLOP)

55110-08F10

Unavailable

13

VALVE ASSY, WHEEL RIM (TR412) | MODEL W This part replaces 43130-24A11.

43130-24A00

$8.85

13

VALVE ASSY, WHEEL RIM (TR412) | MODEL X/Y/K1/K2

43130-24A00

$8.85

14

BALANCER, WHEEL (10G)

55411-00A00

$1.49

14

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

15

PIN This part replaces 04111-30308.

04111-3030A

$1.49
