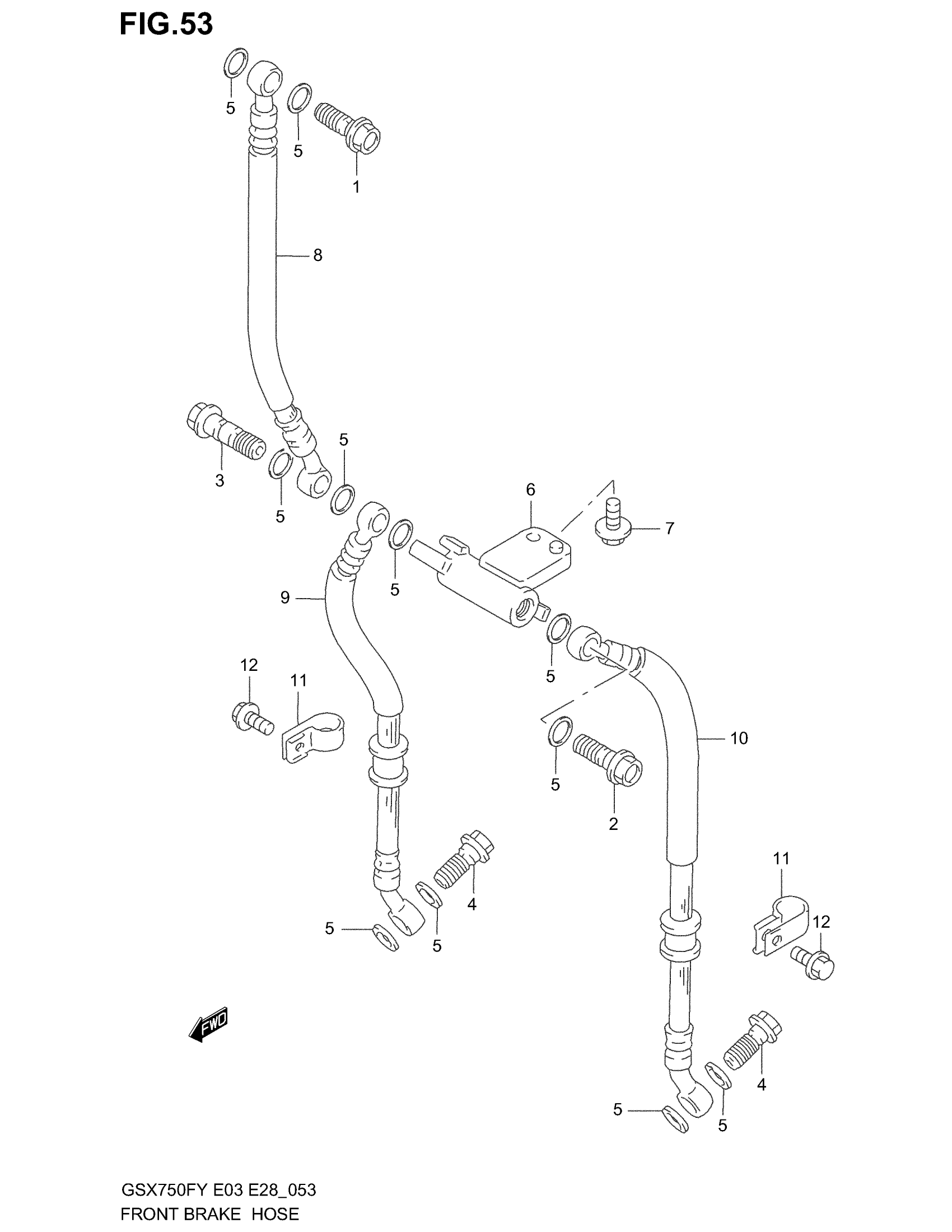

Suzuki GSX750F (2003) FRONT BRAKE HOSE Diagram

#

Description
Price

1

UNION This part replaces 09360-10041.

09360-10061

$6.43

2

UNION This part replaces 09360-10041.

09360-10061

$6.43

3

UNION This part replaces 09360-10043.

09360-10063

$7.85

4

UNION This part replaces 09360-10042.

09360-10062

$6.43

5

WASHER (10X15X1.5)

09161-10009

$1.84

6

JOINT, BRAKE HOSE

59491-17E00

Unavailable

7

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

8

HOSE COMP,FR,BR This part replaces 59480-08F10.

59480-08F11

$61.58

9

HOSE This part replaces 59240-08F00.

59240-08F02

$62.80

10

HOSE This part replaces 59440-08F00.

59440-08F02

Unavailable

11

CLAMP, BRAKE HOSE NO.2

59268-45D00

$11.30

12

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
