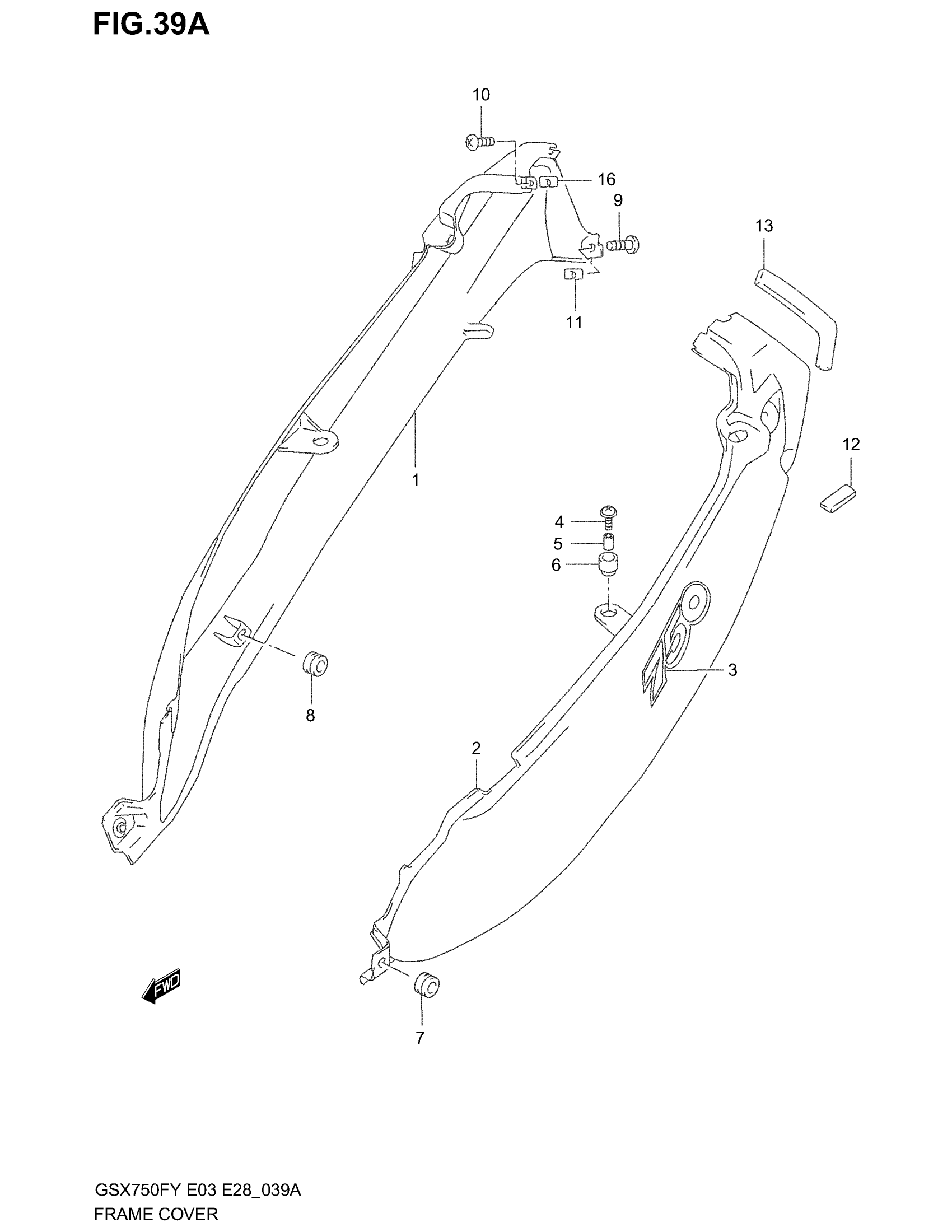

Suzuki GSX750F (2003) FRAME COVER (MODEL Y/K1) Diagram

#

Description
Price

1

COVER, FRAME RH (MAROON) | MODEL Y

47110-08F50-22U

Unavailable

1

COVER, FRAME RH (GRAY) | MODEL Y

47110-08F50-Y9E

Unavailable

1

COVER, FRAME RH (BLACK) | MODEL K1

47110-08F50-YFX

Unavailable

1

COVER, FRAME RH (GOLD) | MODEL K1

47110-08F50-YC7

Unavailable

2

COVER, FRAME LH (MAROON) | MODEL Y

47210-08F50-22U

Unavailable

2

COVER, FRAME LH (GRAY) | MODEL Y

47210-08F50-Y9E

Unavailable

2

COVER, FRAME LH (BLACK) | MODEL K1

47210-08F50-YFX

Unavailable

2

COVER, FRAME LH (GOLD) | MODEL K1; Includes Item(s) 3 - 3

47210-08F50-YC7

Unavailable

3

EMBLEM | MODEL Y FOR 22U

68131-08F50-BD2

Unavailable

3

EMBLEM | MODEL Y FOR Y9E

68131-08F50-BD3

Unavailable

3

EMBLEM | MODEL K1 FOR Y7L

68131-08F50-EG1

Unavailable

3

EMBLEM | MODEL K1 FOR YC7

68131-08F50-EG3

Unavailable

4

SCREW, UPPER

09136-06105

$1.97

5

SPACER

09180-06286

$2.50

6

CUSHION

09320-10045

$3.76

7

CUSHION, FRONT

09320-08028

$3.04

8

CUSHION, CENTER

09320-08018

$3.04

9

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

10

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

11

NUT

09148-05038

$1.97

12

CUSHION (10X30X2)

44894-24A00

$1.72

13

CUSHION

47161-08F00

Unavailable
