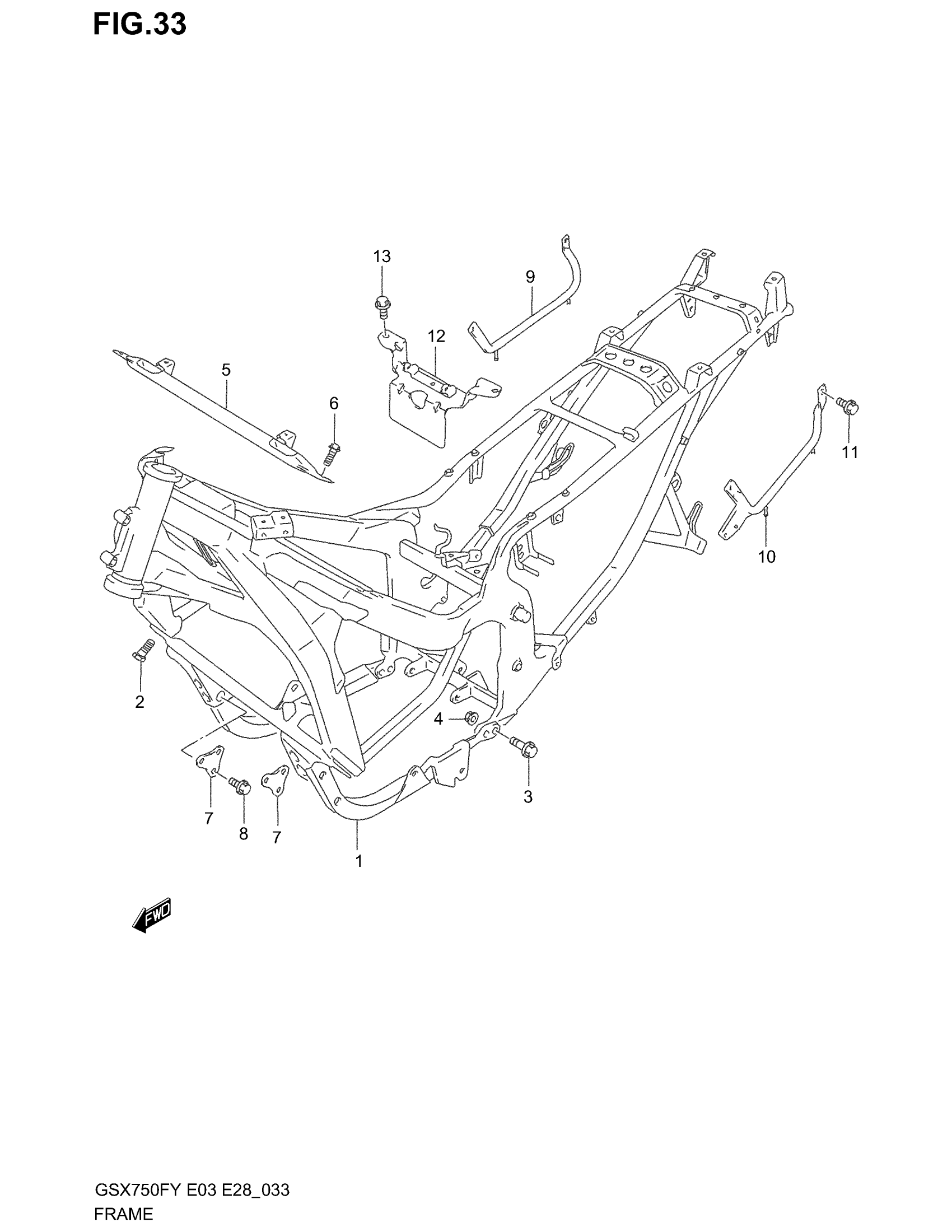

Suzuki GSX750F (2003) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL W/X/Y

41100-08FC0-019

Unavailable

1

FRAME (BLACK) | MODEL K1/K2

41100-08FK0-019

Unavailable

1

FRAME (BLACK) | MODEL K3

41100-08FL0-019

Unavailable

2

BOLT This part replaces 01570-08253.

01570-0825A

$3.15

3

BOLT This part replaces 01550-08303.

01550-0830A

$3.04

4

NUT This part replaces 08319-31083.

08319-3108A

$2.32

5

TUBE, FRAME BRIDGE

41750-34C00

Unavailable

6

BOLT

09103-08266

$2.71

7

PLATE, NO.1 (BLACK)

41911-19C00-019

Unavailable

8

BOLT This part replaces 01570-08163.

01570-0816A

$3.03

9

GRIP, REAR RH

43970-08F00

Unavailable

10

GRIP, REAR LH

43980-08F00

Unavailable

11

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

12

HOLDER, ELECTRIC PARTS

47410-08F01

Unavailable

13

BOLT This part replaces 01550-06163.

01550-0616A

$1.97
