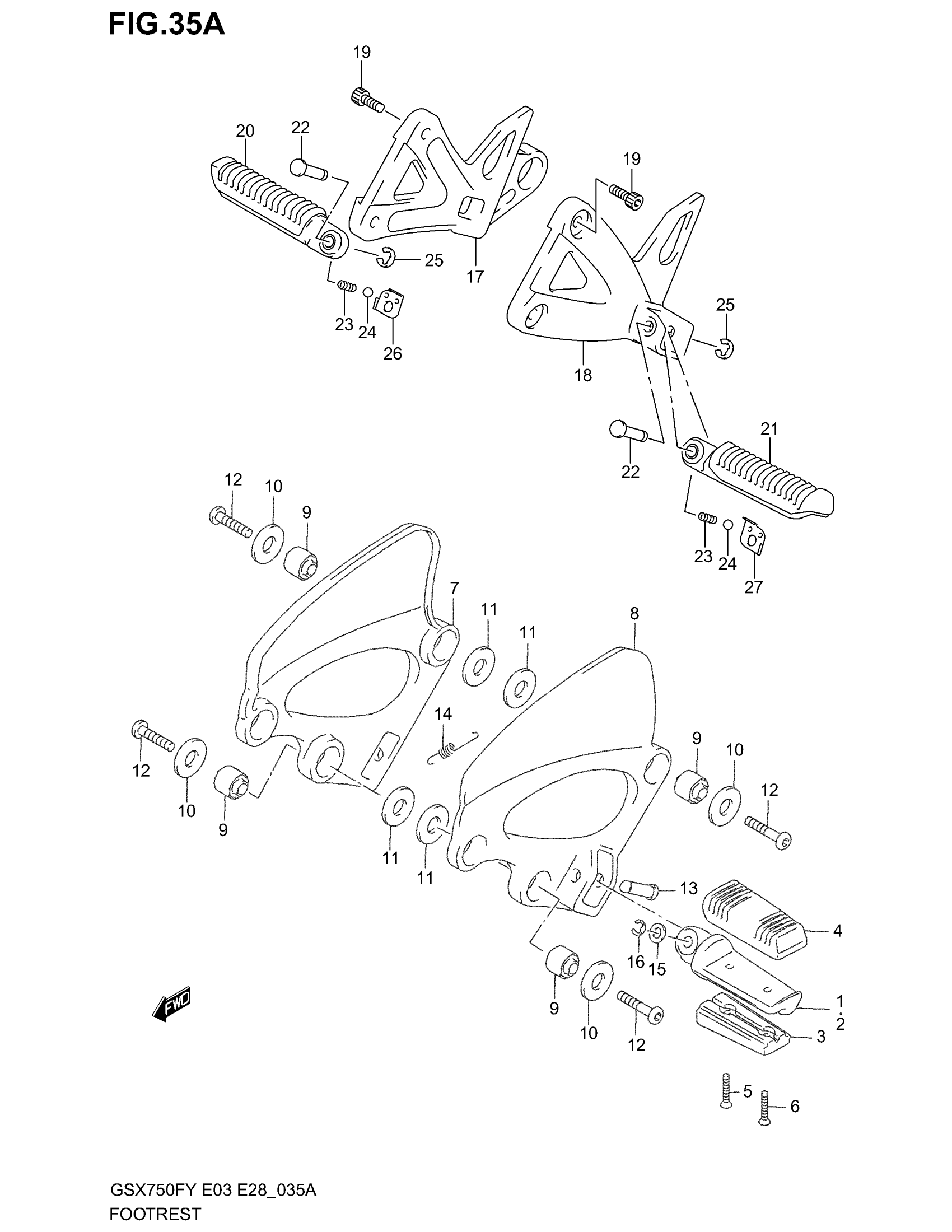

Suzuki GSX750F (2003) FOOTREST (MODEL K1/K2/K3) Diagram

#

Description
Price

1

FOOTREST ASSY, FRONT RH

43510-20C00

Unavailable

2

FOOTREST ASSY, FRONT LH

43520-20C00

$107.58

3

BAR, FRONT FOOTREST NO.2

43533-20C10

Unavailable

4

RUBBER

43550-48B10

$26.78

5

SCREW This part replaces 02122-05353.

02122-0535B

Unavailable

6

SCREW This part replaces 02122-05303.

02122-0530B

$2.30

7

HOLDER, FRONT FOOTREST RH

43517-08FA0

Unavailable

8

HOLDER, FRONT FOOTREST LH

43527-08FA0

$147.62

9

BUSH, HOLDER

09319-08045

$19.90

10

WASHER, HOLDER OUTER

09161-13004

$3.91

11

WASHER, HOLDER INNER

09161-17002

$4.60

12

BOLT

09106-08147

$6.25

13

PIN

09208-08010

$2.91

14

SPRING

09443-10037

Unavailable

15

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

16

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

17

BRACKET, PILLION RH

43811-08F00

Unavailable

18

BRACKET, PILLION LH

43821-08F00

Unavailable

19

BOLT, BRACKET

09106-08150

$3.42

20

BAR, PILLION FOOTREST RH

43610-20C01

$73.62

21

BAR, PILLION FOOTREST LH

43710-20C01

$73.62

22

PIN

09208-08011

$2.91

23

SPRING

09440-05005

$1.58

24

BALL

06111-07004

$1.49

25

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

26

PLATE, PILLION RH

43816-23E00

$5.70

27

PLATE, PILLION LH

43826-23E00

$6.70
