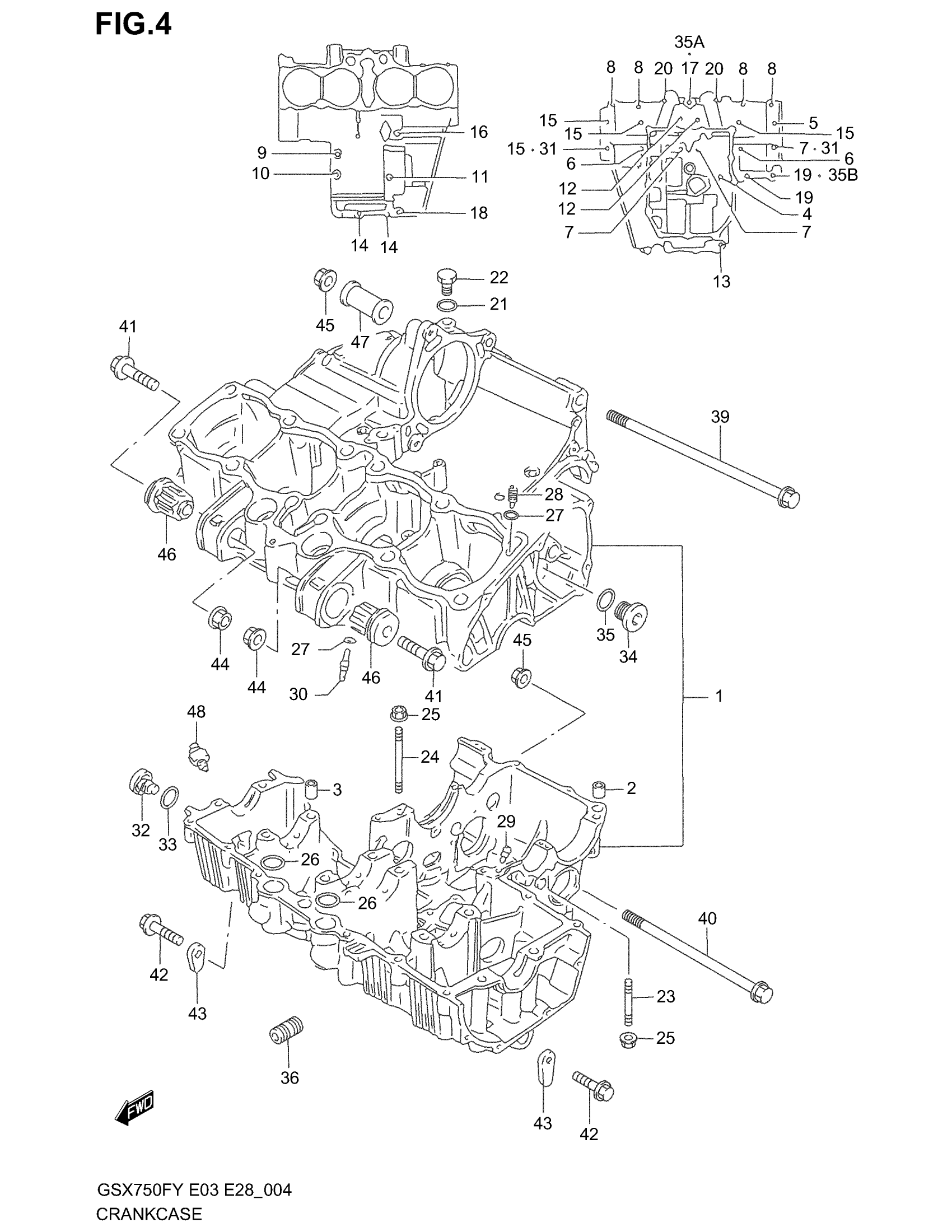

Suzuki GSX750F (2003) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL W/X/Y This part replaces 11301-19850.

11301-19851

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K1/K2/K3; Includes Item(s) 2 - 38 This part replaces 11301-19890.

11301-19893

Unavailable

2

PIN

09206-13004

$2.40

3

PIN

09206-11017

$6.30

4

BOLT (6X105)

09103-06163

Unavailable

5

BOLT (8X105)

09103-08097

$3.44

6

BOLT (8X125)

09103-08182

$5.72

7

BOLT (8X115)

09103-08098

$3.29

8

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

9

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.38

10

BOLT This part replaces 07130-06503.

07130-0650B

$4.10

11

BOLT This part replaces 07130-06653.

07130-0665B

$3.79

12

BOLT This part replaces 07130-08653.

07130-0865B

$5.27

13

BOLT This part replaces 01550-08603.

01550-0860A

$4.17

14

BOLT

01550-06407

$2.69

15

BOLT (8X95)

09103-08066

$3.93

16

BOLT This part replaces 01550-06803.

01550-0680B

$3.50

17

BOLT This part replaces 01550-06503.

01550-0650A

$2.85

18

BOLT This part replaces 01550-06603.

01550-0660A

$3.05

19

BOLT This part replaces 01550-06553.

01550-0655B

$3.30

20

BOLT This part replaces 01550-06703.

01550-0670B

$4.25

21

GASKET, HOLE PLUG

09168-12002

$1.59

22

PLUG, HOLE

09247-12103

$2.84

23

BOLT,STUD This part replaces 01421-06408.

01421-0640A

$2.38

24

BOLT,STUD This part replaces 01421-06608.

01421-0660A

$3.23

25

NUT This part replaces 08316-10063.

08316-1006B

$2.50

26

O RING (D:2.5,ID:21)

09280-21008

$1.91

27

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

28

JET, OIL GALY HEAD

09493-14002

Unavailable

29

JET, OIL GALY GEAR SHIFT

09493-24010

$16.87

30

JET, OIL GALY PISTON

09493-26007

Unavailable

31

GASKET

09168-08021

$2.61

32

PLUG This part replaces 09248-16003.

09248-16007

$9.96

33

O RING (D:2.4,ID:16.8)

09280-17002

$5.11

34

PLUG, OIL GALLERY

09248-14010

$5.50

35

GASKET

09168-14002

$2.26

35A

GASKET (5.8X13X1.2) | F.NO.Y2101378%

09168-06023

$2.35

35B

GASKET (5.8X13X1.2) | MODEL K1/K2/K3

09168-06023

$2.35

36

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$7.05

37

BEARING, THRUST RH (BROWN) | SEE ILLUSTRATION ON FIG.8(B-10)

12228-43414

$10.07

38

BEARING, THRUST LH (RED) | SEE ILLUSTRATION ON FIG.8(B-10)

12228-43411

Unavailable

38

BEARING, THRUST LH (BLACK)

12228-43412

Unavailable

38

BEARING, THRUST LH (BLUE)

12228-43413

Unavailable

38

BEARING, THRUST LH (GREEN)

12228-43414

$10.07

38

BEARING, THRUST LH (YELLOW)

12228-43415

Unavailable

38

BEARING, THRUST LH (WHITE)

12228-43416

Unavailable

39

BOLT (10X175)

09103-10151

$17.50

40

BOLT (10X130)

09103-10237

$9.68

41

BOLT This part replaces 01550-10553.

01550-1055B

$4.77

42

BOLT (10X55)

09103-10298

Unavailable

43

NUT

09159-10020

$5.18

44

NUT This part replaces 08316-10103.

08316-1010B

$2.66

45

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

46

BUSH,ENGINE MOU This part replaces 11681-06B00.

11681-06B01

$21.25

47

SPACER (L:27)

11610-20C00

$15.42

48

SWITCH ASSY,OIL PRESSURE | MODEL W/X/Y This part replaces 37820-33D00.

37820-33D11

$25.13

48

SWITCH ASSY,OIL PRESSURE | MODEL K1/K2/K3 This part replaces 37820-33D10.

37820-33D11

$25.13
