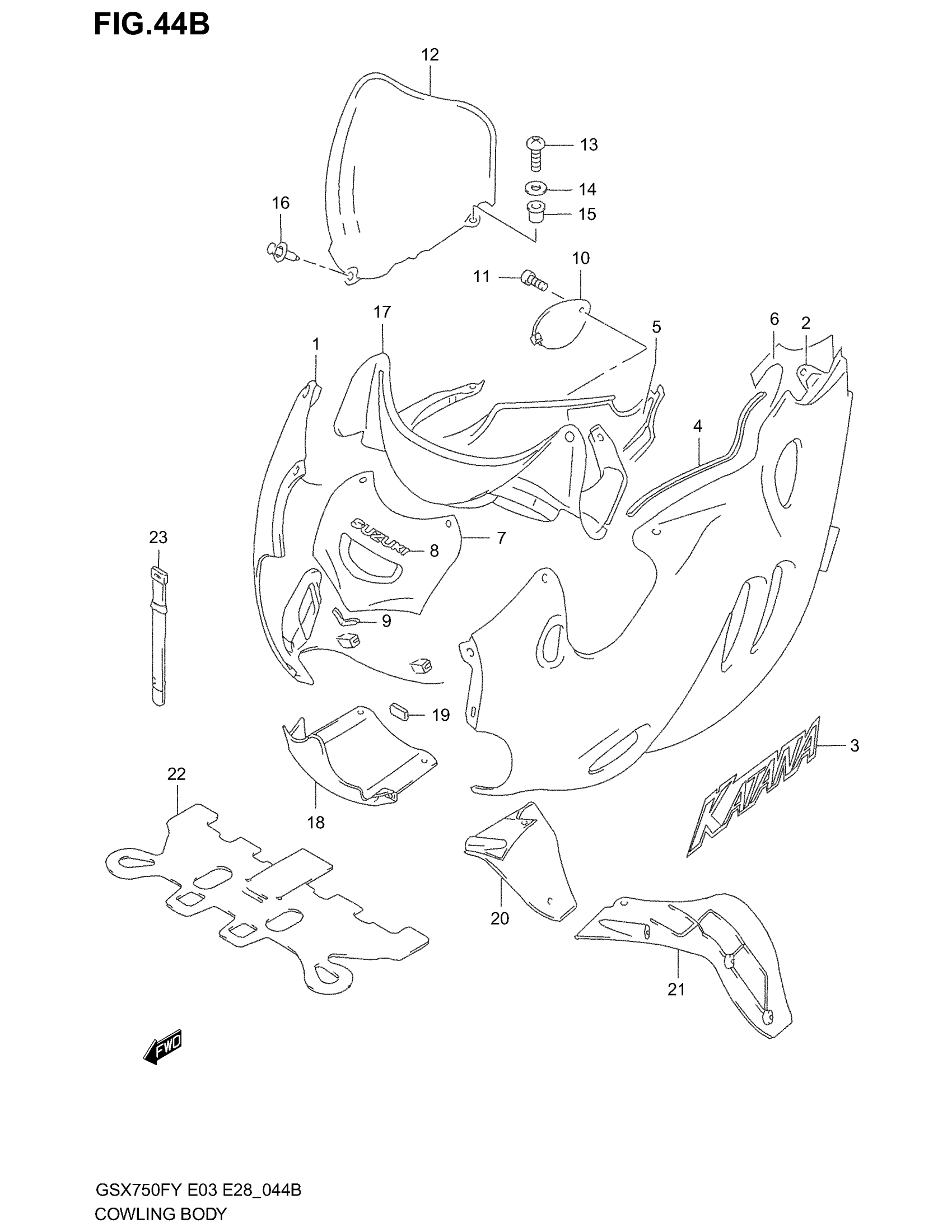

Suzuki GSX750F (2003) COWLING BODY (MODEL Y) Diagram

#

Description
Price

1

COWL ASSY, SIDE RH (MAROON)

94403-08F60-22U

Unavailable

1

COWL ASSY, SIDE RH (GRAY)

94403-08F60-Y9E

Unavailable

2

COWL ASSY, SIDE LH (MAROON)

94404-08F60-22U

Unavailable

2

COWL ASSY, SIDE LH (GRAY)

94404-08F60-Y9E

Unavailable

2

COWL ASSY, SIDE LH (MAROON) | E33

94404-08FA0-22U

Unavailable

2

COWL ASSY, SIDE LH (GRAY) | E33; Includes Item(s) 3 - 6

94404-08FA0-Y9E

Unavailable

3

EMBLEM, KATANA | FOR 22U

68681-08F30-BD4

Unavailable

3

EMBLEM, KATANA | FOR Y9E

68681-08F30-BD5

Unavailable

4

MOLDING

94631-44110

$36.85

5

SHIELD, SIDE RH

94439-08F00

Unavailable

6

SHIELD, SIDE LH

94449-08F00

Unavailable

7

PANEL, CENTER UPPER (MAROON)

94410-08F00-22U

Unavailable

7

PANEL, CENTER UPPER (GRAY) | Includes Item(s) 8 - 9

94410-08F00-Y9E

Unavailable

8

EMBLEM, SUZUKI (GOLD) | FOR 22U

68185-05C10-1KK

Unavailable

8

EMBLEM, SUKIKI (BLACK) | FOR Y9E

68185-05C10-019

Unavailable

9

CUSHION, UPPER

94413-08F00

$3.78

10

LID, OIL (MAROON)

94435-08F00-22U

Unavailable

10

LID, OIL (GRAY)

94435-08F00-Y9E

Unavailable

11

SCREW

09139-06030

$3.70

12

WIND SCREEN

94611-08F00

$270.57

13

SCREW

09139-05025

$2.05

14

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

15

NUT

09159-05019

$7.14

16

CLIP (BLACK)

09409-08308-5ES

$1.97

17

PANEL, METER

94421-08F00

Unavailable

18

PANEL, CENTER LOWER (MAROON)

94412-08F00-22U

Unavailable

18

PANEL, CENTER LOWER (GRAY)

94412-08F00-Y9E

Unavailable

19

CUSHION, UPPER This part replaces 94414-08F00.

94413-08F00

$3.78

20

PANEL, INNER RH (MAROON)

94461-08F00-22U

Unavailable

20

PANEL, INNER RH (GRAY)

94461-08F00-Y9E

Unavailable

21

PANEL, INNER LH (MAROON)

94462-08F00-22U

Unavailable

21

PANEL, INNER LH (GRAY)

94462-08F00-Y9E

Unavailable

22

PLATE, AIR GUIDE

94451-20C01

Unavailable

23

CLAMP (L:165)

09407-18402

$2.19

23

CLAMP (L:235)

09407-25401

$4.66
