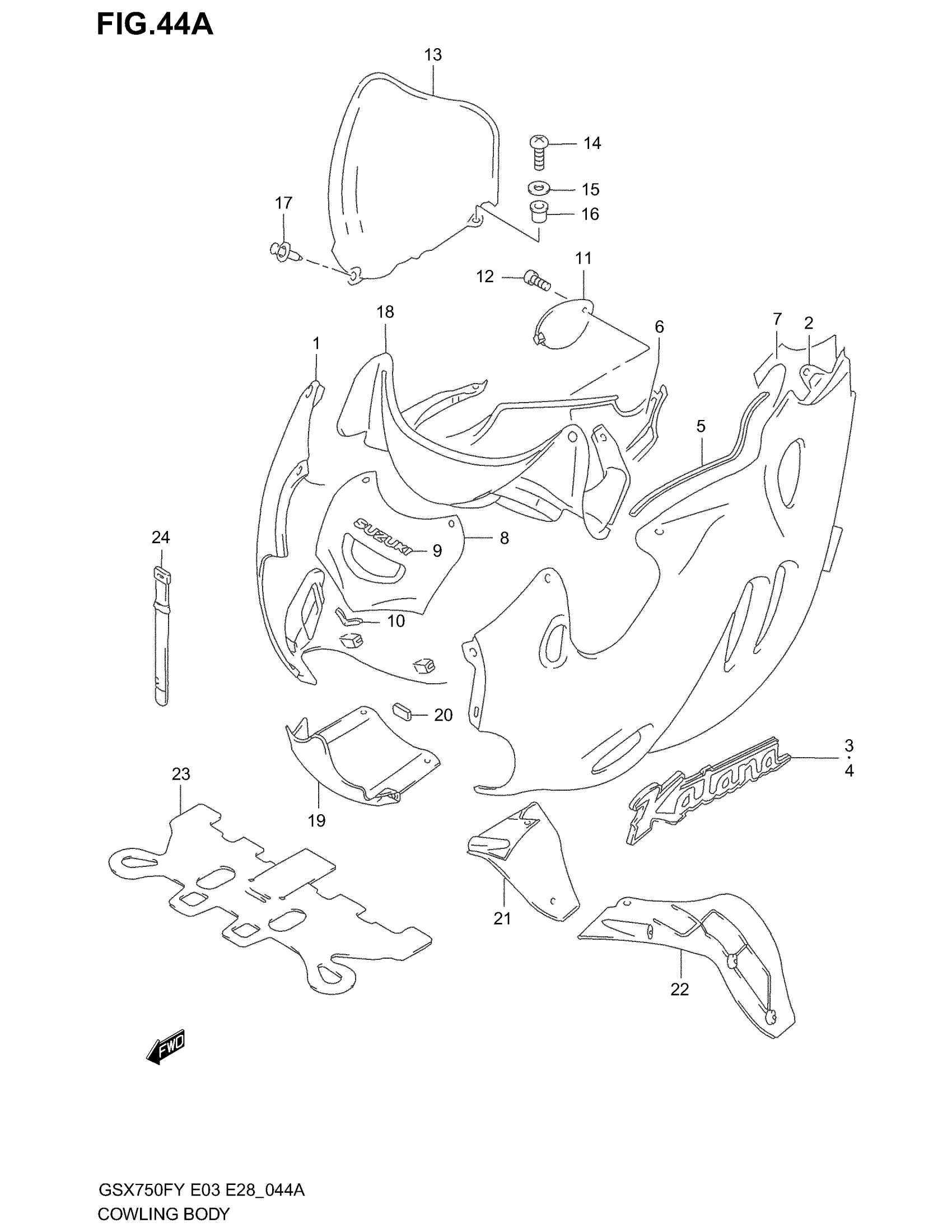

Suzuki GSX750F (2003) COWLING BODY (MODEL X) Diagram

#

Description
Price

1

COWL ASSY, SIDE RH (MAROON)

94403-08F40-Y4M

Unavailable

1

COWL ASSY, SIDE RH (BLUE)

94403-08F40-Y7H

Unavailable

2

COWL ASSY, SIDE LH (MAROON)

94404-08F40-Y4M

Unavailable

2

COWL ASSY, SIDE LH (BLUE)

94404-08F40-Y7H

Unavailable

2

COWL ASSY, SIDE LH (MAROON) | E33

94404-08F50-Y4M

Unavailable

2

COWL ASSY, SIDE LH (BLUE) | E33; Includes Item(s) 3 - 7

94404-08F50-Y7H

Unavailable

3

EMBLEM, KATANA RH

68681-08F00

Unavailable

4

EMBLEM, KATANA LH

68691-08F00

Unavailable

5

MOLDING

94631-44110

$36.85

6

SHIELD, SIDE RH

94439-08F00

Unavailable

7

SHIELD, SIDE LH

94449-08F00

Unavailable

8

PANEL, CENTER UPPER (MAROON)

94410-08F00-Y4M

Unavailable

8

PANEL, CENTER UPPER (BLUE) | Includes Item(s) 9 - 10

94410-08F00-Y7H

Unavailable

9

EMBLEM, SUZUKI (SILVER)

68185-05C10-20H

Unavailable

10

CUSHION, UPPER

94413-08F00

$3.78

11

LID, OIL (MAROON)

94435-08F00-Y4M

Unavailable

11

LID, OIL (BLUE)

94435-08F00-Y7H

Unavailable

12

SCREW

09139-06030

$3.70

13

WIND SCREEN

94611-08F00

$270.57

14

SCREW

09139-05025

$2.05

15

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

16

NUT

09159-05019

$7.14

17

CLIP (BLACK)

09409-08308-5ES

$1.97

18

PANEL, METER

94421-08F00

Unavailable

19

PANEL, CENTER LOWER (MAROON)

94412-08F00-Y4M

Unavailable

19

PANEL, CENTER LOWER (BLUE)

94412-08F00-Y7H

Unavailable

20

CUSHION, UPPER This part replaces 94414-08F00.

94413-08F00

$3.78

21

PANEL, INNER RH (MAROON)

94461-08F00-Y4M

Unavailable

21

PANEL, INNER RH (BLUE)

94461-08F00-Y7H

Unavailable

22

PANEL, INNER LH (MAROON)

94462-08F00-Y4M

Unavailable

22

PANEL, INNER LH (BLUE)

94462-08F00-Y7H

Unavailable

23

PLATE, AIR GUIDE

94451-20C01

Unavailable

24

CLAMP (L:165)

09407-18402

$2.19

24

CLAMP (L:235)

09407-25401

$4.66
