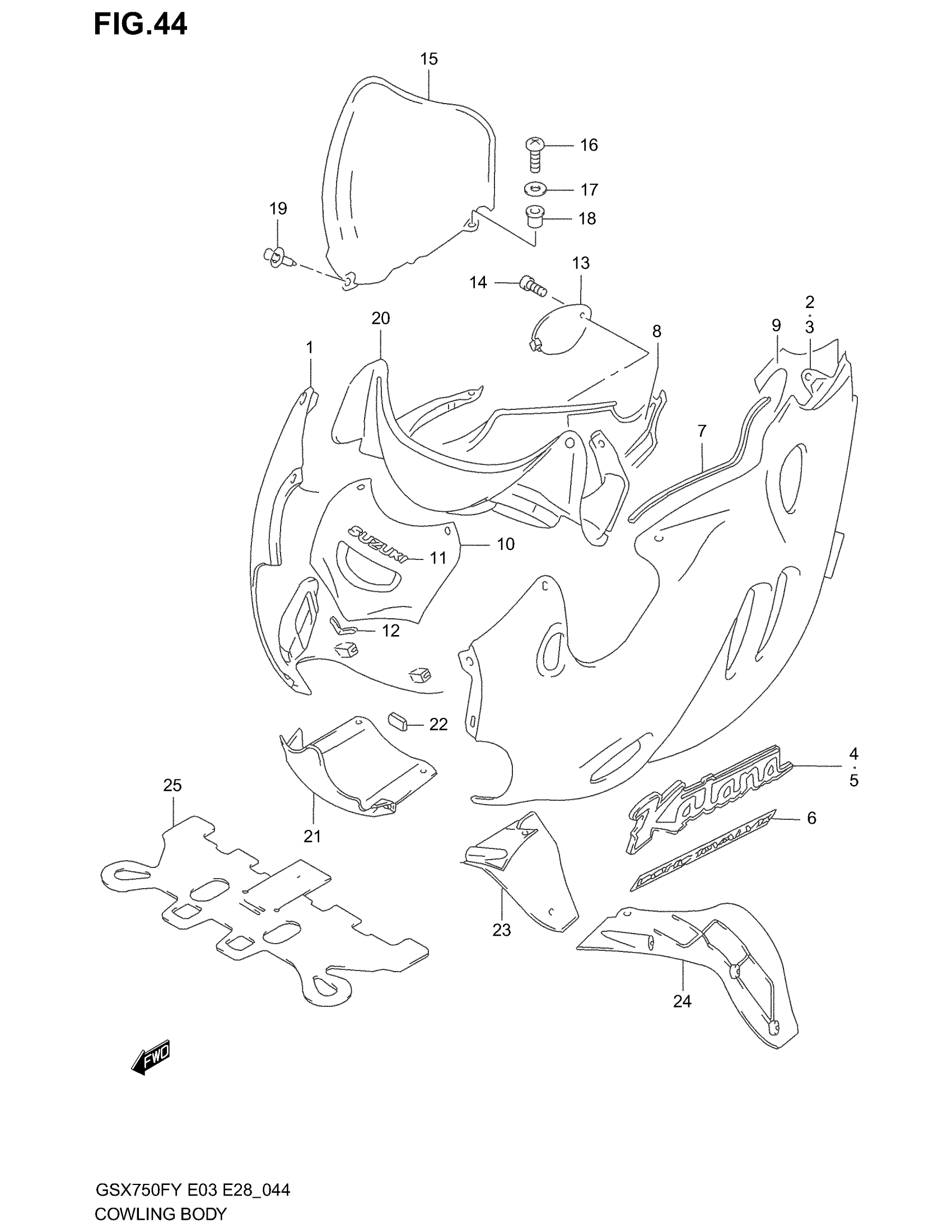

Suzuki GSX750F (2003) COWLING BODY (MODEL W) Diagram

#

Description
Price

1

COWL ASSY, SIDE RH (BLACK)

94403-08F10-33J

Unavailable

1

COWL ASSY, SIDE RH (MAROON)

94403-08F10-Y4M

Unavailable

2

COWL ASSY, SIDE LH (BLACK)

94404-08F10-33J

Unavailable

2

COWL ASSY, SIDE LH (MAROON)

94404-08F10-Y4M

Unavailable

3

COWL ASSY, SIDE LH (BLACK) | E33

94404-08F20-33J

Unavailable

3

COWL ASSY, SIDE LH (MAROON) | E33; Includes Item(s) 4 - 9

94404-08F20-Y4M

Unavailable

4

EMBLEM, KATANA RH

68681-08F00

Unavailable

5

EMBLEM, KATANA LH

68691-08F00

Unavailable

6

EMBLEM, SIDE | FOR 33J

68681-08F20-3EE

Unavailable

6

EMBLEM, SIDE | FOR Y4M

68681-08F20-K5Y

Unavailable

7

MOLDING

94631-44110

$36.85

8

SHIELD, SIDE RH

94439-08F00

Unavailable

9

SHIELD, SIDE LH

94449-08F00

Unavailable

10

PANEL,COWLING C This part replaces 94410-08F00-33J.

94411-08F00

$33.18

10

PANEL, CENTER UPPER (MAROON) | Includes Item(s) 11 - 12

94410-08F00-Y4M

Unavailable

11

EMBLEM, SUZUKI (SILVER)

68185-05C10-20H

Unavailable

12

CUSHION, UPPER

94413-08F00

$3.78

13

LID, OIL (BLACK)

94435-08F00-33J

Unavailable

13

LID, OIL (MAROON)

94435-08F00-Y4M

Unavailable

14

SCREW

09139-06030

$3.70

15

WIND SCREEN

94611-08F00

$270.57

16

SCREW

09139-05025

$2.05

17

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

18

NUT

09159-05019

$7.14

19

CLIP (BLACK)

09409-08308-5ES

$1.97

20

PANEL, METER

94421-08F00

Unavailable

21

PANEL, CENTER LOWER (BLACK)

94412-08F00-33J

Unavailable

21

PANEL, CENTER LOWER (MAROON)

94412-08F00-Y4M

Unavailable

22

CUSHION, UPPER This part replaces 94414-08F00.

94413-08F00

$3.78

23

PANEL, INNER RH This part replaces 94461-08F00-33J.

94461-08F10

Unavailable

23

PANEL, INNER RH (MAROON)

94461-08F00-Y4M

Unavailable

24

PANEL, INNER LH This part replaces 94462-08F00-33J.

94462-08F10

Unavailable

24

PANEL, INNER LH (MAROON)

94462-08F00-Y4M

Unavailable

25

PLATE, AIR GUIDE

94451-20C01

Unavailable
