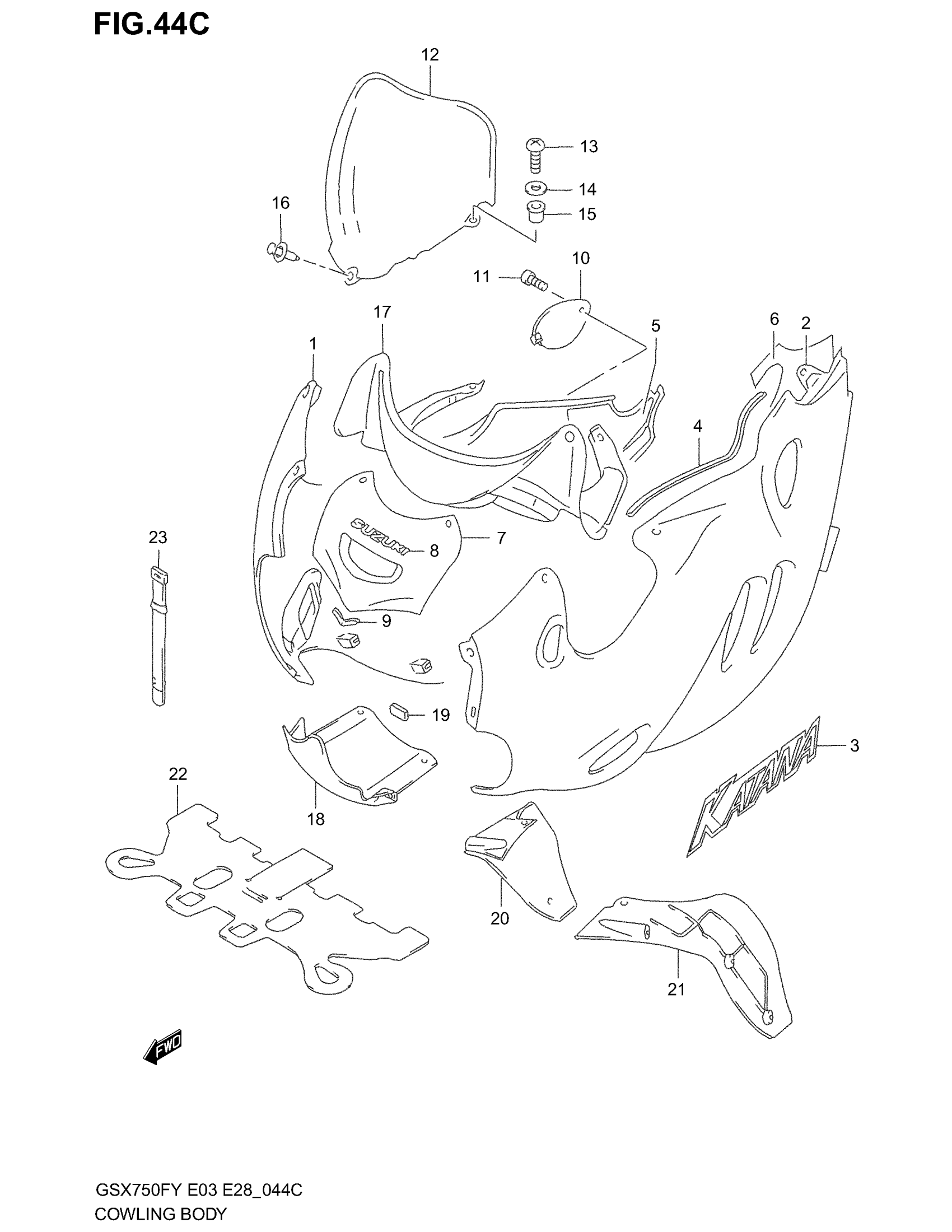

Suzuki GSX750F (2003) COWLING BODY (MODEL K1) Diagram

#

Description
Price

1

COWL ASSY, SIDE RH (BLACK)

94403-08FG0-Y7L

Unavailable

1

COWL ASSY, SIDE RH (GOLD)

94403-08FG0-YC7

Unavailable

2

COWL ASSY, SIDE LH (BLACK)

94404-08FG0-Y7L

Unavailable

2

COWL ASSY, SIDE LH (GOLD)

94404-08FG0-YC7

Unavailable

2

COWL ASSY, SIDE LH (BLACK) | E33

94404-08FH0-Y7L

Unavailable

2

COWL ASSY, SIDE LH (GOLD) | E33; Includes Item(s) 3 - 6

94404-08FH0-YC7

Unavailable

3

EMBLEM, KATANA | FOR Y7L

68681-08F50-EF7

Unavailable

3

EMBLEM, KATANA | FOR YC7

68681-08F50-EF9

Unavailable

4

MOLDING

94631-44110

$36.85

5

SHIELD, SIDE RH

94439-08F00

Unavailable

6

SHIELD, SIDE LH

94449-08F00

Unavailable

7

PANEL, CENTER UPPER (BLACK)

94410-08F00-Y7L

Unavailable

7

PANEL, CENTER UPPER (GOLD) | Includes Item(s) 8 - 9

94410-08F00-YC7

Unavailable

8

EMBLEM, SUZUKI (SILVER) | FOR Y7L

68185-05C10-20H

Unavailable

8

EMBLEM, SUKIKI (BLACK) | FOR YC7

68185-05C10-Y7L

Unavailable

9

CUSHION, UPPER

94413-08F00

$3.78

10

LID, OIL (BLACK)

94435-08F00-Y7L

Unavailable

10

LID, OIL (GOLD)

94435-08F00-YC7

Unavailable

11

SCREW

09139-06030

$3.70

12

WIND SCREEN

94611-08F00

$270.57

13

SCREW

09139-05025

$2.05

14

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

15

NUT

09159-05019

$7.14

16

CLIP (BLACK)

09409-08308-5ES

$1.97

17

PANEL, METER

94421-08F00

Unavailable

18

PANEL,COWL CENT This part replaces 94412-08F00-Y7L.

94412-08F00

Unavailable

18

PANEL, CENTER LOWER (GOLD)

94412-08F00-YC7

Unavailable

19

CUSHION, UPPER This part replaces 94414-08F00.

94413-08F00

$3.78

20

PANEL, INNER RH (BLACK)

94461-08F00-Y7L

Unavailable

20

PANEL, INNER RH (GOLD)

94461-08F00-YC7

Unavailable

21

PANEL, INNER LH (BLACK)

94462-08F00-Y7L

Unavailable

21

PANEL, INNER LH (GOLD)

94462-08F00-YC7

Unavailable

22

PLATE, AIR GUIDE

94451-20C01

Unavailable

23

CLAMP (L:165)

09407-18402

$2.19

23

CLAMP (L:235)

09407-25401

$4.66
