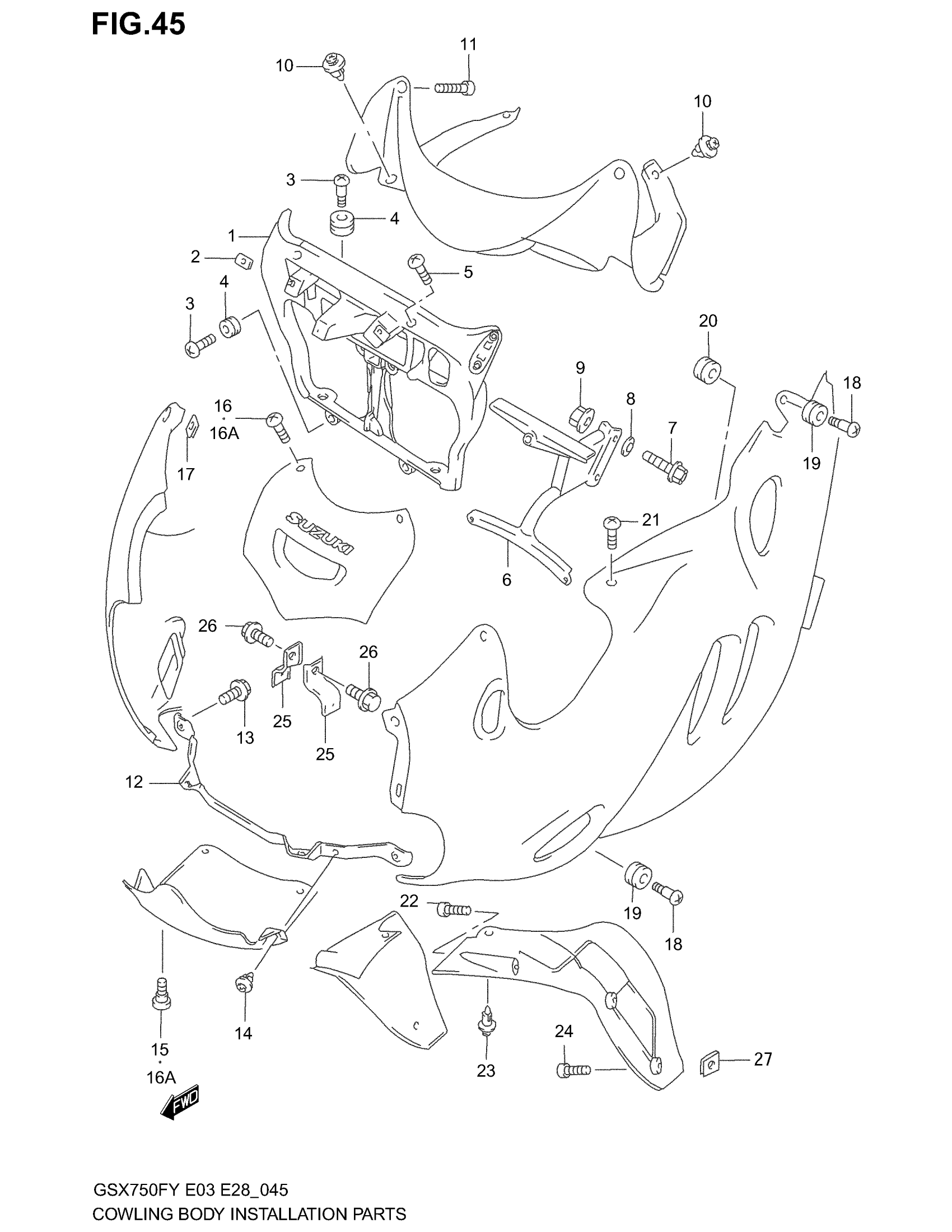

Suzuki GSX750F (2003) COWLING BODY INSTALLATION PARTS Diagram

#

Description
Price

1

BRACE, COWLING FRONT

94520-08F00

$304.17

2

NUT COWL | MODEL W/X This part replaces 94484-32B00.

94484-24F00

$4.03

2

NUT COWL | MODEL Y/K1/K2/K3

94484-24F00

$4.03

3

SCREW | MODEL W/X/Y/K1/K2 This part replaces 09139-06087.

09139-06126

$4.04

3

SCREW | MODEL K3

09139-06126

$4.04

4

CUSHION

09320-09016

$1.97

5

SCREW This part replaces 02142-05163.

02142-0516A

$1.49

6

BRACE, COWLING REAR | MODEL W/X/Y/K1/K2 This part replaces 94510-08F00.

94510-08F10

$117.13

6

BRACE, COWLING REAR | MODEL K3

94510-08F10

$117.13

7

BOLT

09103-08222

$2.85

8

WASHER

09164-08020

$2.06

9

NUT This part replaces 08316-10083.

08316-1008B

$2.66

10

CLIP, METER PANEL (BLACK)

09409-08308-5ES

$1.97

11

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

12

BRACKET, CENTER LOWER

94540-08F00

Unavailable

13

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

14

CLIP (BLACK)

09409-06322-5PK

$3.10

15

SCREW | MODEL W/X

09139-05025

$2.05

16

SCREW, CENTER UPPER PANEL | MOODEL W/X

09139-05025

$2.05

16A

SCREW, CENTER PANEL | MODEL Y/K1/K2/K3

09139-05042

$2.90

17

NUT, METER PANEL UPPER

09148-05038

$1.97

18

SCREW | MODEL W/X/Y/K1/K2 This part replaces 09139-06087.

09139-06126

$4.04

18

SCREW, SIDE COWLING | MODEL K3

09139-06126

$4.04

19

CUSHION

09320-09016

$1.97

20

CUSHION, CENTER

09320-08018

$3.04

21

SCREW, METER PANEL REAR

09139-05054

$4.24

22

SCREW, INNER PANEL UPPER

09136-04003

$3.15

23

CLIP, INNER PANEL

09409-08308-5ES

$1.97

24

SCREW | MODEL W/X/Y This part replaces 03541-15163.

03541-1516A

$2.06

24

SCREW | MODEL K1/K2/K3 This part replaces 02142-15163.

02142-1516A

$1.84

25

BRACKET, SIDE LOWER

94530-08F00

Unavailable

26

BOLT | MODEL W This part replaces 09116-06039.

09116-06109

$3.00

26

BOLT | MODEL X/Y/K1/K2/K3

09116-06109

$3.00

27

NUT | MODEL X/Y/K1/K2/K3

09148-05038

$1.97
