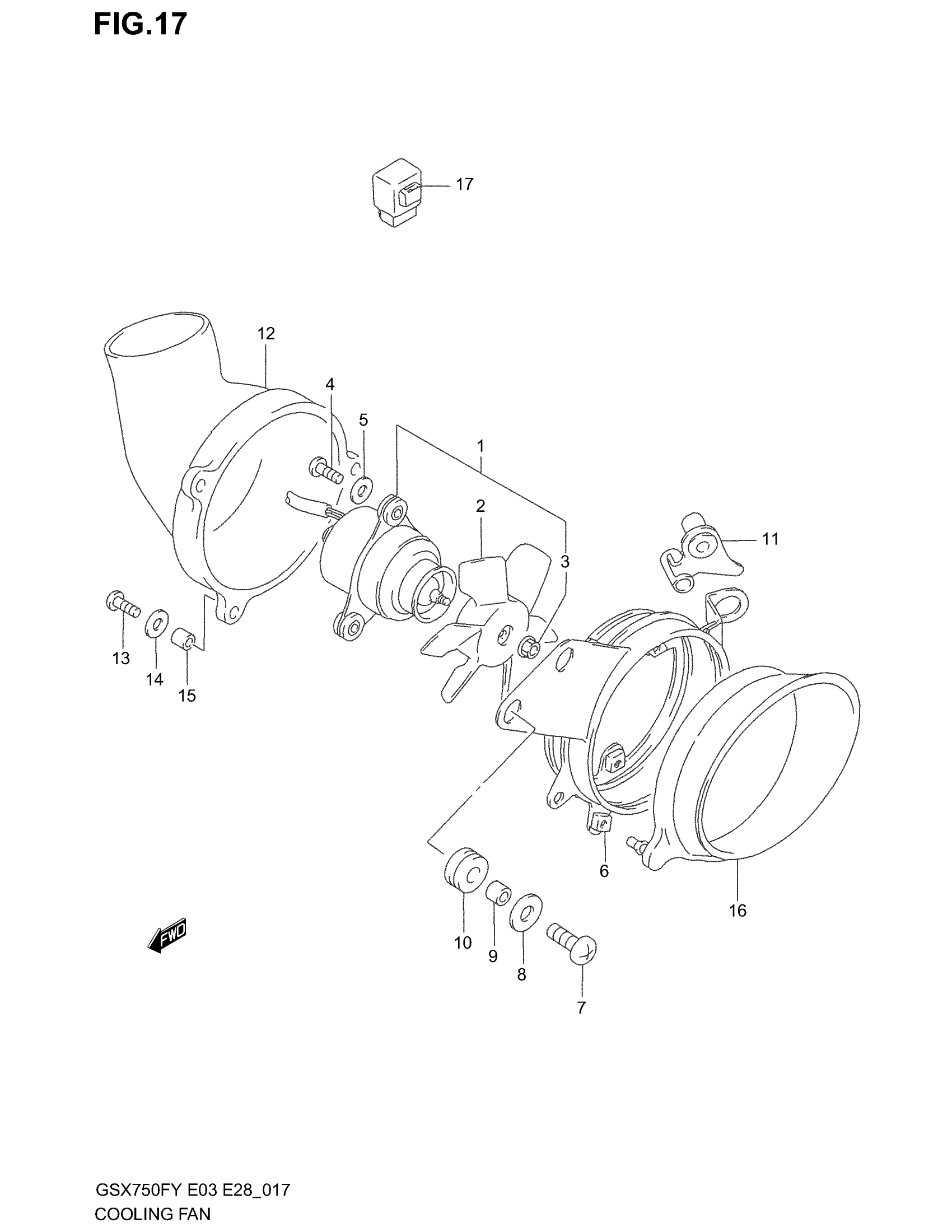

Suzuki GSX750F (2003) COOLING FAN (E33) Diagram

#

Description
Price

1

FAN ASSY, COOLING | Includes Item(s) 2 - 3

17100-48B00

Unavailable

2

FAN

17120-48B00

Unavailable

3

NUT

08316-10033

Unavailable

4

SCREW This part replaces 02112-04163.

02112-0416A

$1.49

5

WASHER

09160-04022

$2.15

6

SHROUD, FAN

17250-20C00

Unavailable

7

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

8

WASHER

09160-06056

$1.72

9

SPACER

09180-06257

$2.83

10

CUSHION

09320-09036

$4.32

11

BRACKET, FAN SHROUD

17260-20C00

Unavailable

12

DUCT, FAN COOLING,NO.1

17271-20C00

Unavailable

13

SCREW This part replaces 02112-04123.

02112-0412A

$1.49

14

WASHER

09160-04022

$2.15

15

SPACER

09180-04301

Unavailable

16

DUCT, FAN COOLING,NO.2

17272-08F00

Unavailable

17

CONTROLLER ASSY, FAN MOTOR

38870-48B00

Unavailable
