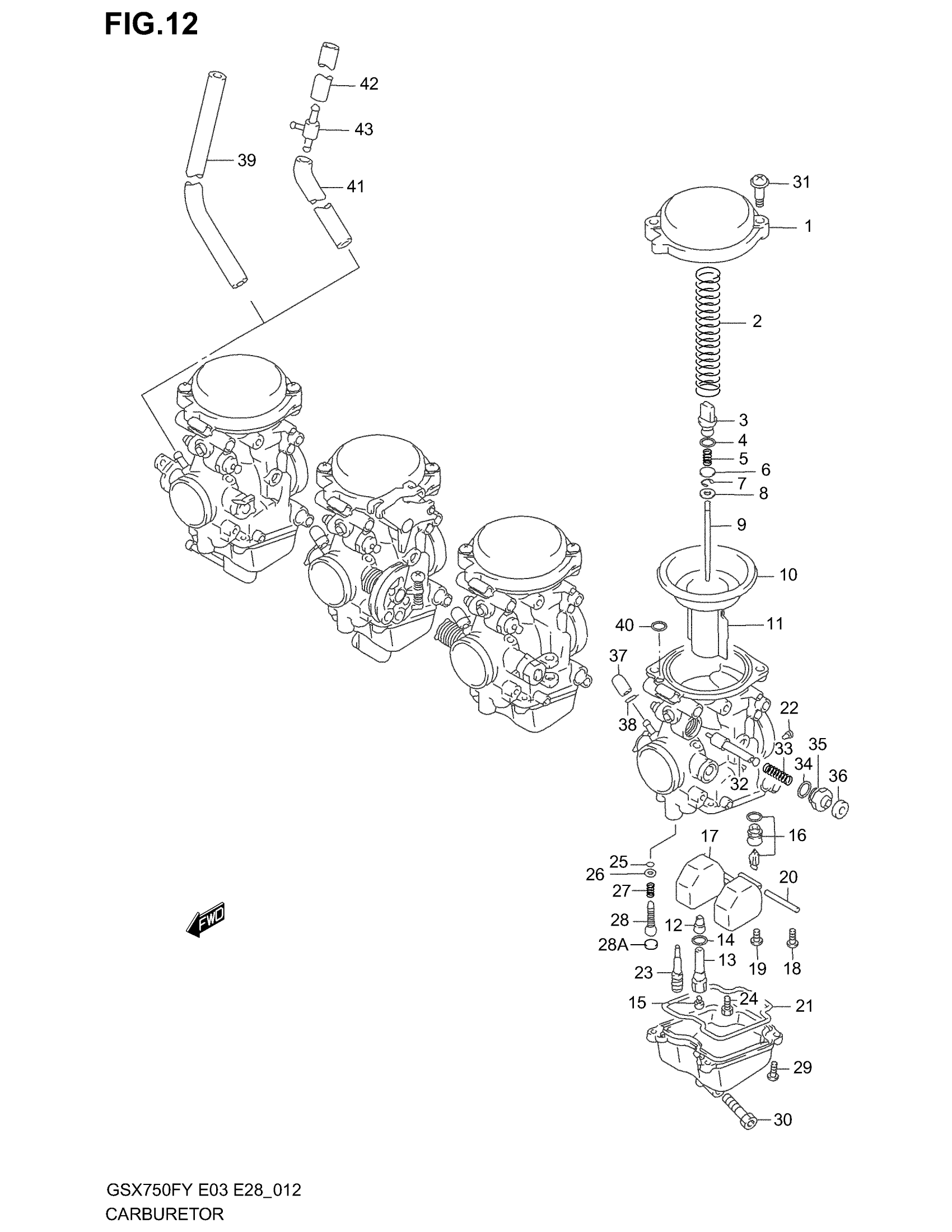

Suzuki GSX750F (2003) CARBURETOR Diagram

CARBURETOR ASSY, LH | MODEL W/X/Y This part replaces 13201-08F30.

13201-08F31

Unavailable

CARBURETOR ASSY, LH | MODEL K1/K2/K3

13201-08F31

Unavailable

CARBURETOR ASSY, LH | MODEL W/X/Y E33 This part replaces 13201-08F40.

13201-08F41

Unavailable

CARBURETOR ASSY, LH | MODEL K1/K2/K3 E33

13201-08F41

Unavailable

CARBURETOR ASSY, ML | MODEL W/X/Y This part replaces 13202-08F30.

13202-08F31

Unavailable

CARBURETOR ASSY, ML | MODEL K1/K2/K3

13202-08F31

Unavailable

CARBURETOR ASSY, ML | MODEL W/X/Y E33 This part replaces 13202-08F40.

13202-08F41

Unavailable

CARBURETOR ASSY, ML | MODEL K1/K2/K3 E33

13202-08F41

Unavailable

CARBURETOR ASSY, MR | MODEL W/X/Y This part replaces 13203-08F30.

13203-08F31

Unavailable

CARBURETOR ASSY, MR | MODEL K1/K2/K3

13203-08F31

Unavailable

CARBURETOR ASSY, MR | MODEL W/X/Y E33 This part replaces 13203-08F40.

13203-08F41

Unavailable

CARBURETOR ASSY, MR | MODEL K1/K2/K3 E33

13203-08F41

Unavailable

CARBURETOR ASSY, RH | MODEL W/X/Y This part replaces 13204-08F30.

13204-08F31

Unavailable

CARBURETOR ASSY, RH | MODEL K1/K2/K3

13204-08F31

Unavailable

CARBURETOR ASSY, RH | MODEL W/X/Y E33 This part replaces 13204-08F40.

13204-08F41

Unavailable

CARBURETOR ASSY, RH | MODEL K1/K2/K3 E33; Includes Item(s) 1 - 43

13204-08F41

Unavailable

DIAPHRAGM COVER

13502-08F00

$51.32

SPRING

13573-33E00

$10.67

HOLDER

13418-33E00

$5.68

O RING

09280-05004

$2.11

SPRING

13481-33E00

$3.70

WASHER

13382-19E00

$3.56

E RING, MULTIPLE JET NOZZLE

13394-17E60

$1.80

RING | MODEL W/X/Y This part replaces 13387-33E00.

13387-44030

$5.83

RING | MODEL K1/K2/K3

13387-44030

$5.83

NEEDLE, JET (5DF21-53-1)

13383-08F30

Unavailable

NEEDLE, JET (5DF22-53-1) | E33

13383-08F40

Unavailable

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

$29.60

VALVE, PISTON

13501-08F00

$75.28

JET, NEEDLE (P-0M)

09494-00921

$42.71

HOLDER, JET

13385-08F00

$35.45

.O RING This part replaces 13246-43010.

13246-43011

$4.34

JET, MAIN (117.5)

09491-23019

$12.57

VALVE ASSY,NEED | MODEL W/X/Y This part replaces 13370-08F00.

13370-08F51

$92.70

VALVE ASSY,NEED | MODEL K1/K2/K3 This part replaces 13370-08F50.

13370-08F51

$92.70

FLOAT ASSY

13250-04F00

$34.73

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

SCREW

13602-05A10

$3.56

.PIN, FLOAT

13254-01010

$3.62

GASKET

13258-04F00

$9.89

JET, PILOT AIR (140)

09493-28013

Unavailable

JET, PILOT AIR (130) | E33

09492-26002

Unavailable

JET, PILOT (15)

09492-12008

$14.26

JET, STARTER (50)

09491-50006

$12.63

O-RING This part replaces 13295-29900.

13295-29901

$4.34

WASHER

13291-29900

$1.98

SPRING,THROTTLE SCREW

13268-48700

$4.34

ADJUSTER (3,0)

13279-33E00

$12.48

ADJUSTER (3,1/2) | E33

13279-33E00

$12.48

PLUG

13281-05A00

$4.60

SCREW

02112-04107

$1.55

SCREW, DRAIN | MODEL W/X/Y This part replaces 13247-13A00.

13247-02340

$4.99

SCREW, DRAIN | MODEL K1/K2

13247-02340

$4.99

SCREW, DRAIN | MODEL K3 This part replaces 13247-13A00.

13247-02340

$4.99

SCREW

13247-33E00

$2.92

PLUNGER

13411-05300

$24.17

SPRING

13417-26D00

$6.08

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

.HOLDER, GUIDE

13418-44080

$10.00

.CAP, STARTER VALVE

13682-31210

$4.37

CAP | LH,ML,MR

13274-84000

$3.82

CLIP | LH,ML,MR

09401-06101

$2.03

HOSE | RH MODEL W/X E3,E28 This part replaces 13683-19E10.

13684-02F10

Unavailable

HOSE | RH MODEL Y/K1/K2 E3,E28

13684-02F10

Unavailable

HOSE,5X10X600 | RH,600!400 MODEL K3 E3,E28 This part replaces 09355-50105-600.

44421-13ER0

$10.06

O RING

13295-33010

$4.48

HOSE | MODEL W/X E33 This part replaces 13683-19E40.

13684-02F10

Unavailable

HOSE | MODEL Y/K1/K2 E33

13684-02F10

Unavailable

HOSE | L:600!225 MODEL K3 E33

09352-50901-600

$8.06

HOSE | E33

13683-19E30

Unavailable

.HOSE | L:600!175 MODEL K3 E33 This part replaces 09352-50903-600.

09352-50006-600

$7.48

.NIPPLE | E33

13685-48B00

$12.15
