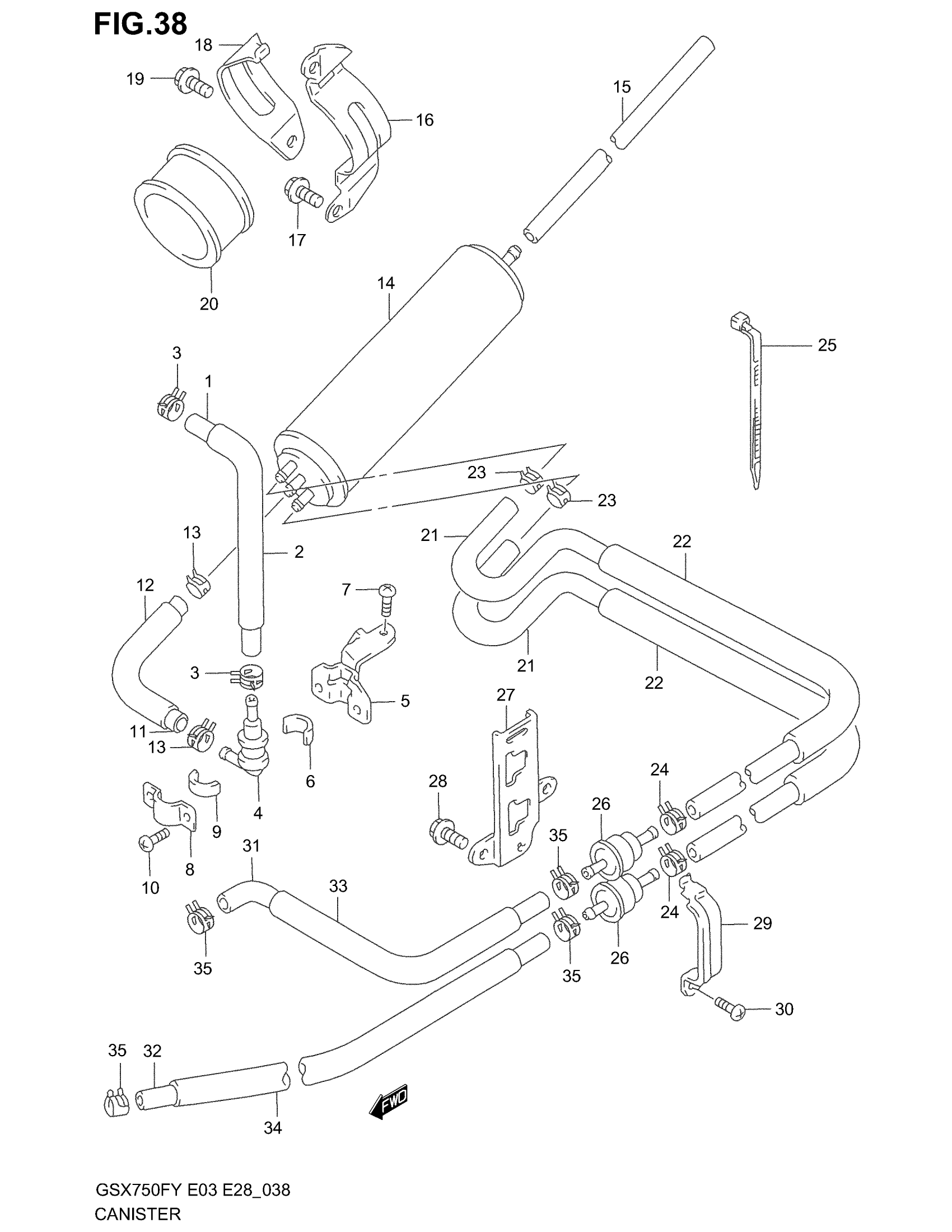

Suzuki GSX750F (2003) CANISTER (E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE | L:600!540

09355-54116-600

$12.06

2

PROTECTOR | L:600!450

09351-14152-600

$10.62

3

CLIP

09401-11413

$2.26

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

BRACKET, BREATHER VALVE | Includes Item(s) 6

44890-08F00

Unavailable

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

8

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 9

44892-24A00

$4.52

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

11

HOSE, VALVE & CANISTER

44436-08F00

Unavailable

12

PROTECTOR | L:600!460

09351-14152-600

$10.62

13

CLIP

09401-11413

$2.26

14

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

15

HOSE,6.5X11.5X6 | L:600!500 This part replaces 09355-70125-600.

44421-12FR0

$12.33

16

BRACKET, CANISTER

44880-08F00

Unavailable

17

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

18

HOLDER, CANISTER

44882-08F00

Unavailable

19

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

20

CUSHION CANISTER

44883-26E00

Unavailable

21

HOSE, PURGE

44437-08F00

Unavailable

22

PROTECTOR | L:600!160

09351-14152-600

$10.62

23

CLIP

09401-12404

$2.34

24

CLIP

09401-11413

$2.26

25

CLAMP

09407-14403

$2.26

26

VALVE, PURGE

44250-48B00

Unavailable

27

BRACKET, PURGE VALVE

44885-08F00

Unavailable

28

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

29

HOLDER, PURGE VALVE

44884-31E00

Unavailable

30

SCREW This part replaces 02112-05083.

02112-0508A

$1.49

31

HOSE, CARB & PURGE NO.1

44430-08F10

Unavailable

32

HOSE, CARB & PURGE NO.2

44430-08F20

Unavailable

33

PROTECTOR, NO.1 | L:600!580

09351-14152-600

$10.62

34

PROTECTOR, NO.2 | L:2000!660

09351-14152-00B

Unavailable

35

CLIP

09401-11413

$2.26
