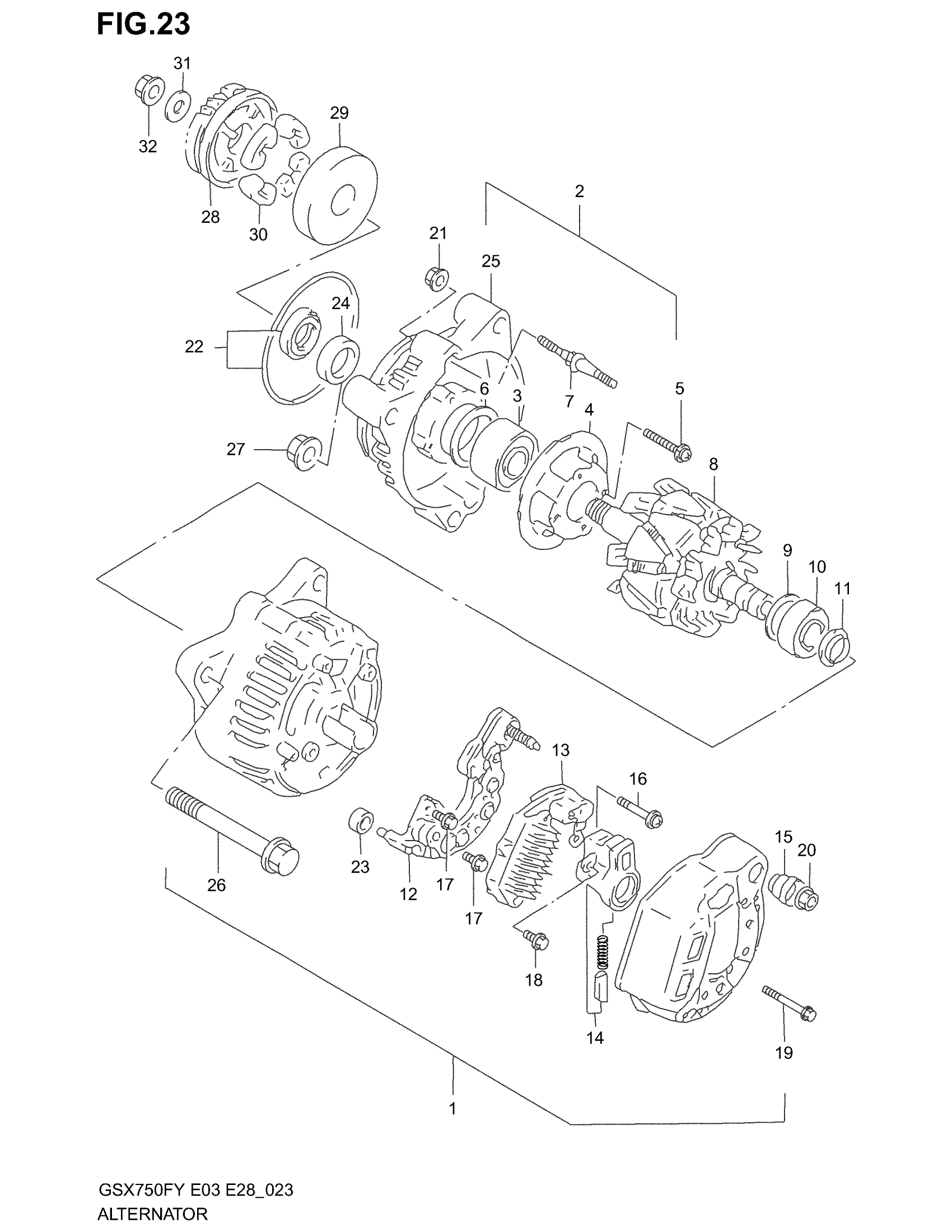

Suzuki GSX750F (2003) ALTERNATOR Diagram

#

Description
Price

1

ALTERNATOR ASSY | MODEL W/X/Y This part replaces 31400-03F01.

31400-03F40

Unavailable

1

ALTERNATOR ASSY | MODEL K1/K2/K3; Includes Item(s) 2 - 25 This part replaces 31400-03F03.

31400-03F40

Unavailable

2

FRAME, DRIVE END

31580-03F00

Unavailable

3

BEARING

31612-06B00

Unavailable

4

RETAINER

31585-03F00

Unavailable

5

SCREW (4X14)

31586-03F00

Unavailable

6

COVER, BEARING

31613-48B00

Unavailable

7

STUD BOLT

31587-85250

Unavailable

8

ROTOR ASSY

31710-03F00

Unavailable

9

COVER, BEARING

31613-82610

Unavailable

10

BEARING

31612-48B00

$47.07

11

COVER, NO.2

31613-27A10

Unavailable

12

HOLDER, RECTIFIER

31621-03F00

Unavailable

13

REGULATOR ASSY | MODEL W/X/Y This part replaces 32500-03F00.

32500-03F11

$215.95

13

REGULATOR ASSY | MODEL K1/K2/K3 This part replaces 32500-03F10.

32500-03F11

$215.95

14

HOLDER, BRUSH

31656-03F00

Unavailable

15

INSULATOR, TERMINAL

31514-85250

Unavailable

16

SCREW This part replaces 02112-34253.

02112-3425B

$3.08

17

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

18

SCREW

02112-04087

$1.49

19

SCREW This part replaces 02112-04253.

02112-0425B

$2.34

20

NUT This part replaces 08361-15063.

08361-1506A

$1.93

21

NUT This part replaces 08316-10053.

08316-1005A

$2.19

22

SERVICE KIT, A | FOR O RING

31780-27X50

$53.82

23

SERVICE KIT, B | MODEL W/X/Y FOR DAMPER RUBBER This part replaces 31780-03F01.

31780-03F02

Unavailable

23

SERVICE KIT, B | MODEL K1/K2/K3,FOR DAMPER RUBBER

31780-03F02

Unavailable

24

SPACER

31776-06B00

Unavailable

25

FRAME, END

31611-03F01

Unavailable

26

BOLT This part replaces 01550-08653.

01550-0865A

$3.51

27

NUT This part replaces 08361-35068.

08361-3506A

$1.80

28

GEAR, GENERATOR DRIVEN (NT:30)

22730-19C02

Unavailable

29

HOUSING DAMPER

22733-27A05

Unavailable

30

DAMPER

21231-06B00

$4.64

31

WASHER

08211-10283

$3.78

32

NUT This part replaces 08316-20103.

08316-2010B

$3.43
