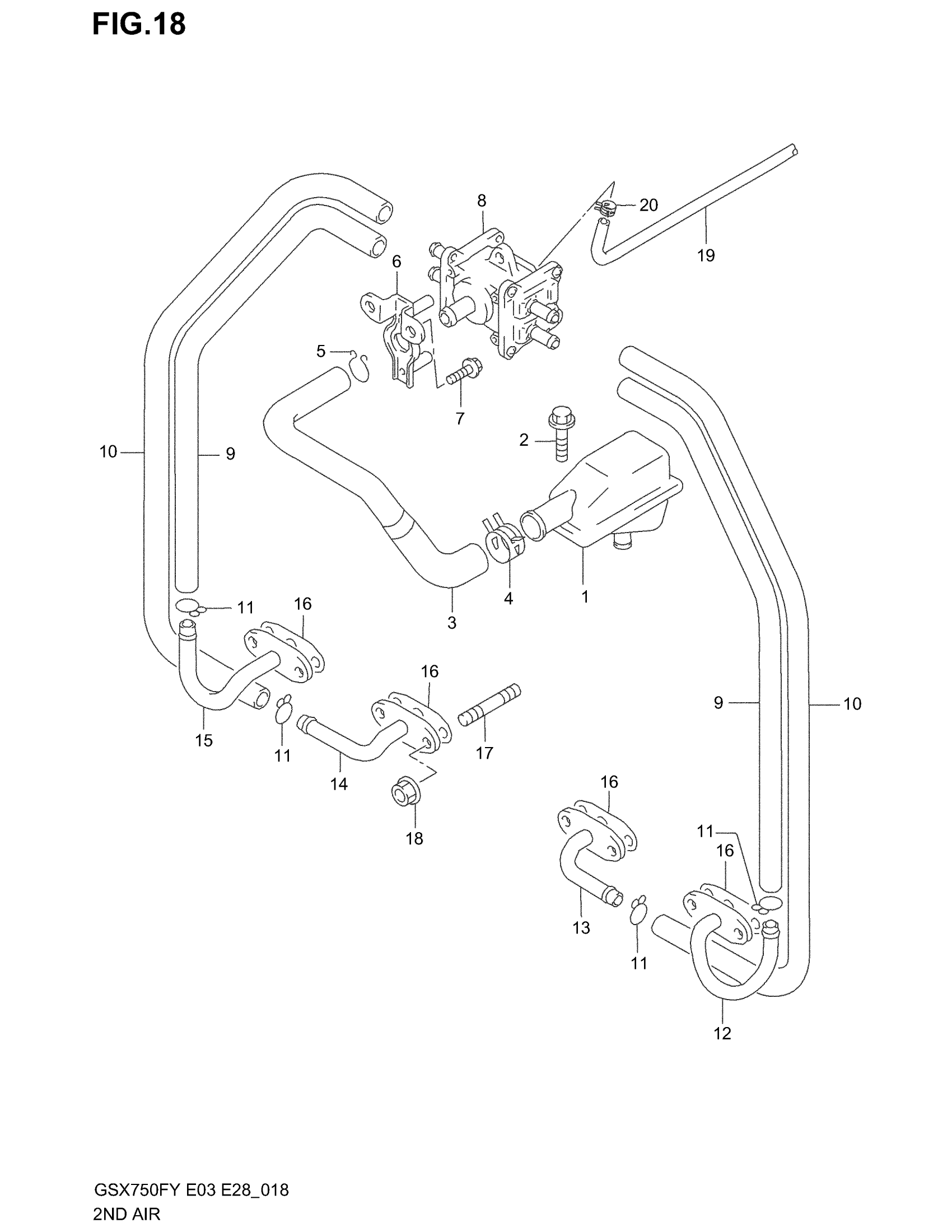

Suzuki GSX750F (2003) 2ND AIR (E33) Diagram

#

Description
Price

1

CLEANER, 2ND AIR

13800-27E00

$52.23

2

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

3

HOSE, 2ND AIR CLEANER

18711-08F00

Unavailable

4

CLIP, NO.1

09401-18404

$1.90

5

CLIP, NO.2

09401-15401

Unavailable

6

BRACKET, 2ND AIR VALVE

18610-08F00

Unavailable

7

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

8

VALVE ASSY,2ND | MODEL W/X This part replaces 18450-33E10.

18450-33E13

$225.78

8

VALVE ASSY,2ND | MODEL Y/K1/K2/K3 This part replaces 18450-33E12.

18450-33E13

$225.78

9

HOSE, 2ND AIR VALVE OUTER

18461-08F00

Unavailable

10

HOSE, 2ND AIR VALVE INNER

18471-08F00

Unavailable

11

CLIP

09401-13409

$2.12

12

PIPE, 2ND AIR NO.1

18410-20C00

Unavailable

13

PIPE, 2ND AIR NO.2

18420-19C02

Unavailable

14

PIPE, 2ND AIR NO.3

18430-19C02

Unavailable

15

PIPE, 2ND AIR NO.4

18440-20C00

Unavailable

16

GASKET, 2ND AIR PIPE | MODEL W/X/Y/K1/K2 This part replaces 18441-17C10.

18441-17C11

$7.25

16

GASKET, 2ND AIR PIPE | MODEL K3

18441-17C11

$7.25

17

BOLT,STUD This part replaces 01421-06163.

01421-0616A

$1.91

18

NUT This part replaces 08316-10063.

08316-1006B

$2.50

19

HOSE, 2ND AIR VALVE VACUUM | L:600!220

09359-45852-600

Unavailable

20

CLIP, HOSE This part replaces 09401-07402.

09401-06405

$2.45
