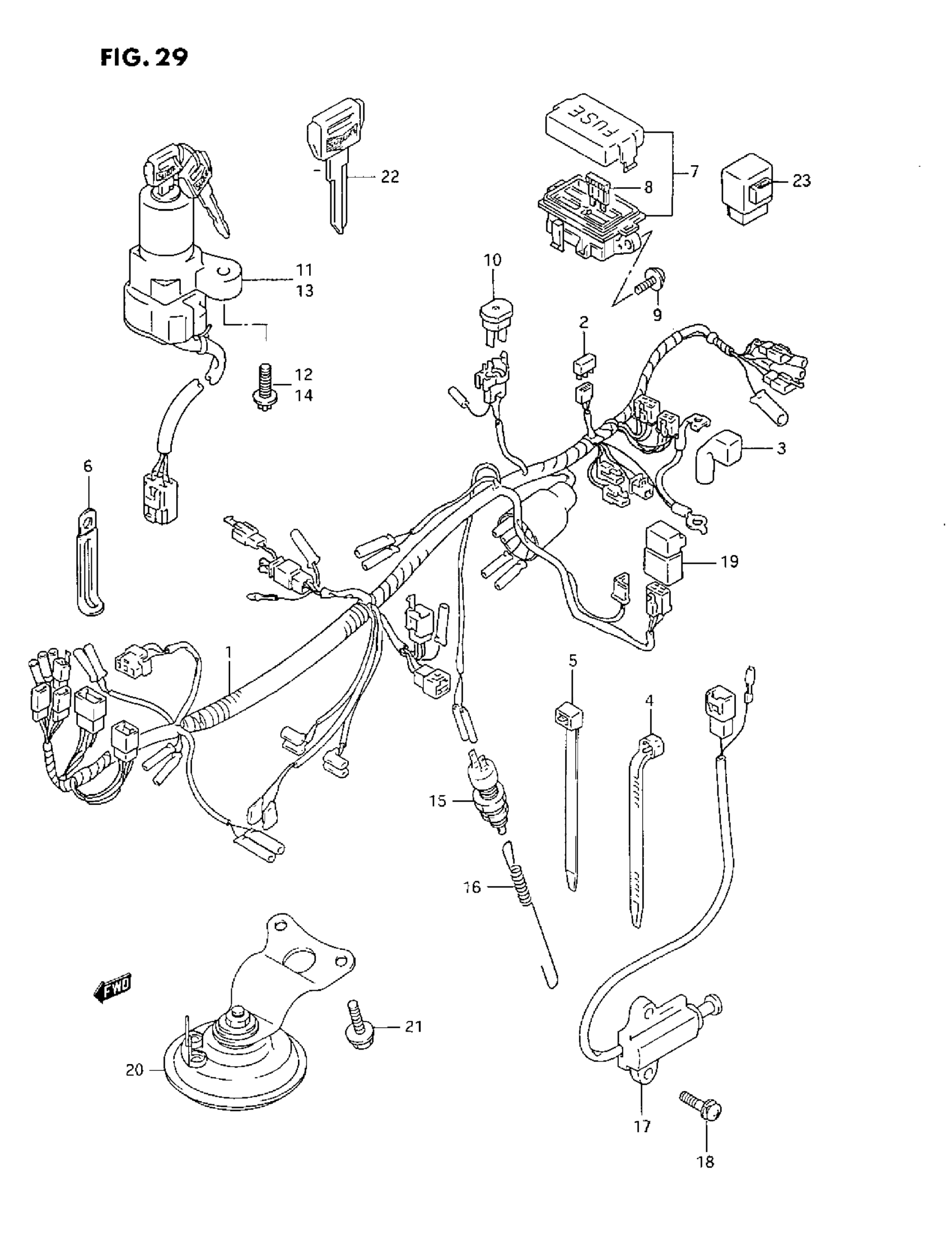

Suzuki GSX750F (1993) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 36610-20C00.

36610-20CK0

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 36610-20C02.

36610-20CK0

Unavailable

1

HARNESS, WIRING | MODEL P/R

36610-20C40

Unavailable

1

HARNESS, WIRING | CALIFORNIA ONLY, MODEL K/L/M/N

36610-20C10

Unavailable

1

HARNESS, WIRING | CALIFORNIA ONLY, MODEL P/R

36610-20C30

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

CAP, BATTERY (+) TERMINAL | MODEL K/P/R This part replaces 33624-27A00.

33624-43500

$5.50

4

CLAMP (L:125)

09407-14403

$2.26

4

CLAMP (L:165)

09407-18402

$2.19

4

CLAMP (L:235) | CALIFORNIA ONLY

09407-25401

$4.66

5

CLAMP

09407-10403

Unavailable

6

CLAMP This part replaces 09404-08405.

09404-08420

$3.16

7

FUSE BOX ASSY | MODEL K/L/M/N

36740-20C01

Unavailable

7

FUSE BOX ASSY | MODEL P/R This part replaces 36740-34C01.

36740-10D10

Unavailable

8

FUSE (10A) | MODEL K/L/M/N

09481-10101

$2.07

8

FUSE (10A) | MODEL P/R

09481-10101

$2.07

8

.FUSE (25A) | MODEL P/R This part replaces 09481-25101.

09481-25103

Unavailable

9

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

10

BREAKER ASSY, CIRCUIT | MODEL K/L/M/N

36750-05A00

$44.50

11

LOCK ASSY, STEERING | MODEL K/L This part replaces 37100-17C00.

37100-26D03

$194.77

12

BOLT | MODEL K/L

09139-06026

$2.50

13

LOCK ASSY, STEERING | MODEL M/N This part replaces 37100-17C02.

37100-26D03

$194.77

13

LOCK ASSY, STEERING | MODEL P This part replaces 37100-33D00.

37100-26D03

$194.77

13

LOCK ASSY, STEERING | MODEL R This part replaces 37100-26D01.

37100-26D03

$194.77

14

BOLT | MODEL M/N/P/R

09139-06026

$2.50

15

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

16

SPRING

09443-06005

$3.37

17

SWITCH ASSY,SID This part replaces 37840-20A11.

37840-44X52

$57.00

18

SCREW | MODEL K/L/M/N/P This part replaces 02112-36205.

02112-3620A

$2.06

18

BOLT | MODEL R This part replaces 01550-06203.

01550-0620A

$1.97

19

RELAY ASSY, SIDE STAND This part replaces 38740-24B10.

38740-24X50

$45.20

20

HORN ASSY | MODEL K/L/M/N This part replaces 38500-19C00.

38500-19C01

Unavailable

20

HORN ASSY | MODEL P/R

38500-19C01

Unavailable

21

BOLT | MODEL K/L/M/N/P This part replaces 01117-06165.

01550-0616A

$1.97

21

BOLT | MODEL R This part replaces 01550-06163.

01550-0616A

$1.97

22

KEY, BLANK | OPT This part replaces 37146-03A80.

37146-26D10

$49.70

22

LOCK SET | OPT MODEL K, L, M, N, P CALIF ONLY This part replaces 37100-17875.

37000-19841

Unavailable

22

LOCK SET | OPT MODEL K, L, M, N, P 49-STATE MO[ This part replaces 37100-19870.

37000-19851

Unavailable

22

LOCK SET | OPT MODEL R CALIFORN IIA ONLY This part replaces 37000-19840.

37000-19841

Unavailable

22

LOCK SET | OPT MODEL R 49-STATE TIODEL This part replaces 37000-19850.

37000-19851

Unavailable

23

CONTROLLER ASSY, FAN MOTOR | CALIFORNIA ONLY

38870-48B00

Unavailable
