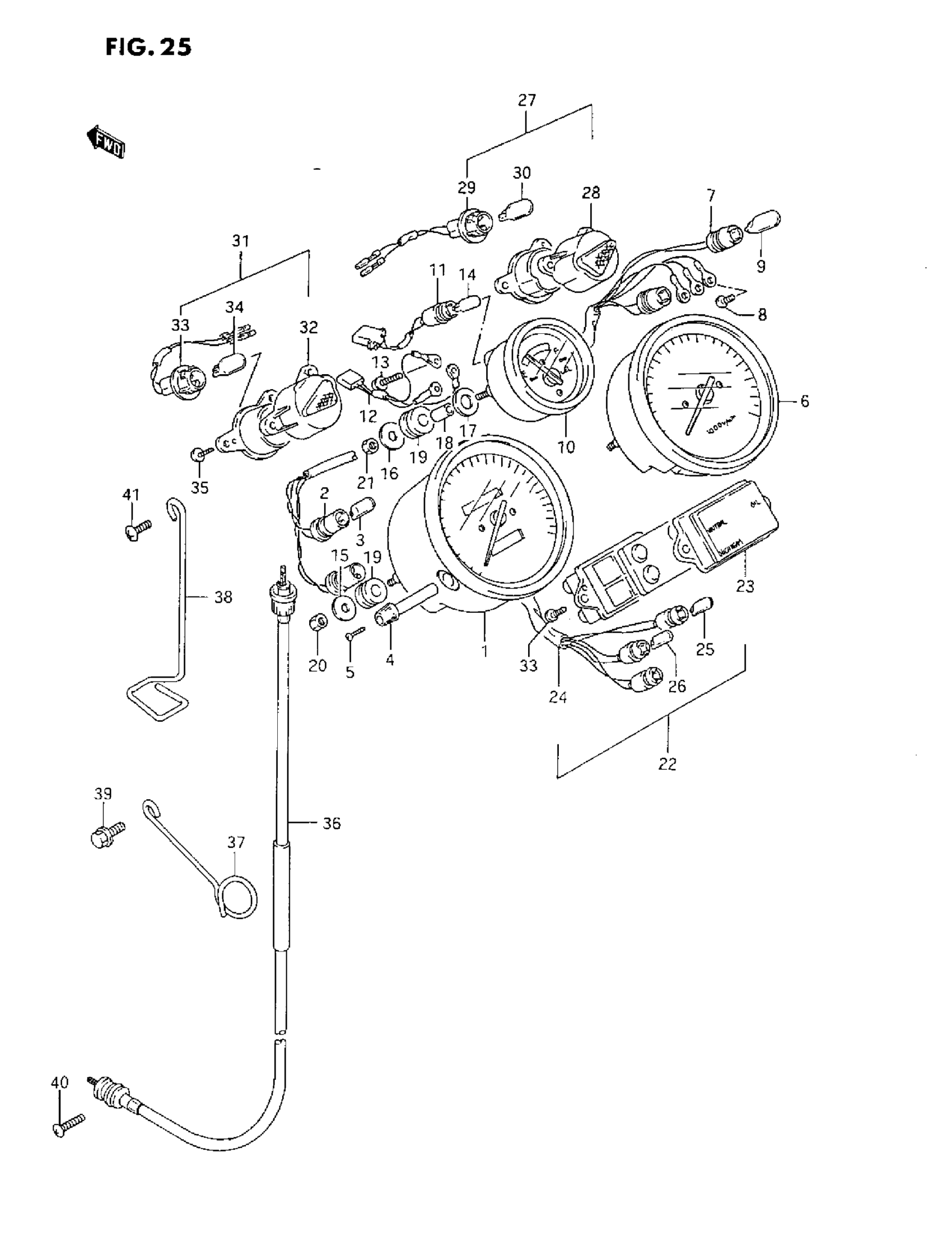

Suzuki GSX750F (1993) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (KILO/MILE)

34100-20C30

Unavailable

2

SOCKET

34171-20C20

Unavailable

3

BULB (12V, 3W)

09471-12077

$3.55

4

KNOB, TRIP

34124-20C00

Unavailable

5

SCREW (2X6) This part replaces 34981-13A00.

09139-02003

$1.65

6

TACHOMETER

34200-20C00

Unavailable

7

SOCKET

34275-20C00

Unavailable

8

SCREW This part replaces 02112-33126.

02112-3312A

$2.30

9

BULB (12V, 3W)

09471-12077

$3.55

10

FUEL METER

34300-20C00

Unavailable

11

SOCKET

34371-20C00

Unavailable

12

CORD ASSY

34371-20C10

Unavailable

13

SCREW

34383-09400

Unavailable

14

.BULB (12V1.7W)

09471-12108

$3.42

15

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

16

WASHER (4.5X16X1.2) This part replaces 09160-04014.

09160-04026

$2.05

17

WASHER (8.2XL8XL.2)

09161-08011

$2.05

18

SPACER (4.5X7.5XL5)

09180-04014

Unavailable

19

CUSHION

34189-20C00

Unavailable

20

NUT This part replaces 08310-11056.

08310-0005A

$1.84

21

NUT This part replaces 08310-11046.

08310-0004A

$2.30

22

BOX ASSY, PILOT LAMP

36380-20C10

Unavailable

23

CASE, UPPER

36381-20C10

Unavailable

24

SOCKET

34170-20C10

Unavailable

25

.BULB (12V1.7W)

09471-12108

$3.42

26

BULB (12V, 3W)

09471-12103

$3.83

27

LAMP ASSY, TURNSIGNAL PILOT RH

36340-20C00

Unavailable

28

LENS

36342-20C00

Unavailable

29

NO DESCRIPTION AVAILABLE This part replaces 36348-20C00.

35618-37B00

Unavailable

30

BULB (12V, 3.4W)

09471-12082

Unavailable

31

LAMP ASSY, TURNSIGNAL PILOT LH

36350-20C00

Unavailable

32

LENS

36352-20C00

Unavailable

33

NO DESCRIPTION AVAILABLE This part replaces 36348-20C00.

35618-37B00

Unavailable

34

BULB (12V, 3.4W)

09471-12082

Unavailable

35

SCREW This part replaces 03541-04166.

03541-0416A

$1.49

36

CABLE,SPEEDOMET This part replaces 34910-19C01.

34910-19C02

$31.75

37

CLAMP, CABLE

34938-45100

$6.57

38

CLAMP,SPEEDOMET This part replaces 34938-34C01.

34938-34C0V

Unavailable

39

BOLT | MODEL K/L/M/N/P This part replaces 01517-06108.

01550-06107

$2.80

39

BOLT | MODEL R This part replaces 01550-06103.

01550-0610A

$1.97

40

SCREW | MODEL K/L/M/N/P

02112-05164

$2.63

40

.SCREW | MODEL R This part replaces 02112-05163.

02112-0516A

$1.49

41

.SCREW | MODEL K/L/M/N/P This part replaces 02142-05124.

02142-0512A

$1.49

41

.SCREW | MODEL R This part replaces 02142-05123.

02142-0512A

$1.49
