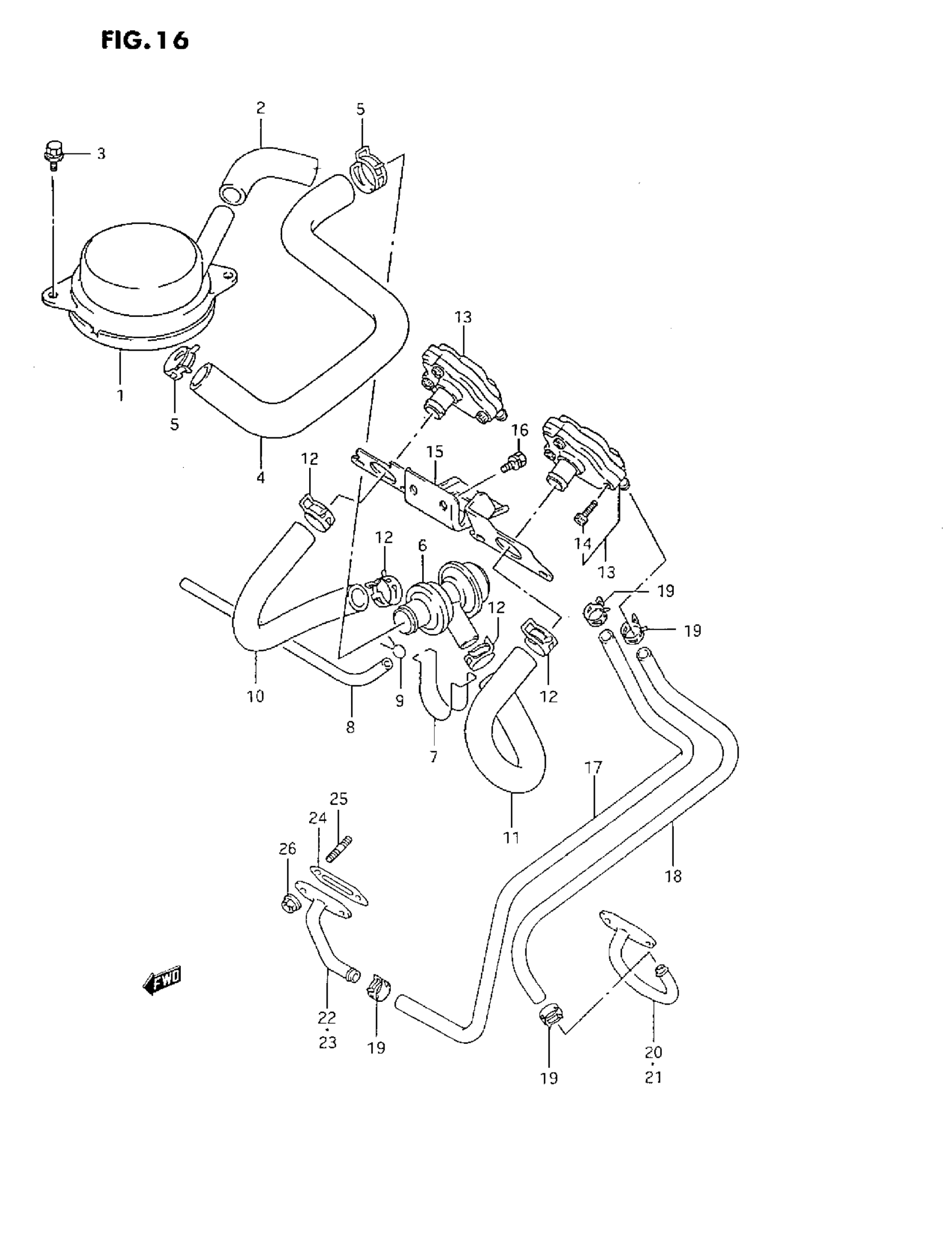

Suzuki GSX750F (1993) SECOND AIR (CALIFORNIA ONLY) Diagram

#

Description
Price

1

CLEANER ASSY, 2ND AIR | MODEL K/L/M/N This part replaces 18700-48B02.

18700-17C03

Unavailable

1

CLEANER ASSY, 2ND AIR | MODEL P/R This part replaces 18700-48B03.

18700-17C03

Unavailable

2

HOSE, INLET

18481-48B00

Unavailable

3

BOLT | MODEL K/L/M/N This part replaces 01177-06128.

01580-06127

$3.30

3

BOLT | MODEL P/R This part replaces 01177-06168.

01580-06167

$3.33

4

HOSE, 2ND AIR, NO.3

18551-19C00

Unavailable

5

CLIP

09401-25402

Unavailable

6

VALVE ASSY, AIR SWITCHING

18510-20C00

Unavailable

7

CLAMP, SWITCHING VALVE

18522-17C00

Unavailable

8

HOSE, 2ND AIR VALVE VACUUM | L:300->250 This part replaces 09359-45852-300.

09359-45852-600

Unavailable

9

CLIP

09401-07401

Unavailable

10

HOSE, 2ND AIR NO.2, RH

18481-19C00

Unavailable

11

HOSE, 2ND AIR NO.2, LH

18482-19C00

Unavailable

12

CLIP

09401-21401

Unavailable

13

VALVE ASSY, 2ND AIR REED

18450-48B00

Unavailable

14

BOLT This part replaces 07110-05167.

07130-05167

$3.15

15

BRACKET, REED VALVE

18470-19C01

Unavailable

16

BOLT This part replaces 01137-06167.

01570-06167

$3.03

17

HOSE, 2ND AIR NO.1 INSIDE

18445-20C00

Unavailable

18

HOSE, 2ND AIR NO.1 This part replaces 18446-20C00.

18446-20810

Unavailable

19

CLAMP This part replaces 09401-13408.

09401-13417

$2.26

20

PIPE, 2ND AIR, NO.1 | LH

18410-20C00

Unavailable

21

PIPE, 2ND AIR, NO.4 | RH

18440-20C00

Unavailable

22

PIPE, 2ND AIR, NO.2 | ML

18420-20C00

Unavailable

23

PIPE, 2ND AIR, NO.3 | MR

18430-20C00

Unavailable

24

GASKET, 2ND AIR PIPE | MODEL K/L/M This part replaces 18441-17C00.

18441-17C11

$7.25

24

GASKET, 2ND AIR PIPE | MODEL N/P/R This part replaces 18441-17C10.

18441-17C11

$7.25

25

BOLT,STUD This part replaces 01421-06125.

01421-0612A

Unavailable

26

NUT | MODEL K/L/M/N/P This part replaces 08316-16064.

08316-1006B

$2.50

26

NUT | MODEL R This part replaces 08316-10063.

08316-1006B

$2.50

27

HOLDER, 2ND AIR CLEANER | MODEL N/P/R

18761-41C00

Unavailable
