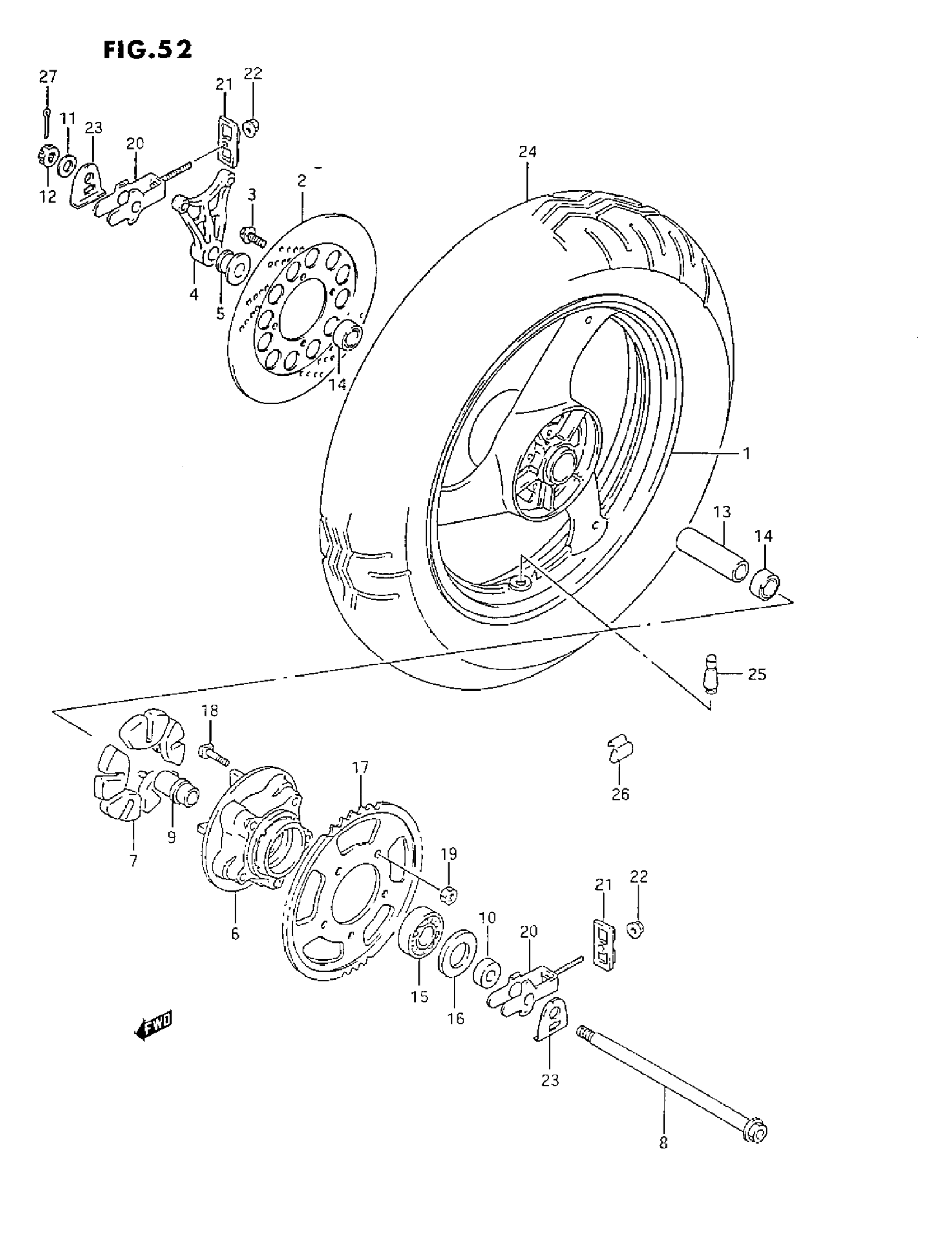

Suzuki GSX750F (1993) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (MT3.5OXL7) SILVER | MODEL K/L

64111-34C00-12Z

Unavailable

1

WHEEL,REAR,MT3. | MODEL M This part replaces 64111-34C00-12R.

64111-34C01-12R

Unavailable

1

WHEEL, REAR (MT3.5OXL7) GOLD | MODEL N/P

64111-34C00-35B

Unavailable

1

WHEEL, REAR (MT3.5OXL7) PURPLE | MODEL R

64111-34C00-1DR

Unavailable

2

DISC, REAR BRAKE (BLACK) | MODEL K/L/M/N This part replaces 69211-34C00.

69211-01D00

Unavailable

2

DISC, REAR BRAKE (BLACK) | MODEL P/R

69211-01D00

Unavailable

3

BOLT | MODEL K/L/M/N/P This part replaces 07120-08305.

07120-0830A

$3.86

3

BOLT | MODEL R

09106-08131

$3.55

4

BRACKET, CALIPER

69721-43400

Unavailable

5

SPACER, REAR AXLE, RH

64740-19C00

$22.22

6

DRUM, REAR SPROCKET

64611-17C01

Unavailable

7

ABSORBER,RR HUB SHOCK

64651-27A01

$9.78

8

NO DESCRIPTION AVAILABLE This part replaces 64711-19C00.

64711-19C0V

Unavailable

9

RETAINER, DRUM

64733-34C00

$29.10

10

SPACER, REAR AXLE, LH

64751-34C00

Unavailable

11

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

$2.45

12

NUT, HUB | MODEL K/L/M/N/P This part replaces 08314-41168.

08314-4016A

$3.79

12

NUT, HUB | MODEL R This part replaces 08314-40163.

08314-4016A

$3.79

13

SPACER, BEARING

09180-17067

$23.05

14

BEARING

08143-63037

$22.58

15

BEARING

09262-25073

$25.92

16

SEAL,OIL (35X62X8)

09285-35001

$10.19

17

SPROCKET, REAR (NT:47-530) This part replaces 64511-20C10.

64511-20C11

$116.68

18

BOLT

09119-10037

$4.32

19

NUT

08319-31107

$2.73

20

ADJUSTER, CHAIN (WHITE) | MODEL K/I-/M/N This part replaces 61410-20C00.

61410-20C02

Unavailable

20

ADJUSTER, CHAIN (WHITE) | MODEL N/P/R

61410-20C02

Unavailable

21

PLATE, GUIDE (BLACK) | MODEL K/L/M/N

61421-20C00

Unavailable

21

PLATE, GUIDE (WHITE) | MODEL N/P/R

61421-20C01

$10.88

22

NUT | MODEL K/L/M/N This part replaces 08319-31085.

08319-3108A

$2.32

22

NUT | MODEL N/P/R

08319-31087

$2.32

23

WASHER, CHAIN ADJUSTER | MODEL K/L/M/N ->61445-20COL This part replaces 61445-20C00.

61445-20C01

$7.37

23

WASHER, CHAIN ADJUSTER | MODEL P/R

61445-20C01

$7.37

24

TIRE, REAR | MODEL K EXECUTED LOCALLY ->65100-20CBO This part replaces 65100-20CA0.

65100-20CB0

Unavailable

24

TIRE, REAR (150/70VB I7 V250) METZELER | MODEL L/M/N EXECUTED LOCALLY ->65110-20CBO

65100-20CB0

Unavailable

24

TIRE, REAR | MODEL P/R EXECUTED LOCALLY This part replaces 65110-20CB0.

65100-20CB0

Unavailable

25

VALVE ASSY, WHEEL RIM | ->43130-24AIL

43130-24A00

$8.85

25

VALVE ASSY, WHEEL RIM (TR412) This part replaces 43130-24A11.

43130-24A00

$8.85

26

BALANCER (10G) | 0-3

55411-00A00

$1.49

26

BALANCER, WHEEL NO.2 | 0-3 This part replaces 55412-00A00.

55412-17G00

$7.05

26

BALANCER (30G) | 0-3 This part replaces 55413-00A00.

55413-00A01

Unavailable

27

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49
