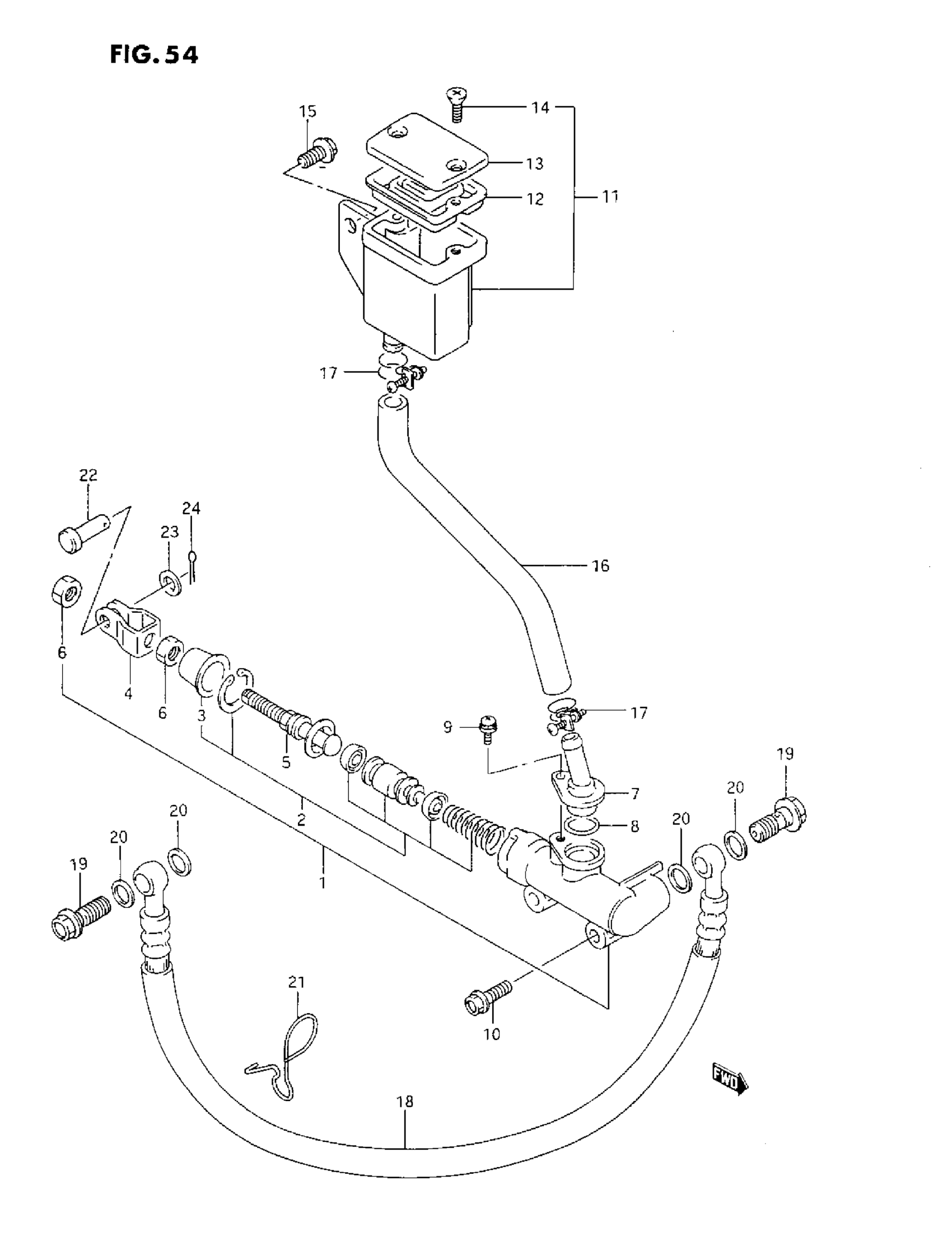

Suzuki GSX750F (1993) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-19C00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-19A00

$16.87

5

ROD, PUSH

69670-19C00

Unavailable

6

NUT | ->69693-05AOO This part replaces 69693-24A00.

69693-05A00

$1.96

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-20A00

Unavailable

8

O-RING

69686-34200

$2.93

9

.SCREW This part replaces 02112-74125.

02112-7412A

$2.12

10

BOLT | MODEL K/L/M/N/P This part replaces 07110-06167.

07130-06167

$3.16

10

BOLT | MODEL R This part replaces 07130-06163.

07130-0616B

$2.39

11

TANK ASSY, REAR RESERVOIR | MODEL K/L/M/N ->69740-24AOI This part replaces 69740-24A00.

69740-24A01

Unavailable

11

TANK ASSY, REAR RESERVOIR | MODEL P/R

69740-24A01

Unavailable

12

DIAPHRAGM

59667-04700

$9.78

13

CAP | MODEL K/L This part replaces 69669-24A00.

69669-24A01

$15.10

13

CAP | MODEL M/N

69669-24A01

$15.10

13

CAP | MODEL P/R

59669-05D00

$16.76

14

SCREW

69689-04A00

$1.78

15

BOLT | MODEL K/L/M/N/P This part replaces 01517-06167.

01550-06167

$2.30

15

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

16

HOSE, RESERVOIR

69731-20C00

Unavailable

17

CLAMP This part replaces 09400-16302.

09400-16304

$3.10

18

HOSE, REAR BRAKE | MODEL K/L/M/N This part replaces 69480-20C01.

69480-20C10

Unavailable

18

HOSE, REAR BRAKE | MODEL P/R

69480-20C10

Unavailable

19

BOLT | MODEL K/L/M/N/P

09360-10017

$3.42

19

UNION | MODEL R This part replaces 09360-10039.

09360-10061

$6.43

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

GUIDE, BRAKE HOSE

69243-19C00

Unavailable

22

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

23

WASHER | MODEL K/L/M/N/P This part replaces 08322-21067.

08322-01067

$2.13

23

.WASHER | MODEL R This part replaces 08322-01063.

08322-0106B

$2.26

24

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
