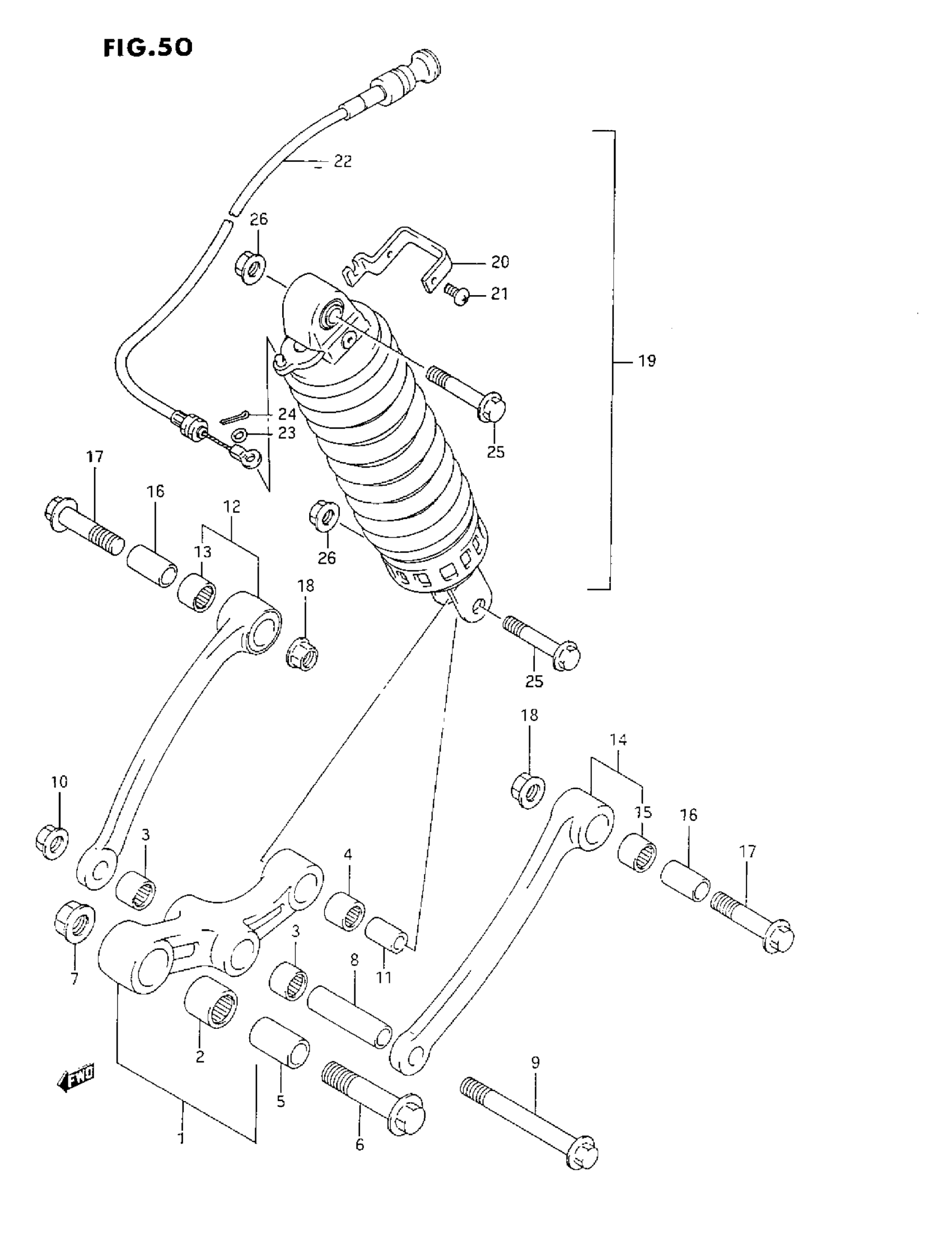

Suzuki GSX750F (1993) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62600-19830

Unavailable

2

BEARING, FRONT

09263-20070

$37.72

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER, FRONT

09180-14014

$17.50

6

BOLT, FRONT

09103-14012

Unavailable

7

NUT This part replaces 08319-31145.

08319-3114B

$12.87

8

SPACER, CENTER

09180-12121

$20.03

9

BOLT, CENTER

09103-12034

$10.30

10

NUT This part replaces 08319-31125.

08319-3112B

$5.00

11

SPACER, REAR

62684-40A10

$12.15

12

ROD SET, REAR CUSHI ON, RH

62601-20810

Unavailable

13

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

14

ROD SET, REAR CUSHION, LH

62601-20820

Unavailable

15

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

16

SPACER, ROD

09180-12120

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 09103-12035.

09103-12035-XC0

Unavailable

18

NUT This part replaces 08319-31125.

08319-3112B

$5.00

19

ABSORBER ASSY, REAR SHOCK This part replaces 62100-20C01.

62100-20C02

Unavailable

20

CASE, GUIDE

62361-20C01

Unavailable

21

SCREW This part replaces 02112-04085.

02112-0408A

$1.49

22

CABLE, CONTROL

62358-20C00

Unavailable

23

WASHER

62357-20C00

Unavailable

24

PIN

04111-16108

Unavailable

25

BOLT

09103-10197

Unavailable

26

NUT This part replaces 08319-31105.

08319-3110A

$2.73
