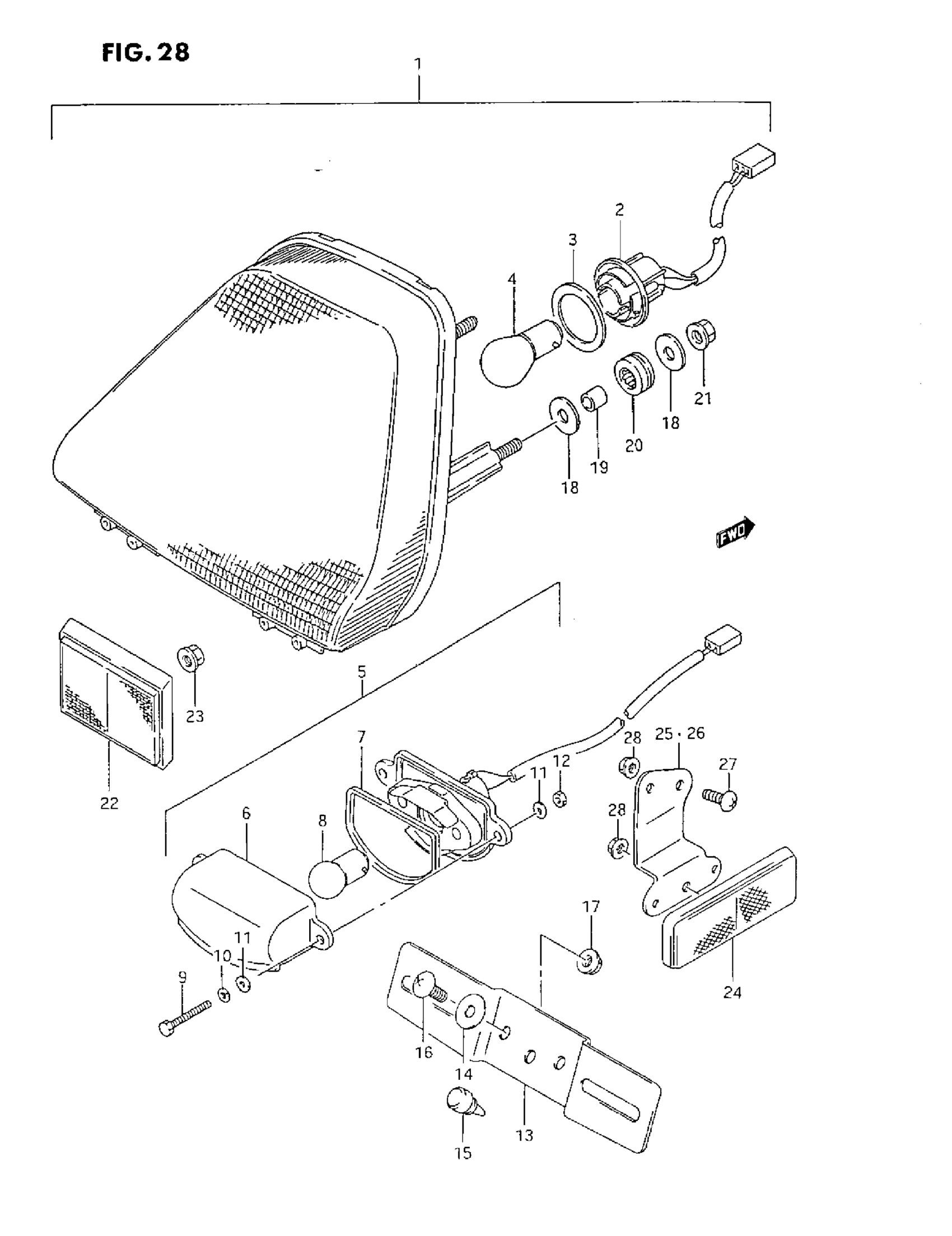

Suzuki GSX750F (1993) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION This part replaces 35710-48B31.

35710-48C30

Unavailable

2

SOCKET

35718-48B20

Unavailable

3

RUBBER

35764-48B20

Unavailable

4

BULB (12V, 21/5W)

09471-12128

$6.73

5

LAMP ASSY, LICENSE

35910-48B30

Unavailable

6

LENS, LICENSE LAMP

35912-00A21

Unavailable

7

GASKET

35913-04A00

Unavailable

8

BULB (12V, 5W)

09471-12141

Unavailable

9

BOLT

01104-04256

Unavailable

10

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

11

WASHER This part replaces 08322-21047.

08322-01047

$1.86

12

NUT This part replaces 08310-22048.

08310-00047

$2.23

13

BRACKET, LICENSE PLATE

35927-48B30

$14.20

14

WASHER (6.5X2 OXL.6)

09160-06066

$1.89

15

CUSHION

09321-06023

$2.50

16

SCREW | MODEL K/L/M/N/P This part replaces 02142-06164.

02142-0616A

$1.49

16

SCREW | MODEL R This part replaces 02142-06163.

02142-0616A

$1.49

17

NUT | MODEL K/L/M/N/P This part replaces 08316-16064.

08316-1006B

$2.50

17

NUT | MODEL R This part replaces 08316-10063.

08316-1006B

$2.50

18

WASHER (6.5X20X1.2) This part replaces 09160-06086.

09160-06077

$1.91

19

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

20

CUSHION

09320-09009

$4.64

21

NUT | MODEL K/L/M/N/P This part replaces 08316-16066.

08316-1006B

$2.50

21

NUT | MODEL R This part replaces 08316-10063.

08316-1006B

$2.50

22

REFLEX REFLECTOR, REAR

35970-48B00

Unavailable

23

NUT This part replaces 08316-16056.

08316-1005A

$2.19

24

REFLECTOR, REAR This part replaces 35970-00A21.

35970-00A10

Unavailable

25

BRACKET, RH

35975-20C01

Unavailable

26

BRACKET, LH

35976-20C01

Unavailable

27

.SCREW | MODEL K/L/M/N/P This part replaces 02142-05124.

02142-0512A

$1.49

27

.SCREW | MODEL R This part replaces 02142-05123.

02142-0512A

$1.49

28

NUT | MODEL K/L/M/N/P This part replaces 08316-26055.

08316-2005A

$2.19

28

NUT | MODEL R This part replaces 08310-00053.

08310-0005A

$1.84
