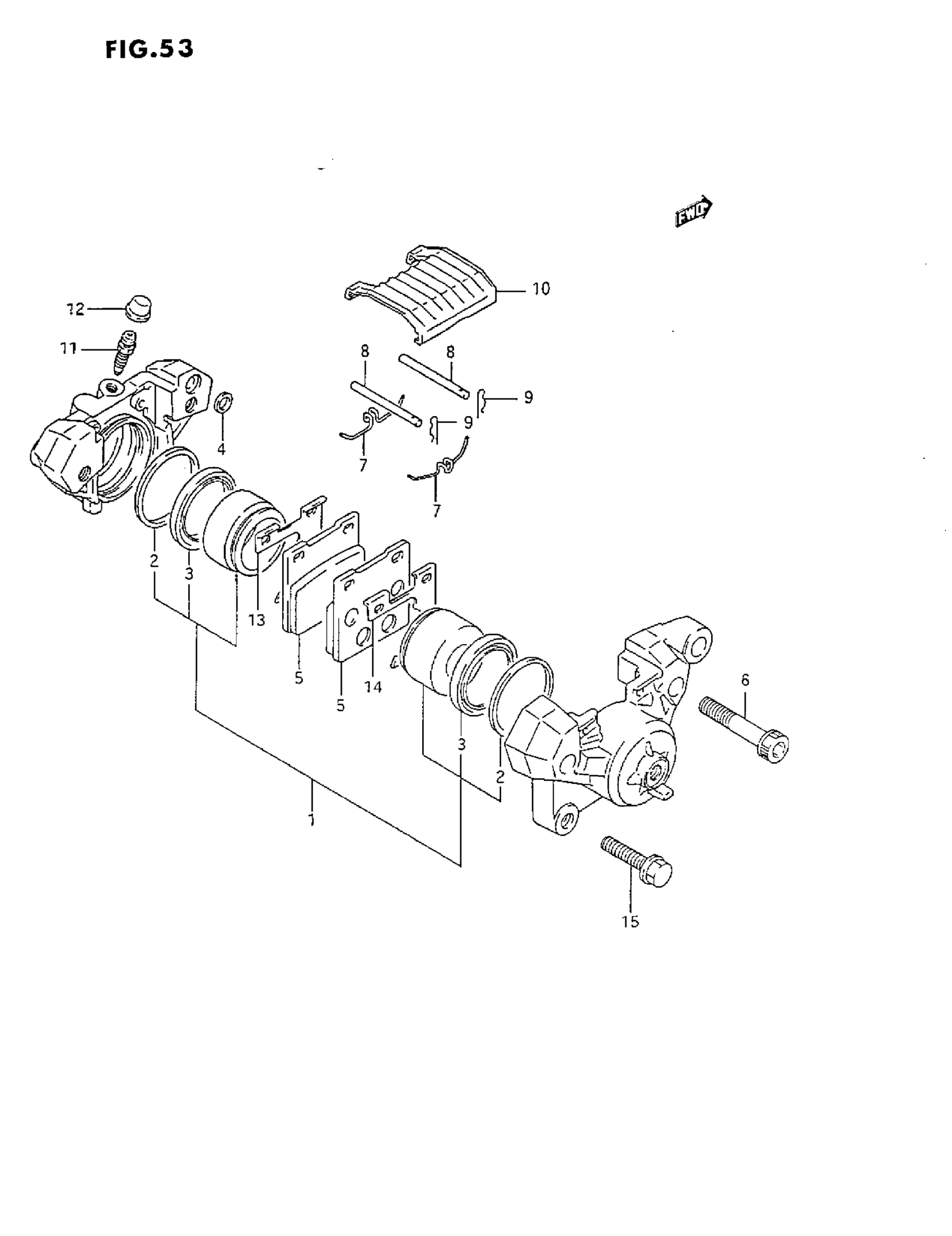

Suzuki GSX750F (1993) REAR CALIPER (K/L/M/N) Diagram

#

Description
Price

1

CALIPER ASSY, REAR | MODEL K ->69100-20C OI This part replaces 69100-20C00.

69100-01D04-999

$322.90

1

CALIPER ASSY, REAR | MODEL L/M/N ->69100-20C O2 This part replaces 69100-20C01.

69100-01D04-999

$322.90

1

CALIPER ASSY, REAR | ->69100-01D O3 This part replaces 69100-20C02.

69100-01D04-999

$322.90

1

PISTON SET | MODEL K/L/M/N FOR 69100-20COL This part replaces 69100-27820.

69100-27821

$101.26

1

PISTON SET | MODEL N FOR 69100-20C O2

69100-17830

Unavailable

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$8.68

3

BOOT

59108-16700

$9.25

4

SEAL

69107-34200

$10.25

5

PAD SET This part replaces 69130-20A10.

69100-20810

$54.02

6

BOLT | MODEL K This part replaces 69145-16700.

59145-05C50

$7.85

6

BOLT (HEXAGON FLANGE) | MODEL L/M/N

59145-17C00

Unavailable

7

SPRING

59143-16700

$5.54

8

PIN

69141-45000

$5.09

9

.CLIP, PAD PIN

69142-45000

$4.15

10

COVER

59151-16701

$13.15

11

BLEEDER

59121-18410

$8.35

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$4.94

13

SHIM, INNER

59371-20C00

$18.33

14

SHIM, OUTER

59381-20C00

$18.33

15

BOLT This part replaces 01517-08304.

01550-0830A

$2.82
