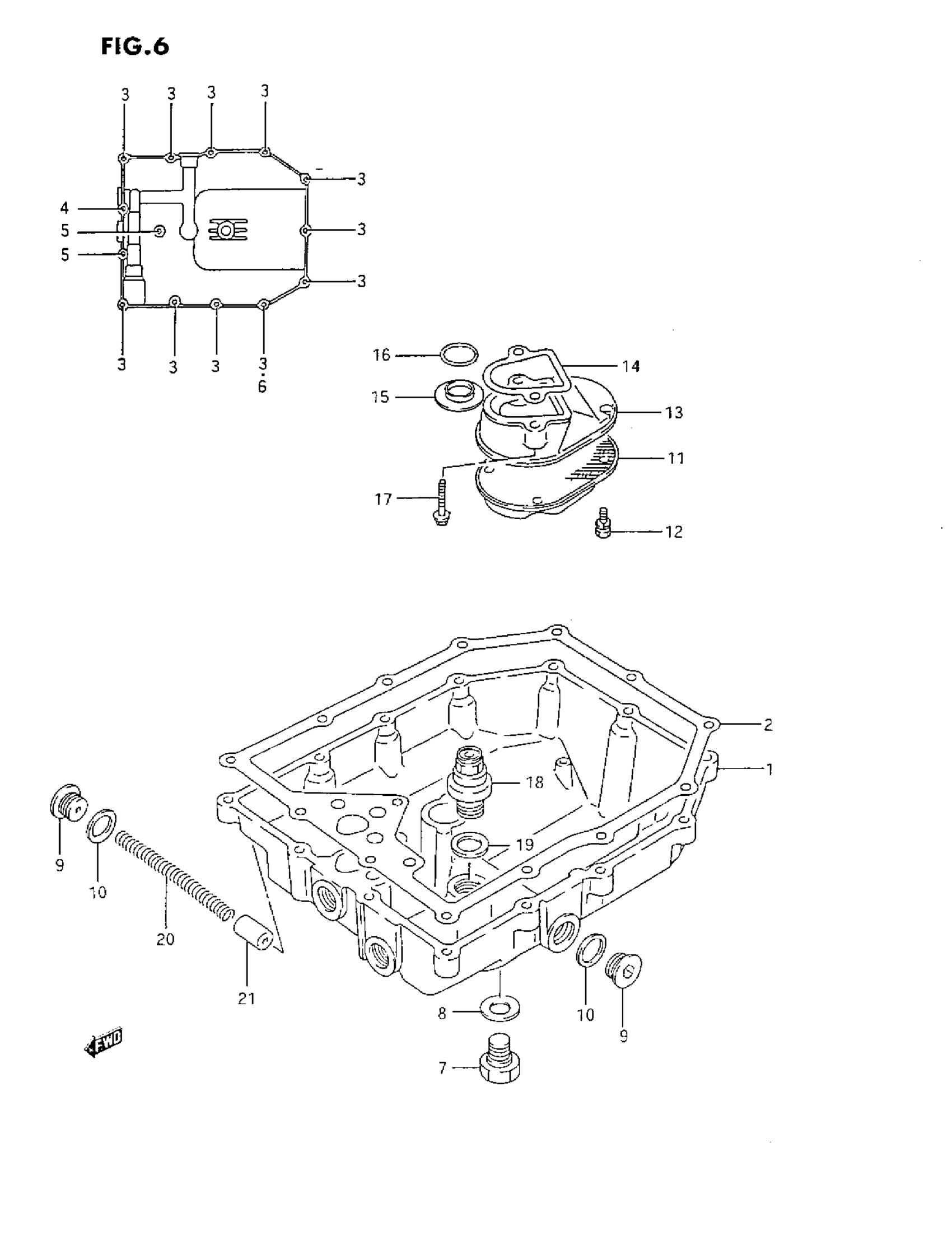

Suzuki GSX750F (1993) OIL PAN Diagram

#

Description
Price

1

PAN, OIL

11511-20C00

Unavailable

2

O RING, OIL PAN | MODEL K/L This part replaces 11489-27A00.

11489-27A21

$16.33

2

O RING, OIL PAN | MODEL M/N This part replaces 11489-27A10.

11489-27A21

$16.33

2

O RING, OIL PAN | MODEL P/R This part replaces 11489-27A20.

11489-27A21

$16.33

3

BOLT | MODEL K/L/M/N/P

01547-06257

$2.03

3

BOLT, FINAL GEAR CASE COVER | MODEL R This part replaces 01547-06253.

01547-0625B

$2.45

4

BOLT | MODEL K/L/M/N/P

01547-06507

$2.41

4

BOLT | MODEL R This part replaces 01547-06503.

01547-0650B

$2.75

5

BOLT | MODEL K/L/M/N/P

01547-06457

$2.32

5

BOLT | MODEL R This part replaces 01547-06453.

01547-0645B

$2.73

6

GASKET

09168-06024

$2.20

7

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

8

GASKET

09168-14004

$1.83

9

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.64

10

GASKET

09168-16002

$1.91

11

STRAINER, ENGINE OIL

16520-17C00

Unavailable

12

BOLT | MODEL K/L/M/N/P This part replaces 01137-06128.

01570-06127

$2.50

12

BOLT | MODEL R This part replaces 01570-06123.

01570-0612A

$2.63

13

PROTECTOR, STRAINER

16525-17C00

Unavailable

14

GASKET, OIL STR PROTECTOR | MODEL K/L This part replaces 16528-27A02.

16528-27A21

$5.78

14

GASKET, OIL STR PROTECTOR | MODEL M/N This part replaces 16528-27A10.

16528-27A21

$5.78

14

GASKET, OIL STR PROTECTOR | MODEL P/R This part replaces 16528-27A20.

16528-27A21

$5.78

15

GASKET, OUTLET

16529-27A01

$2.15

16

O-RING

09280-18009

$5.83

17

BOLT | MODEL K/L/M/N/P This part replaces 01517-06257.

01550-06257

$2.30

17

BOLT | MODEL R This part replaces 01550-06253.

01550-0625A

$1.97

18

VALVE ASSY, OIL RELIEF This part replaces 16440-17C00.

16440-17C10

$67.28

19

WASHER

09168-16002

$1.91

20

SPRING

09440-09027

Unavailable

21

PLUNGER, OIL CONTROL

16442-34301

Unavailable
