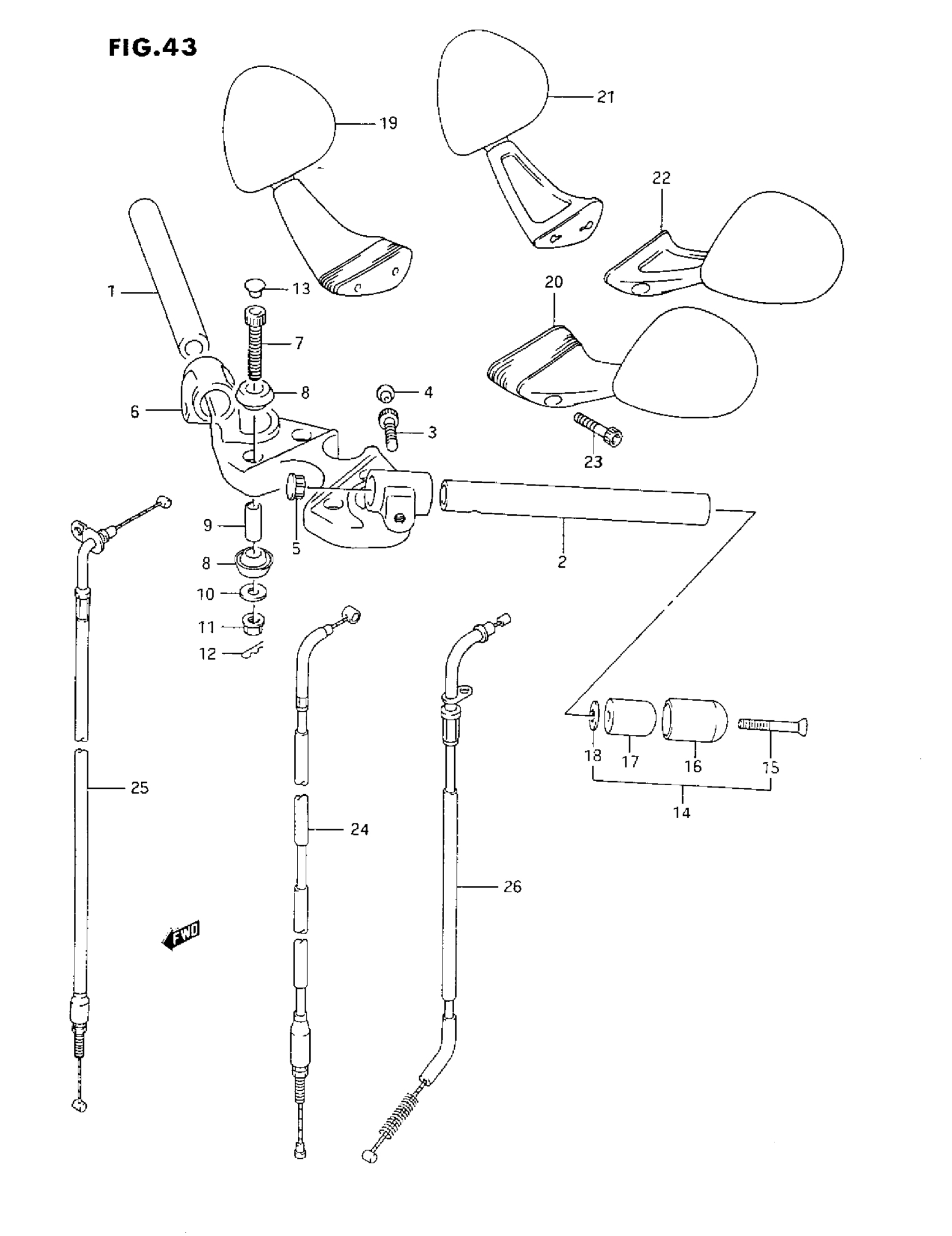

Suzuki GSX750F (1993) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56110-20C00

Unavailable

2

HANDLEBAR, LH

56150-20C00

Unavailable

3

BOLT | MODEL K/L/M/N/P This part replaces 07110-08307.

07130-08307

$3.89

3

BOLT, STEERING DAMPER | MODEL R This part replaces 07130-08303.

07130-0830A

$1.74

4

CAP | MODEL K/L/M/N

09250-06004

$1.49

5

CAP

57215-33400

$5.50

6

HOLDER, HANDLEBAR (PEARL) | MODEL K/L/M/N/P

56211-20C10

Unavailable

6

HOLDER, HANDLEBAR (SILVER) | MODEL R

56211-20C20

Unavailable

7

BOLT

09106-10054

Unavailable

8

CUSHION,RUBBER, This part replaces 56240-42A00.

56240-42A01

$30.47

9

SPACER

56243-20C00

Unavailable

10

WASHER This part replaces 09160-10084.

09160-10094

$3.16

11

NUT This part replaces 08319-31105.

08319-3110A

$2.73

12

CLIP

09385-10005

$1.56

13

CAP | MODEL K/L/M/N/P

09250-06011

$2.50

13

CAP | MODEL R This part replaces 09250-06008.

09250-06016

$1.96

14

BALANCER SET, HANDLEBAR | MODEL K/L/M/N/P This part replaces 56200-20840.

56200-01831

Unavailable

14

BALANCER SET, HANDLEBAR | MODEL R This part replaces 56200-01830.

56200-01831

Unavailable

15

SCREW | MODEL K/L/M/N/P This part replaces 02132-06605.

02122-0660B

$3.04

15

SCREW | MODEL R This part replaces 02122-06603.

02122-0660B

$3.04

16

CAP, BALANCER This part replaces 56274-20C00.

56274-49310

Unavailable

17

BALANCER

56271-49310

Unavailable

18

SPACER This part replaces 56275-34400.

56275-34401

$4.02

19

MIRROR ASSY,REA | MODEL K This part replaces 56500-20C30.

56500-20C31

Unavailable

20

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 56600-20C30.

56600-20C31

Unavailable

21

MIRROR ASSY,REA | MODEL L/M/N/P/R This part replaces 56500-20C40.

56500-20C42

Unavailable

22

MIRROR ASSY,REA | MODEL L/M/N/P/R This part replaces 56600-20C40.

56600-20C42

Unavailable

23

BOLT | MODEL K/L/M/N/P This part replaces 07110-06705.

07130-0670B

$3.89

23

BOLT | MODEL R This part replaces 07130-06703.

07130-0670B

$3.89

24

CABLE ASSY, CLUTCH

58200-20C00

Unavailable

25

CABLE ASSY, THROTTLE

58300-20C00

Unavailable

26

CABLE, STARTER

58410-20C02

Unavailable
