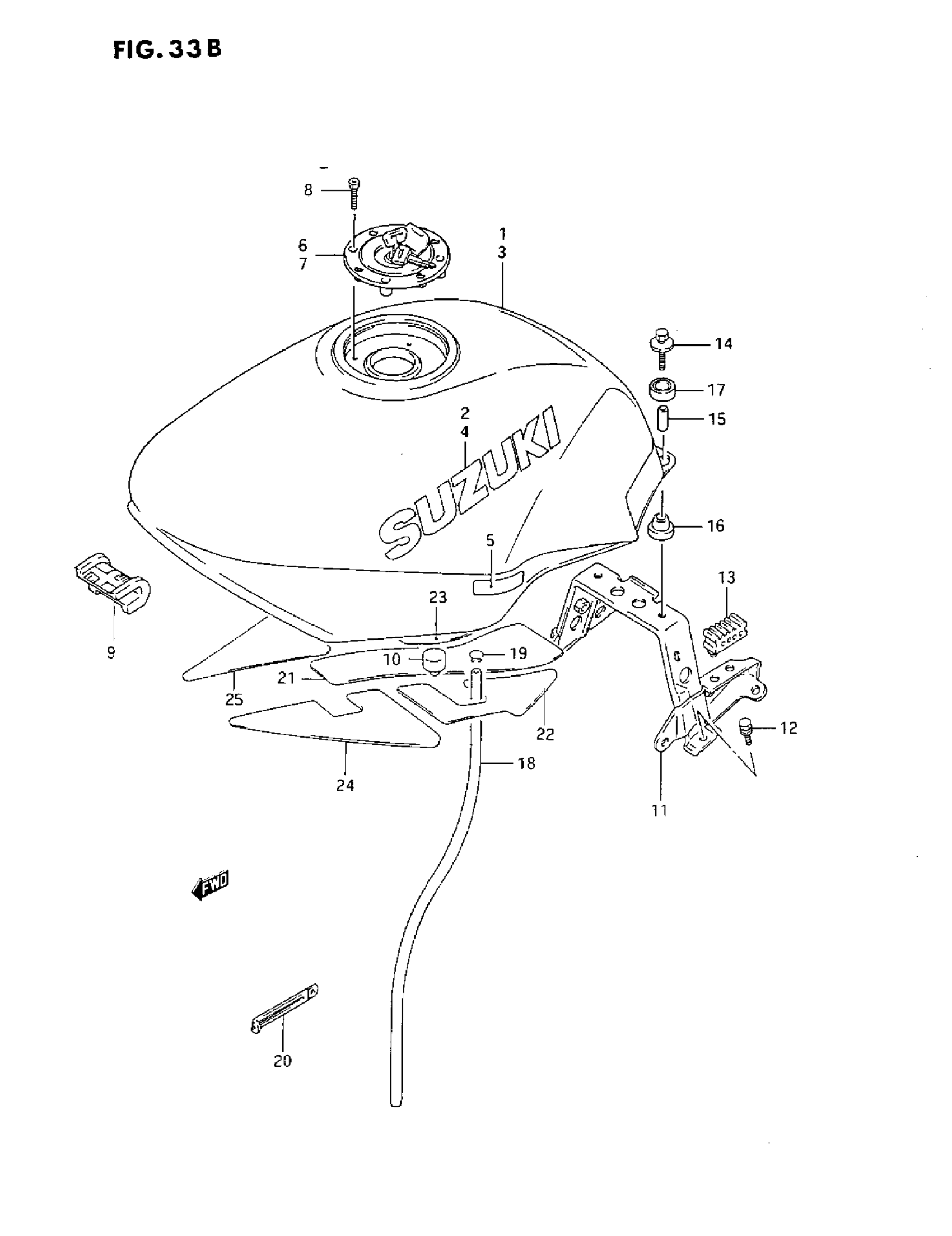

Suzuki GSX750F (1993) FUEL TANK (P/R) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 44100-43C30-1LE.

44100-43C31-1LE

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P CALIFORNIA ONLY This part replaces 44100-43C60-1LE.

44100-43C61-1LE

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 44100-43C30-36X.

44100-43C31-36X

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P CALIFORNIA ONLY This part replaces 44100-43C60-36X.

44110-19C11-YD8

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL P FOR ILE This part replaces 68111-12C00-14B.

68111-12C30-14B

Unavailable

2

EMBLEM (PURPLE) | MODEL P FOR 36X

68111-12C00-1AP

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 44100-21CE0-33J.

44100-21CF1-33J

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL R CALIFORNIA ONLY This part replaces 44100-21CG0-33J.

44100-21CG1-33J

Unavailable

4

EMBLEM | MODEL R

68111-01D20-C2T

Unavailable

5

PROTECTOR, FUEL TANK RH | MODEL P

44283-19C00

Unavailable

5

PROTECTOR, FUEL TANK LH | MODEL P

44293-19C00

Unavailable

5

PROTECTOR, FUEL TANK | MODEL R

32851-10D00

$5.05

6

CAP SET,FUEL TA This part replaces 44201-01831.

44201-01833

Unavailable

7

CAP SET, FUEL | CALIFORNIA ONLY This part replaces 44201-01841.

44201-01842

Unavailable

8

BOLT

09106-05017

$2.83

9

CUSHION, FUEL TANK FRONT

44511-19C00

Unavailable

10

CUSHION, FUEL TANK SIDE

09321-10011

$2.91

11

BRACKET, REAR

44550-19C00

Unavailable

12

BOLT This part replaces 09137-06017.

01570-0620A

$2.19

13

CUSHION, FUEL TANK SIDE REAR

45149-31300

$3.56

14

BOLT (6X30) This part replaces 09116-06078.

09116-06172

$2.50

15

SPACER This part replaces 09180-06072.

09180-06271

$2.35

16

CUSHION, REAR LOWER

09320-10038

$2.61

17

CUSHION, REAR UPPER

09320-14017

$2.35

18

HOSE, WATER DRAIN

44423-19C00

Unavailable

19

CLIP

09401-08401

$1.54

20

CLAMP This part replaces 09404-08405.

09404-08420

$3.16

21

HEAT SHIELD, CENTER | CALIFORNIA ONLY

49131-20C00

Unavailable

22

HEAT SHIELD, REAR LH | CALIFORNIA ONLY

49132-20C00

Unavailable

23

HEAT SHIELD, REAR RH | CALIFORNIA ONLY

49133-20C00

Unavailable

24

HEAT SHIELD, FRONT LH | CALIFORNIA ONLY

49134-20C00

Unavailable

25

HEAT SHIELD, FRONT RH | CALIFORNIA ONLY

49135-20C00

Unavailable
