1993 Suzuki GSX750F Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1993 Suzuki GSX750F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

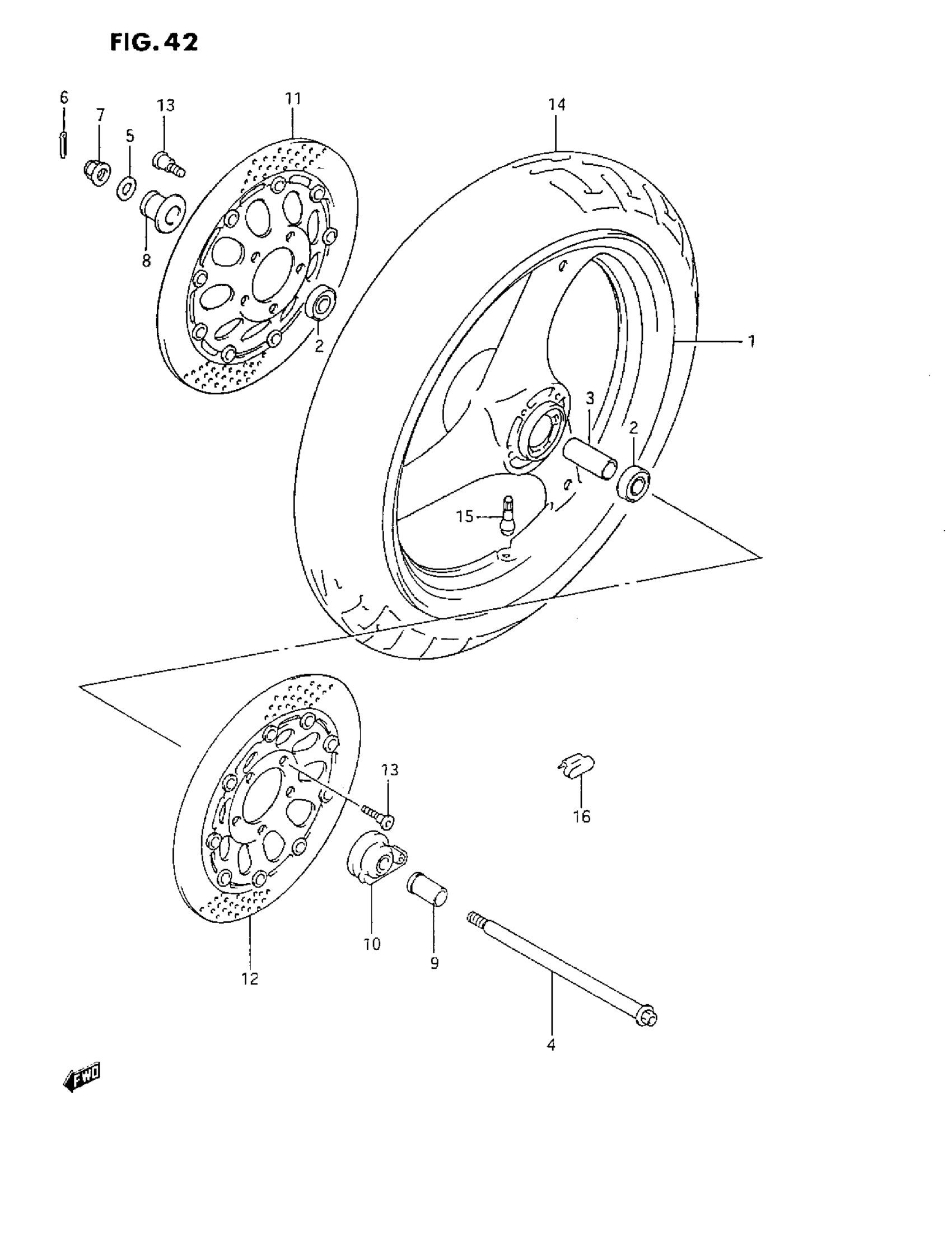

1993 Suzuki GSX750F Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 54111-34C00-12Z.

54111-34C01-12R

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 54111-34C00-12R.

54111-34C01-12R

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 54111-34C00-35B.

54111-34C01-35B

1
Out of stock

1

WHEEL,FR,17M/CX | MODEL R This part replaces 54111-34C00-1DR.

54111-34C01-1DR

1
Out of stock

2

BEARING This part replaces 08123-63027.

08123-6302B

2
Out of stock

3

SPACER

09180-15011

1
Out of stock

4

AXLE, FRONT

54711-19C00

1
Out of stock

5

WASHER | MODEL. K/L/M/N/P This part replaces 08322-21128.

08322-01127

1
Out of stock

5

WASHER | MODEL R

08322-01127

1
Out of stock

6

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

7

NUT

09159-12027

1
Out of stock

8

SPACER, BEARING RH

54740-33410

1
Out of stock

9

SPACER, AXLE LH

54741-19C00

1
Out of stock

10

BOX ASSY,SPEEDO This part replaces 54600-30B02.

54600-30B0V

1
Out of stock

11

DISC, FRONT BRAKE RH | MODEL K This part replaces 59210-32C01.

59210-32C31

1
Out of stock

11

DISC, FRONT BRAKE RH (SILVER/BLACK) | MODEL L/M/N/P/R

59210-32C31

1
Out of stock

12

DISC, FRONT BRAKE LH | MODEL K This part replaces 59220-32C01.

59220-32C31

1
Out of stock

12

DISC, FRONT BRAKE LH (SILVER/BLACK) | MODEL L/M/N/P/R

59220-32C31

1
Out of stock

13

BOLT (8X33) | MODEL K/L/M/N/P This part replaces 09106-08082.

09106-08148

10
Out of stock

13

BOLT (8X33) | MODEL R This part replaces 09106-08125.

09106-08148

10
Out of stock

14

TIRE, FRONT (110/80V17 V250) | MODEL K EXECUTED LOCALLY ->55100-20CBO This part replaces 55100-20CA0.

55100-20CB0

1
Out of stock

14

TIRE, FRONT (110/80VI7 V250) METZELER | MODEL L/M/N EXECUTED LOCALLY ->55110-20CBO

55100-20CB0

1
Out of stock

14

TIRE, FRONT (110/80V17 V250) | MODEL P/R EXECUTED LOCALLY This part replaces 55110-20CB0.

55100-20CB0

1
Out of stock

15

VALVE ASSY, WHEEL RIM | ->43130-24AIL

43130-24A00

1
Out of stock

15

VALVE ASSY, WHEEL RIM (TR412) This part replaces 43130-24A11.

43130-24A00

1
Out of stock

16

BALANCER (10G) | 0-3

55411-00A00

1
Out of stock

16

BALANCER, WHEEL NO.2 | 0-3 This part replaces 55412-00A00.

55412-17G00

1
Out of stock

16

BALANCER (30G) | 0-3 This part replaces 55413-00A00.

55413-00A01

1
Out of stock
