1993 Suzuki GSX750F Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 1993 Suzuki GSX750F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

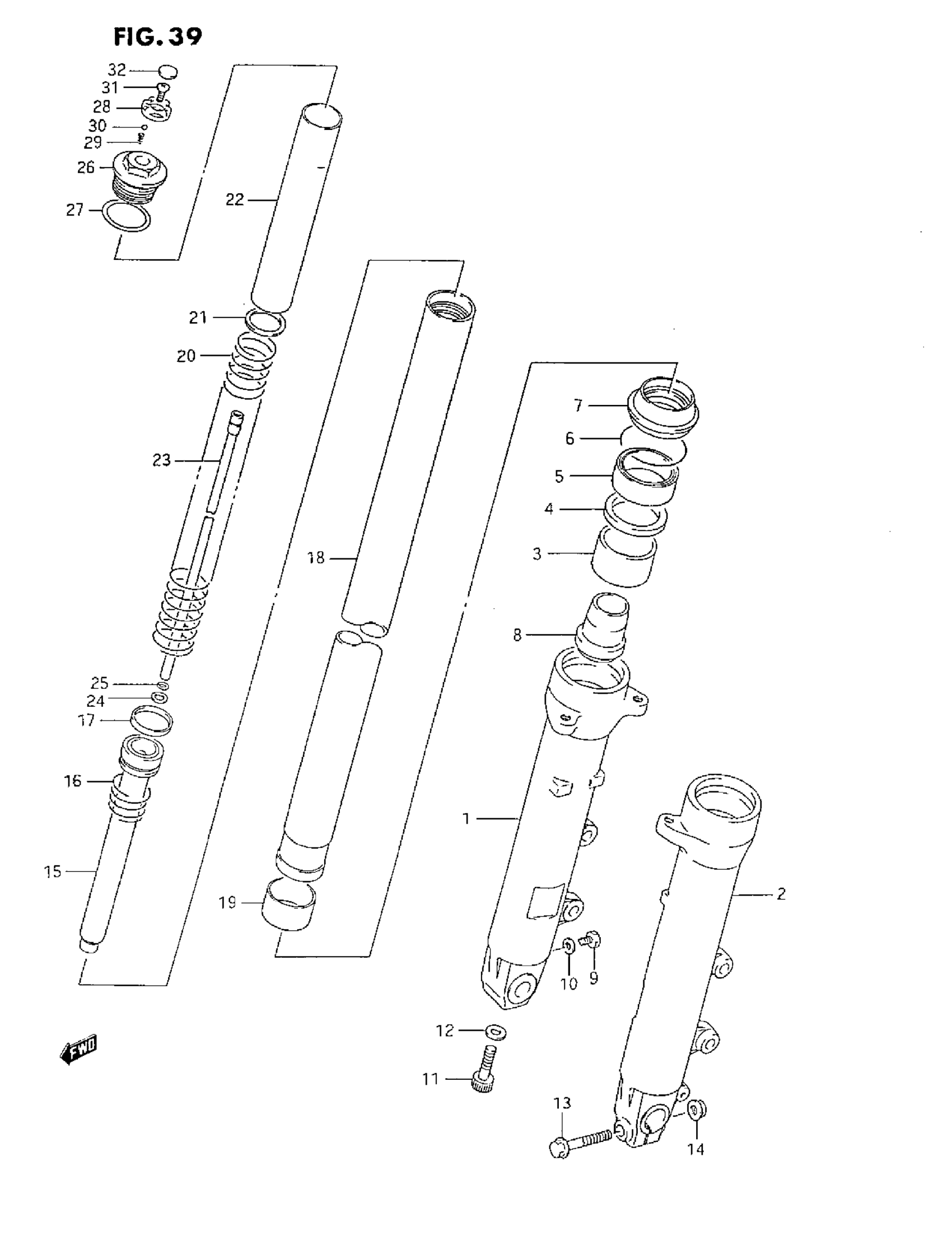

1993 Suzuki GSX750F Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, RH (SILVER) | MODEL K/L This part replaces 51103-20C00.

51103-20C00-13L

1
Out of stock

1

DAMPER ASSY, RH (SILVER) | MODEL M/N/P

51103-20C00-12R

1
Out of stock

1

DAMPER ASSY, RH (SILVER) | MODEL R

51103-20C00-13L

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 51104-20C00.

51104-20C03-13L

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL M/N/P This part replaces 51104-20C00-12R.

51104-20C03-12R

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 51104-20C00-13L.

51104-20C03-13L

1
Out of stock

1

TUBE, OUTER RH (SILVER) | MODEL K/L This part replaces 51130-19C10.

51130-19C10-13L

1
Out of stock

1

TUBE, OUTER RH (SILVER) | MODEL M/N/P This part replaces 51130-19C10-12R.

51130-19C10-13L

1
Out of stock

1

TUBE, OUTER RH (SILVER) | MODEL R

51130-19C10-13L

1
Out of stock

2

TUBE, OUTER LH (SILVER) | MODEL K/L This part replaces 51140-19C10.

51140-19C10-13L

1
Out of stock

2

TUBE, OUTER LH (SILVER) | MODEL M/N/P This part replaces 51140-19C10-12R.

51140-19C10-13L

1
Out of stock

2

TUBE, OUTER LH (SILVER) | MODEL R

51140-19C10-13L

1
Out of stock

3

BUSH, GUIDE

51152-48B31

2
Out of stock

4

SPACER, SEAL

51168-38B00

2
Out of stock

5

OIL SEAL | MODEL K/L/M This part replaces 51153-12C00.

51153-08D00

2
Out of stock

5

OIL SEAL | MODEL N/P/R

51153-08D00

2
Out of stock

6

RING, STOPPER

51556-38B00

2
Out of stock

7

.DUST SEAL | MODEL K/L/M This part replaces 51571-38B00.

51173-15D00

2
Out of stock

7

.DUST SEAL | MODEL N/P/R This part replaces 51173-08D00.

51173-15D00

2
Out of stock

8

PIECE, OIL LOCK | MODEL K/L/M This part replaces 51195-19C10.

51195-20C10

2
Out of stock

8

PIECE, OIL LOCK | MODEL N/P/R

51195-20C10

2
Out of stock

9

BOLT

09100-06011

2
Out of stock

10

GASKET

51183-31030

2
Out of stock

11

BOLT, LOWER

51147-48130

2
Out of stock

12

GASKET

51148-36011

2
Out of stock

13

BOLT, LH This part replaces 01517-08508.

01550-08507

1
Out of stock

14

NUT (CHROME) This part replaces 08316-16088.

08316-10087

1
Out of stock

15

PIPE, SEAT UNDER

51194-20C00

2
Out of stock

16

SPRING, REBOUND

51177-48B31

2
Out of stock

17

RING, PISTON

51196-19C00

2
Out of stock

18

TUBE, INNER

51110-20C00

2
Out of stock

19

BUSH, SLIDE

51121-48B31

2
Out of stock

20

SPRING, MAIN

51171-20C00

2
Out of stock

21

JOINT, SPRING

51192-19C00

2
Out of stock

22

SPACER, SPRING

51176-34C00

2
Out of stock

23

ROD, INNER

52111-19C10

2
Out of stock

24

WASHER

51354-19C10

2
Out of stock

25

O-RING, ROD

51117-19C10

2
Out of stock

26

BOLT, FORK

51351-20C00

2
Out of stock

27

.O-RING

51117-12C00

2
Out of stock

28

PLATE, ADJUSTER

52193-19C10

2
Out of stock

29

SPRING

51118-19C10

6
Out of stock

30

BALL

51835-17C00

6
Out of stock

31

SCREW

51188-19C10

2
Out of stock

32

CAP

51189-19C10

2
Out of stock
