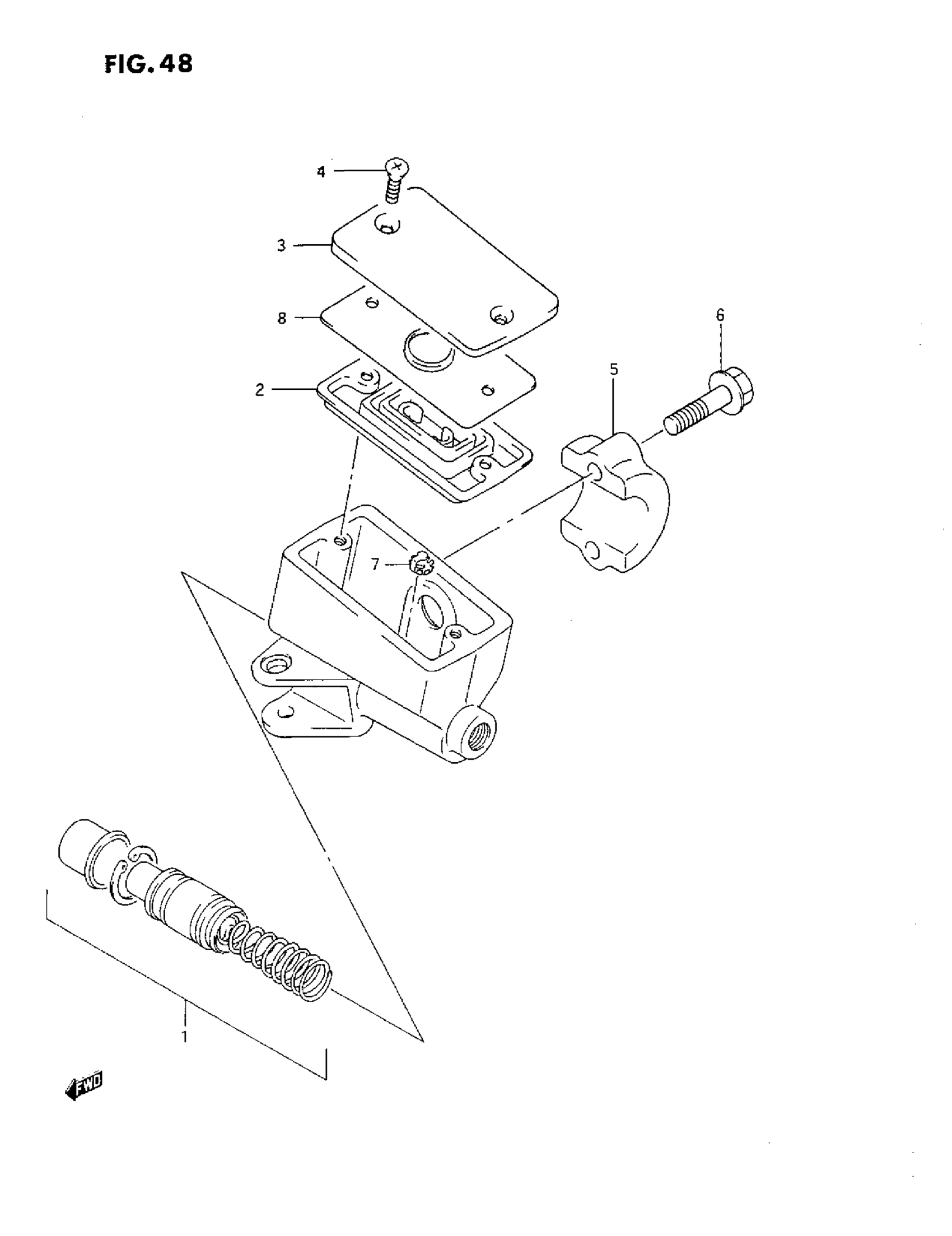

Suzuki GSX750F (1993) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-20C10

$307.13

1

PISTON/CUP SET

59600-45850

$39.48

2

DIAPHRAGM

59667-49460

$9.78

3

CAP | ->59669-41COO ->59668-41COO This part replaces 59669-34C00.

59669-41C00

$32.56

3

CAP

59669-41C00

$32.56

4

SCREW

69689-49300

$1.91

5

HOLDER

59671-19B00

$20.07

6

BOLT HOLDER SET

59675-19C00

$4.02

7

PROTECTOR

59664-48B00

$11.02

8

PLATE

59668-41C00

$9.32
