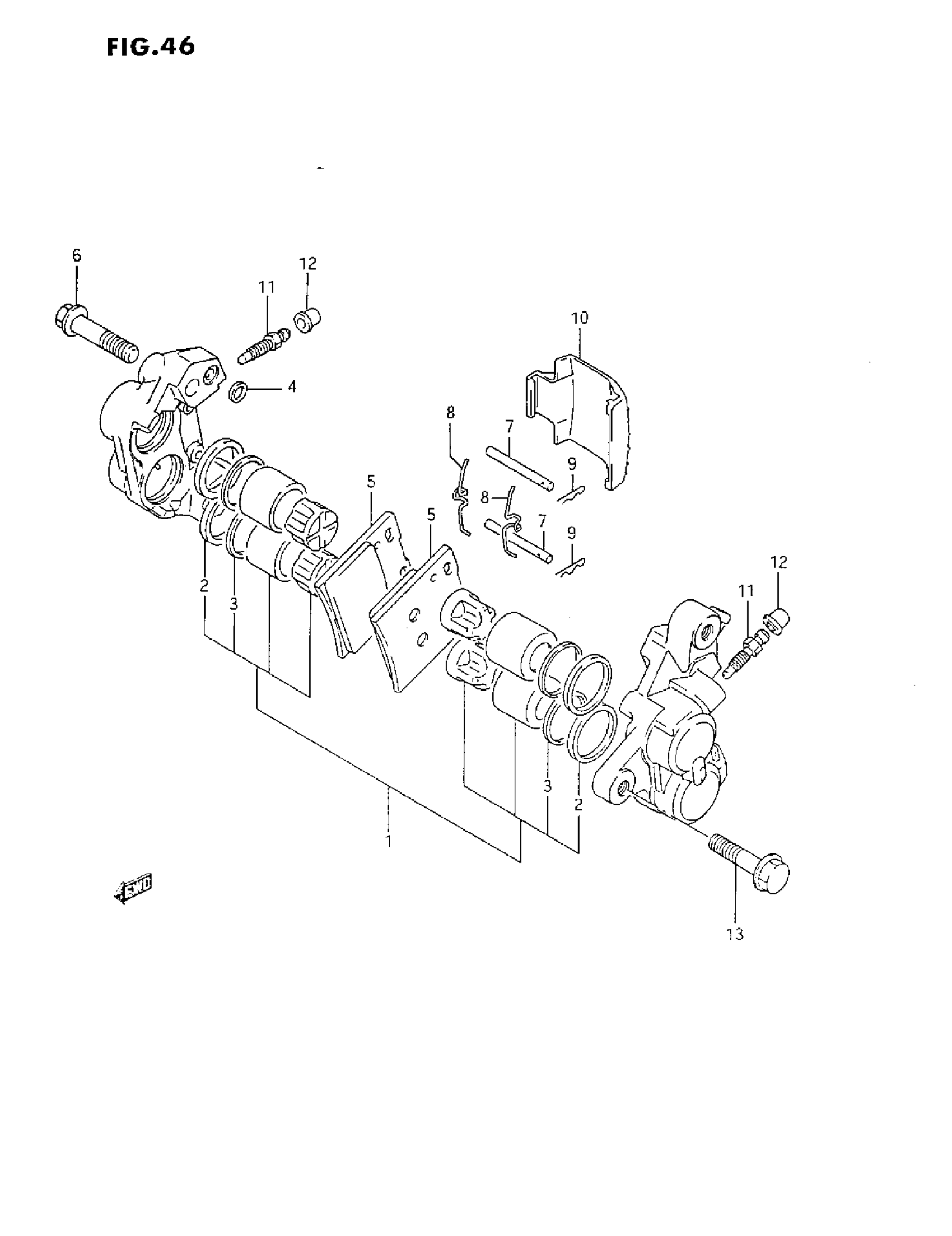

Suzuki GSX750F (1993) FRONT CALIPERS Diagram

#

Description
Price

1

CALIPERS ASSY, RH | MODEL K/L This part replaces 59100-20C00.

59100-20C02

Unavailable

1

CALIPERS ASSY, LH | MODEL K/L

59300-20C00

Unavailable

1

CALIPERS ASSY, RH | MODEL M/N This part replaces 59100-20C01.

59100-20C02

Unavailable

1

CALIPERS ASSY, LH | MODEL M/N This part replaces 59300-20C01.

59300-20C02

Unavailable

1

CALIPERS ASSY, RH | MODEL P/R

59100-20C02

Unavailable

1

CALIPERS ASSY, LH | MODEL P/R

59300-20C02

Unavailable

1

PISTON SET | MODEL K/L This part replaces 59100-19840.

59100-19842

Unavailable

1

PISTON SET | MODEL M/N/P/R This part replaces 59100-19841.

59100-19842

Unavailable

2

SEAL,PISTON This part replaces 59107-04A00.

59107-40F00

$10.95

3

SEAL, WIPER

59108-04A00

$10.77

4

SEAL

69107-34200

$10.71

5

PAD SET This part replaces 59130-20C00.

59100-20820

Unavailable

6

BOLT

59145-16700

$8.83

7

PIN

69141-45000

$5.17

8

SPRING

69143-45001

$6.73

9

.CLIP, PAD PIN

69142-45000

$4.34

10

COVER

59151-04A01

$38.31

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

BOLT (8X35) | MODEL K/L/M/N/P This part replaces 01517-08355.

01550-0835A

$3.04

13

BOLT (8X35) | MODEL R This part replaces 01550-08353.

01550-0835A

$3.04
