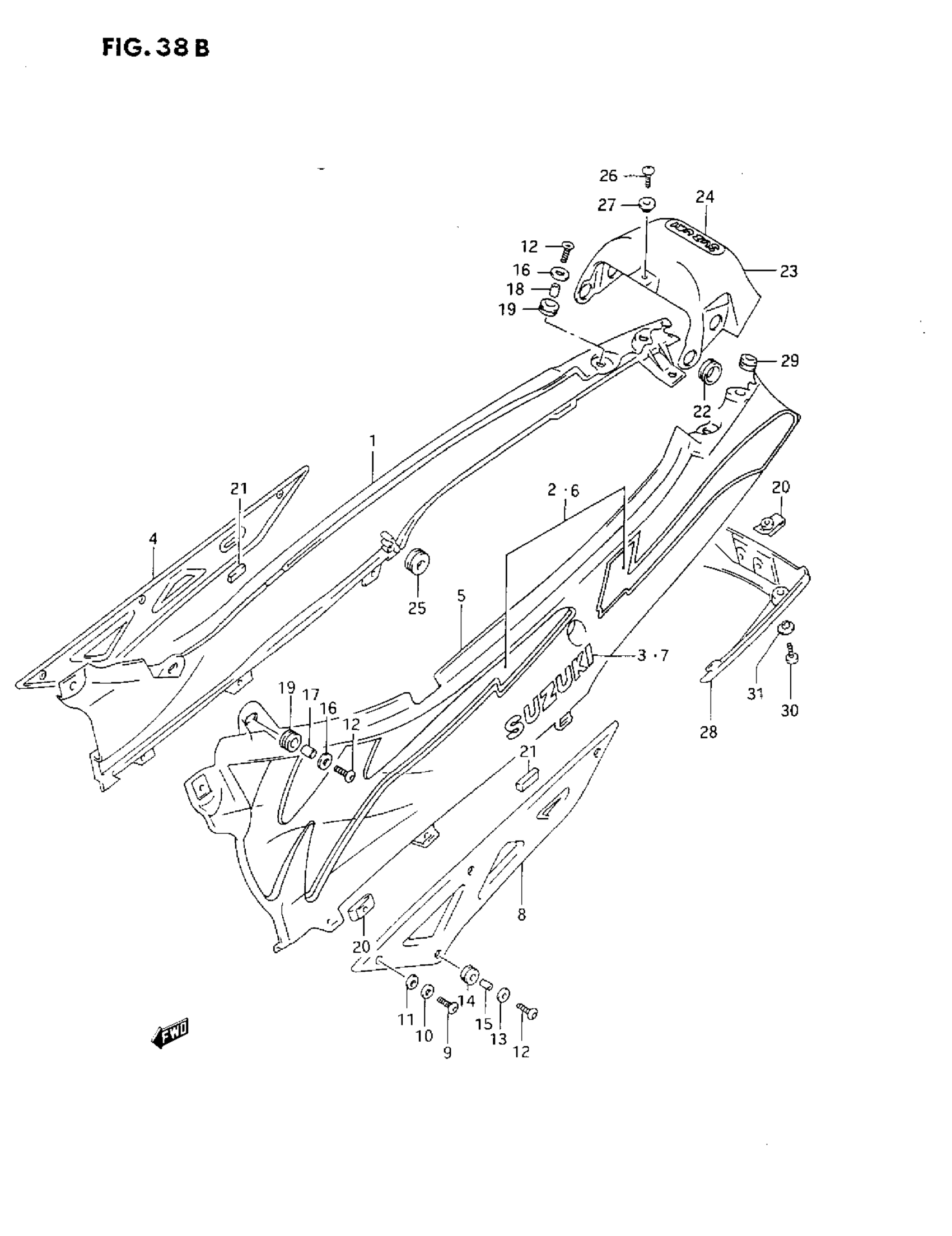

Suzuki GSX750F (1993) FRAME COVER (N) Diagram

#

Description
Price

1

COVER, FRAME RH (BLUE)

47110-21C30-12F

Unavailable

1

COVER, FRAME RH (RED)

47110-21C30-1MW

Unavailable

2

TAPE SET, RH | FOR 12F

68130-20C30-K53

Unavailable

2

TAPE SET, RH | FOR IMW

68130-20C30-K52

Unavailable

3

EMBLEM (SILVER)

68181-32B00-0FP

Unavailable

4

COVER, FRAME LOWER RH

47131-20C00

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 47210-21C30-12F.

47211-20C01

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 47210-21C30-1MW.

47211-20C01

Unavailable

6

TAPE SET, LH | FOR 12F

68140-20C30-K53

Unavailable

6

TAPE SET, LH | FOR 1 MW

68140-20C30-K52

Unavailable

7

EMBLEM (SILVER)

68181-32B00-0FP

Unavailable

8

COVER, FRAME LOWER LH

47231-20C00

Unavailable

9

SCREW, LOWER COVER NO.1

09120-06005

Unavailable

10

.WASHER (6.5X16X1) This part replaces 09160-06003.

09160-06129

$2.30

11

WASHER This part replaces 09161-05016.

09320-06501

$3.60

12

SCREW, LOWER COVER NO.2

09139-06030

$3.70

13

WASHER

09160-06054

$1.62

14

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

15

SPACER

09180-06092

$3.42

16

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

17

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

18

SPACER, REAR

09180-06038

$1.98

19

CUSHION

09320-09016

$1.97

20

PLATE, FITTING

47153-19C01

$7.95

21

CUSHION, LOWER

47161-20C00

Unavailable

22

CUSHION, PILLION RIDER

09308-16006

$2.53

23

COVER, FRAME CENTER (BLUE)

47310-21C00-12F

Unavailable

23

NO DESCRIPTION AVAILABLE This part replaces 47310-21C00-1MW.

47311-20C01

Unavailable

24

EMBLEM (SILVER)

68271-34A00-0FP

Unavailable

25

CUSHION, CENTER BOSS

09320-08018

$3.04

26

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

27

WASHER

09169-06037

$2.45

28

COVER, FRAME REAR

47321-20C00

Unavailable

29

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

30

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

31

WASHER

09169-06037

$2.45
