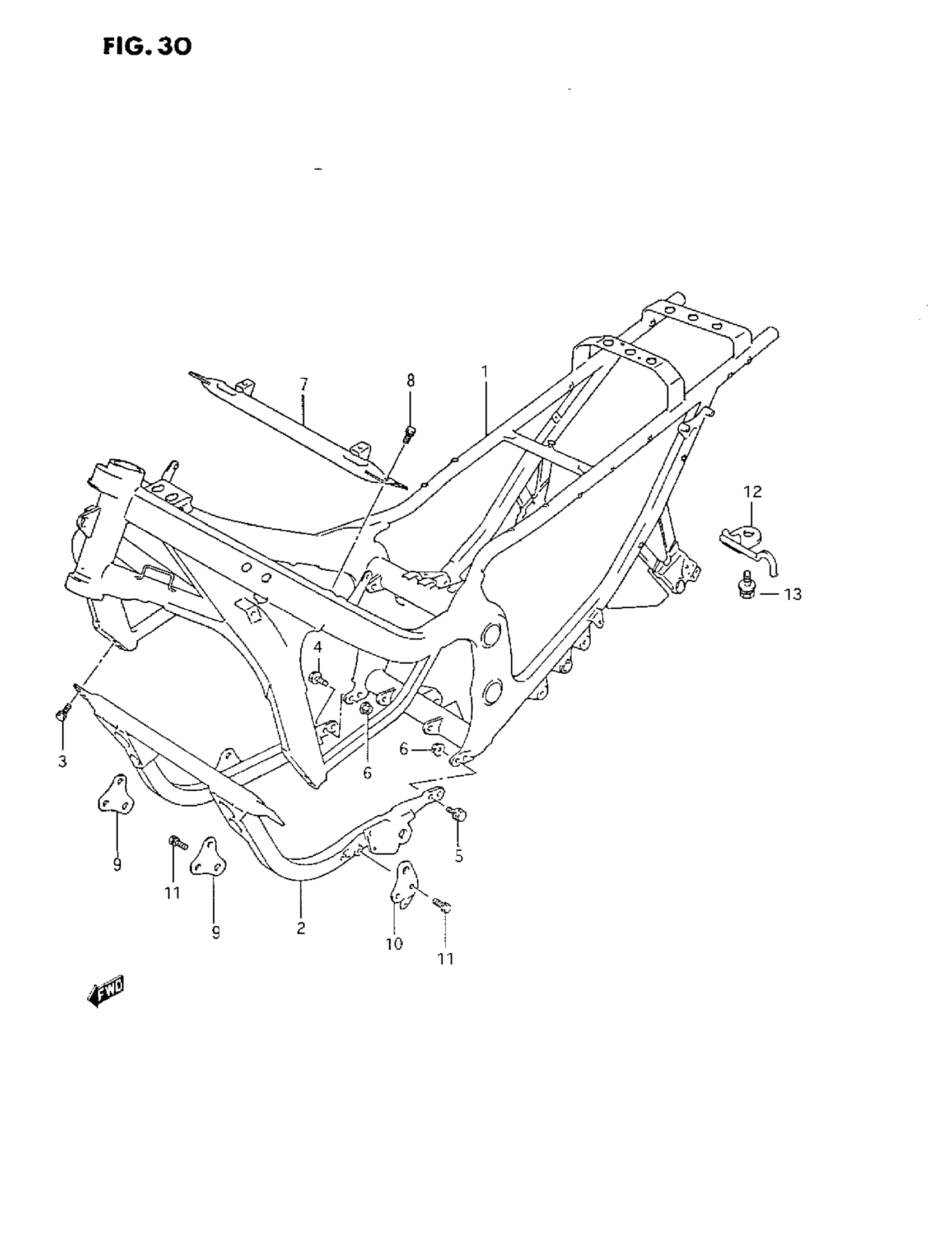

Suzuki GSX750F (1993) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N This part replaces 41101-20810-291.

41101-20850-291

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 41101-20811-291.

41101-20850-291

Unavailable

1

FRAME SET (BLACK) SEE | MODEL R

41101-20850-019

Unavailable

1

FRAME SET (BLACK) | CALIFORNIA ONLY, MODEL K/L/M/N This part replaces 41101-20820-291.

41101-20821-291

Unavailable

1

FRAME SET (BLACK) | CALIFORNIA ONLY, MODEL P

41101-20821-291

Unavailable

1

FRAME SET (BLACK) | CALIFORNIA ONLY, MODEL R

41101-20821-019

Unavailable

2

TUBE, FRAME DOWN (BLACK)

41140-20C00-291

Unavailable

3

BOLT, BRACE | MODEL K This part replaces 01137-08205.

01570-0820A

$3.15

3

BOLT | MODEL L/M/N/P This part replaces 01107-08258.

01500-08257

$2.50

3

BOLT | MODEL R This part replaces 01570-08253.

01570-0825A

$3.15

4

BOLT | MODEL K/L/M/N/P This part replaces 01517-08254.

01550-0825A

$2.32

5

BOLT | MODEL K/L/M/N/P This part replaces 01517-08304.

01550-0830A

$3.04

5

BOLT | MODEL R This part replaces 01550-08303.

01550-0830A

$3.04

6

NUT This part replaces 08319-31085.

08319-3108A

$2.32

7

TUBE, FRAME BRIGE | MODEL K/L This part replaces 41750-19C00.

41750-34C00

Unavailable

7

TUBE, FRAME BRIDGE | MODEL M/N/P/R

41750-34C00

Unavailable

8

BOLT | MODEL K This part replaces 01137-08165.

01570-0816A

$3.03

8

BOLT | MODEL L/M/N/P This part replaces 01137-08168.

01570-08167

$3.85

8

BOLT | MODEL R

09103-08266

$2.71

9

PLATE, NO.1 (BLACK) | MODEL K/L/M/N/P This part replaces 41911-19C00-291.

41911-19C00-019

Unavailable

9

PLATE, N 0.1 (BLACK) | MODEL R

41911-19C00-019

Unavailable

10

PLATE, NO.2 (BLACK) | MODEL K/L/M/N/P This part replaces 41940-20C00-291.

41940-20C00-019

Unavailable

10

PLATE, NO.2 (BLACK) | MODEL R

41940-20C00-019

Unavailable

11

BOLT | MODEL K This part replaces 01137-08165.

01570-0816A

$3.03

11

BOLT | MODEL L/M/N/P This part replaces 01137-08168.

01570-08167

$3.85

11

BOLT | MODEL R This part replaces 01570-08163.

01570-0816A

$3.03

12

ROD, GRIP RH | MODEL K/L/M This part replaces 41620-20C00.

41620-20C02

Unavailable

12

ROD, GRIP RH | MODEL N/P/R This part replaces 41620-20C01.

41620-20C02

Unavailable

12

ROD, GRIP LH | MODEL K/L/M This part replaces 41630-20C00.

41630-20C02

Unavailable

12

ROD, GRIP LH | MODEL N/P/R This part replaces 41630-20C01.

41630-20C02

Unavailable

13

BOLT | MODEL K/L/M/N/P This part replaces 01187-08165.

01580-0816A

$3.30

13

BOLT | MODEL R This part replaces 01580-08163.

01580-0816A

$3.30
