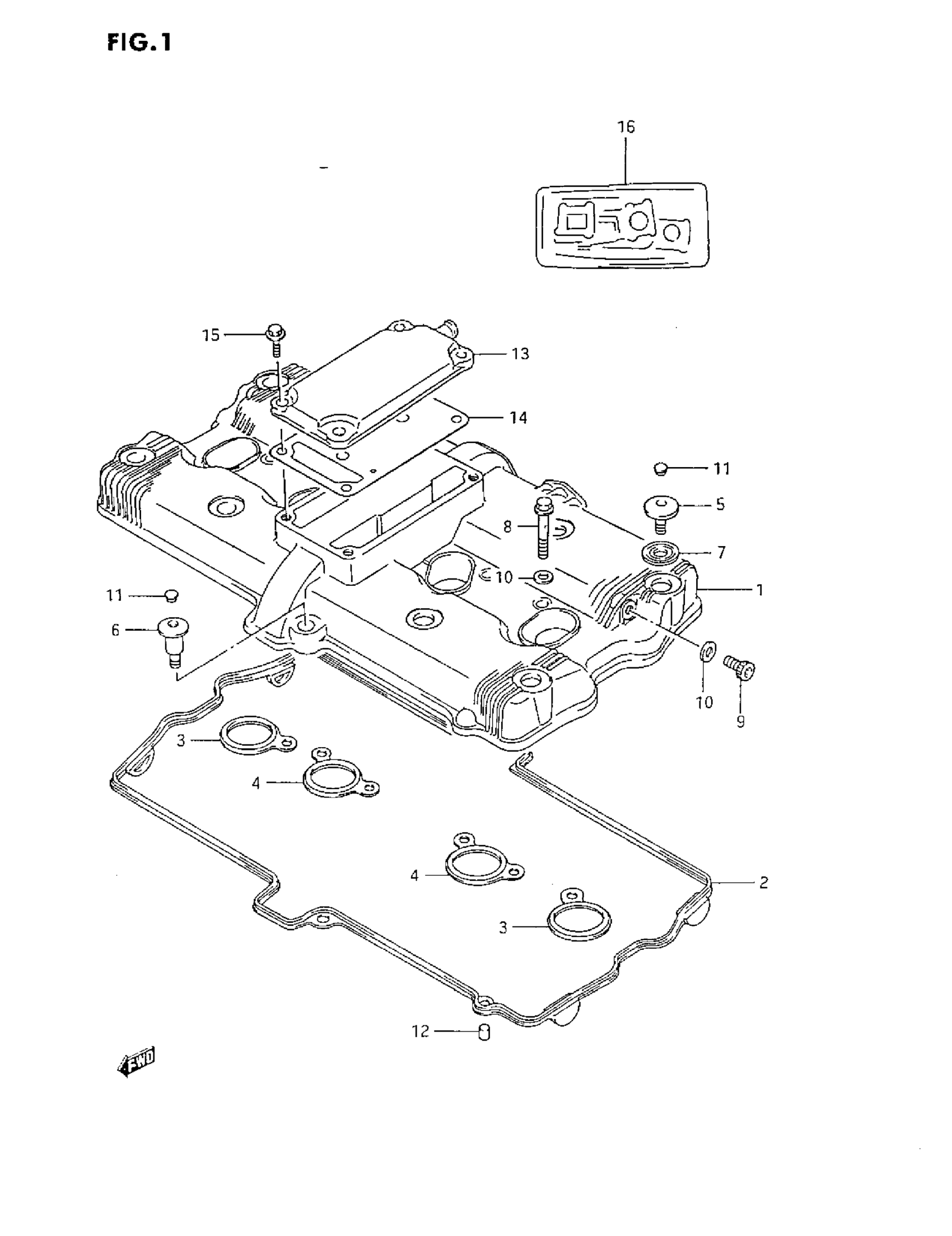

Suzuki GSX750F (1993) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-48B03

Unavailable

2

GASKET,CYLINDER This part replaces 11173-06B02.

11173-06B03

$27.03

3

GASKET,HEAD COV This part replaces 11178-27A01.

11178-27A02

$6.79

4

GASKET,HEAD COV This part replaces 11179-27A02.

11179-27A03

$7.22

5

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

6

BOLT (L:19)

09106-07010

$4.64

7

WASHER

09161-11008

$4.49

8

BOLT AND GASKET This part replaces 09360-08009.

11180-27820

Unavailable

9

BOLT | MODEL K/L/M/N/P This part replaces 07110-08125.

07130-0812A

$3.72

9

BOLT | MODEL R This part replaces 07130-08123.

07130-0812A

$3.72

10

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

11

CAP | MODEL K This part replaces 09250-06008.

09250-06016

$1.96

12

PIN

04221-08129

$1.99

13

COVER, BREATHER

11176-31301

Unavailable

14

GASKET, BREATHER COVER (NA) | MODEL K/L This part replaces 11177-48B00.

11177-48B00-H17

Unavailable

14

GASKET, BREATHER COVER | MODEL M/N/P/R

11177-48B00-H17

Unavailable

15

BOLT | -E.NO.132070 This part replaces 01517-06204.

01550-0620A

$1.97

15

BOLT | E.NO.132071- This part replaces 01517-06207.

01550-06207

$2.30

15

BOLT | MODEL R This part replaces 01550-06203.

01550-0620A

$1.97

16

GASKET SET | MODEL K/L This part replaces 11400-17854.

11401-17836

Unavailable

16

GASKET SET | MODEL M/N This part replaces 11400-17855.

11401-17836

Unavailable

16

GASKET SET | MODEL P/R This part replaces 11400-17859.

11401-17836

Unavailable
