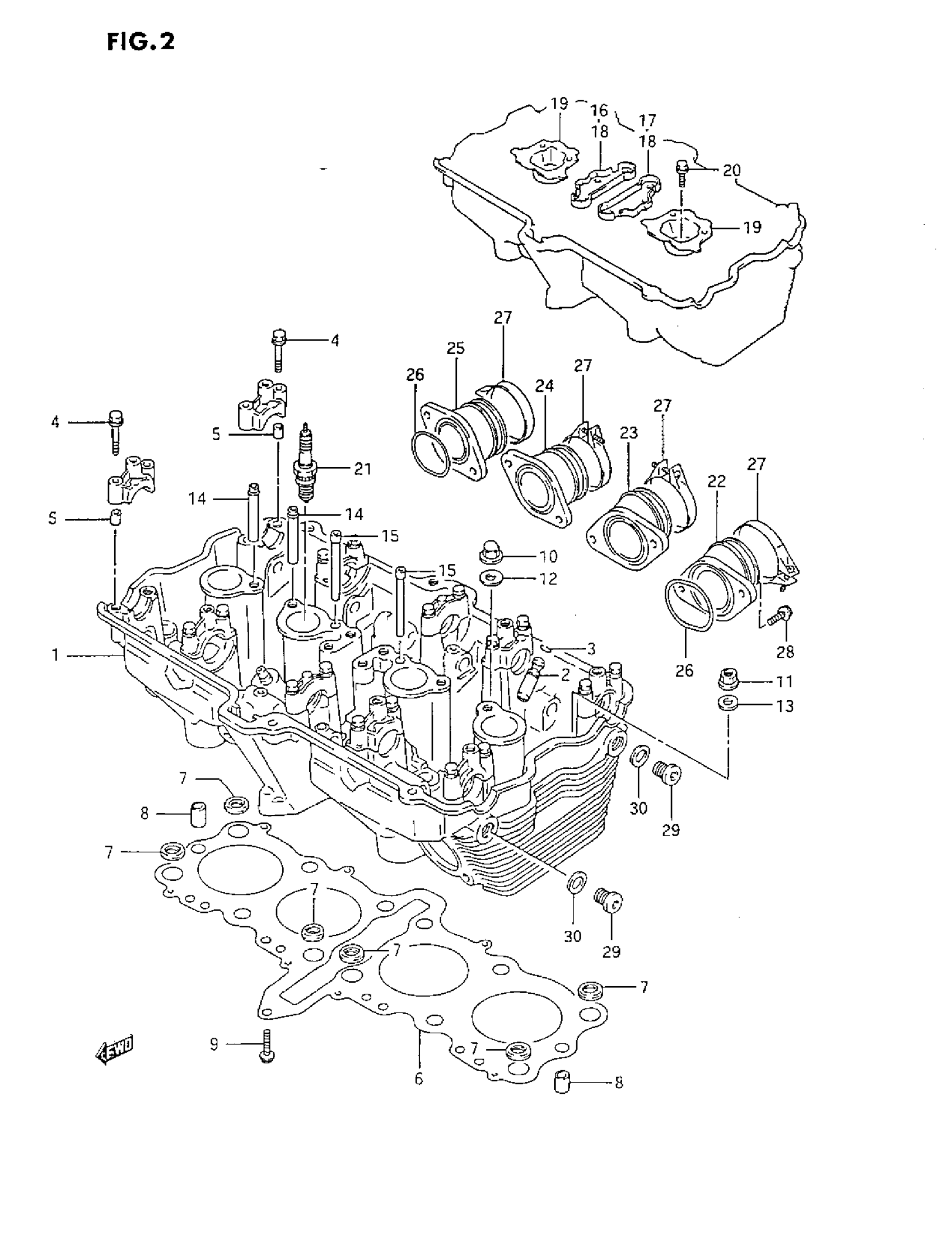

Suzuki GSX750F (1993) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-20C02

Unavailable

1

HEAD ASSY, CYLINDER | CALIFORNIA ONLY

11100-20C12

Unavailable

2

GUIDE, VALVE

11116-06B70

$40.73

3

.RING (10X85)

09381-10004

$1.50

4

BOLT (6X39)

09103-06026

$1.98

5

PIN

09206-08001

$1.78

6

GASKET,CYLINDER This part replaces 11141-17C02.

11141-17C03

Unavailable

7

O-RING

11143-06B00

$6.28

8

PIN

04211-11189

$1.78

9

BOLT | MODEL K/L/M/N/P This part replaces 01517-06254.

01550-0625A

$1.97

9

BOLT | MODEL R This part replaces 01550-06253.

01550-0625A

$1.97

10

NUT

09159-10054

$7.82

11

NUT | MODEL K/L/M/N/P This part replaces 08316-16106.

08316-1010B

$2.66

11

NUT | MODEL R This part replaces 08316-10103.

08316-1010B

$2.66

12

.GASKET (10.2X20X2.3)

09168-10031

$2.03

13

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.26

14

PIPE, OIL NO.1, 2

11131-27A00

$6.38

15

PIPE, OIL NO.3

11133-27A00

Unavailable

16

PLATE, OIL PIPE NO.1 | -E.NO.110712 This part replaces 11135-17C01.

11135-17C10

Unavailable

17

PLATE, OIL PIPE NO.1 | -E.NO.110712 This part replaces 11136-17C01.

11135-17C10

Unavailable

18

PLATE, OIL PIPE NO.1 | E.NO.110713-

11135-17C10

Unavailable

19

PLATE, OIL PIPE, NO.2

11137-17C01

Unavailable

20

BOLT | MODEL K/L/M/N/P

01547-06127

$1.65

20

BOLT | MODEL R This part replaces 01547-06123.

01547-0612B

$1.49

21

SPARK PLUG (NGK, JR9C) | GAP: 024-.028INCHES/.6-.7 MM

09482-00397

$6.35

21

SPARK PLUG (NGK, JR8C) | OPT GAP: 024-.028INCHES/.6-.7 MM

09482-00401

$7.47

22

PIPE, INTAKE, LH | MODEL K/L/M/N This part replaces 13110-17C00.

13101-17C01

$34.54

22

PIPE, INTAKE, LH | MODEL P/R This part replaces 13101-17C00.

13101-17C01

$34.54

23

PIPE ASSY,INTAK | MODEL K/L/M/N This part replaces 13120-17C00.

13102-17C02

Unavailable

23

PIPE ASSY,INTAK | MODEL P/R This part replaces 13102-17C00.

13102-17C02

Unavailable

24

PIPE ASSY,INTAK | MODEL K/L/M/N This part replaces 13130-17C00.

13103-17C02

Unavailable

24

PIPE ASSY,INTAK | MODEL P/R This part replaces 13103-17C00.

13103-17C02

Unavailable

25

PIPE, INTAKE, RH | MODEL K/L/M/N This part replaces 13140-17C00.

13104-17C01

Unavailable

25

PIPE, INTAKE, RH | MODEL P/R This part replaces 13104-17C00.

13104-17C01

Unavailable

26

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

27

CLAMP

09402-52208

$5.36

28

SCREW | MODEL K/L/M/N/P This part replaces 02152-06165.

02112-0616A

$1.49

28

SCREW | MODEL R This part replaces 02112-16163.

02112-1616A

$2.30

29

PLUG, CYLINDER HEAD

09248-14010

$5.50

30

GASKET

09168-14004

$1.83
