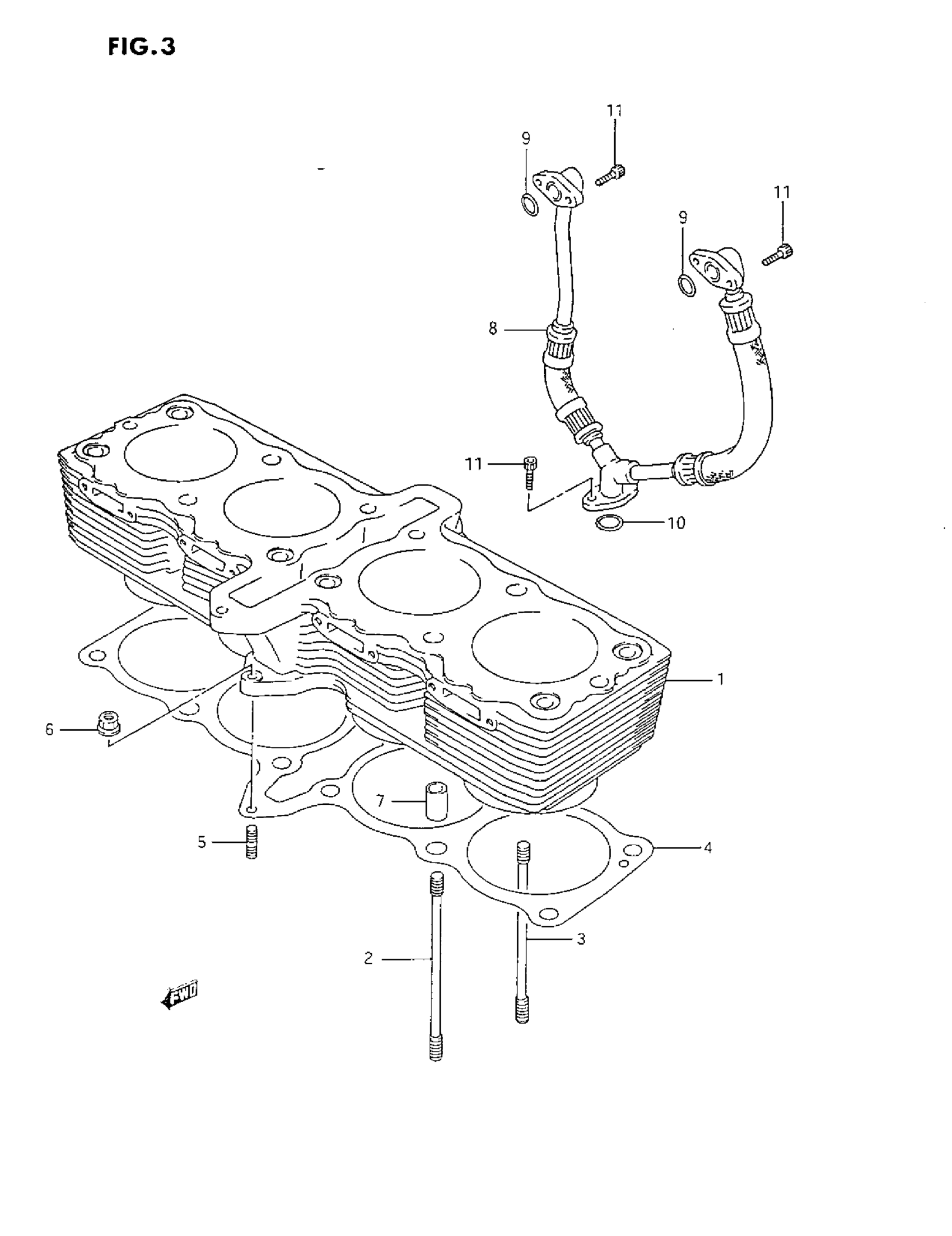

Suzuki GSX750F (1993) CYLINDER Diagram

#

Description
Price

1

CYLINDER

11210-20C00

Unavailable

1

CYLINDER | CALIFORNIA ONLY

11210-20C10

Unavailable

2

STUD BOLT (L:144)

09108-10097

Unavailable

3

STUD BOLT (L:137)

09108-10096

Unavailable

4

GASKET, CYLINDER | MODEL K/L/M/N This part replaces 11241-27A02.

11241-27A04

$17.36

4

GASKET, CYLINDER | MODEL P/R This part replaces 11241-27A03.

11241-27A04

$17.36

5

STUD BOLT This part replaces 01421-06205.

01421-0620A

$1.91

6

NUT | MODEL K/L/M/N/P This part replaces 08316-16064.

08316-1006B

$2.50

6

NUT | MODEL R This part replaces 08316-10063.

08316-1006B

$2.50

7

PIN This part replaces 09206-13006.

09206-13017

$7.61

8

HOSE, OIL HEAD COOLER | MODEL K/L/M/N/P This part replaces 11328-17C01.

11328-17C03

Unavailable

8

HOSE, OIL HEAD COOLER | MODEL R This part replaces 11328-17C02.

11328-17C03

Unavailable

9

O-RING

09280-14011

$4.77

10

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

11

BOLT | MODEL K/L/M/N/P This part replaces 07110-06165.

07130-0616B

$2.39

11

BOLT | MODEL R This part replaces 07130-06163.

07130-0616B

$2.39
