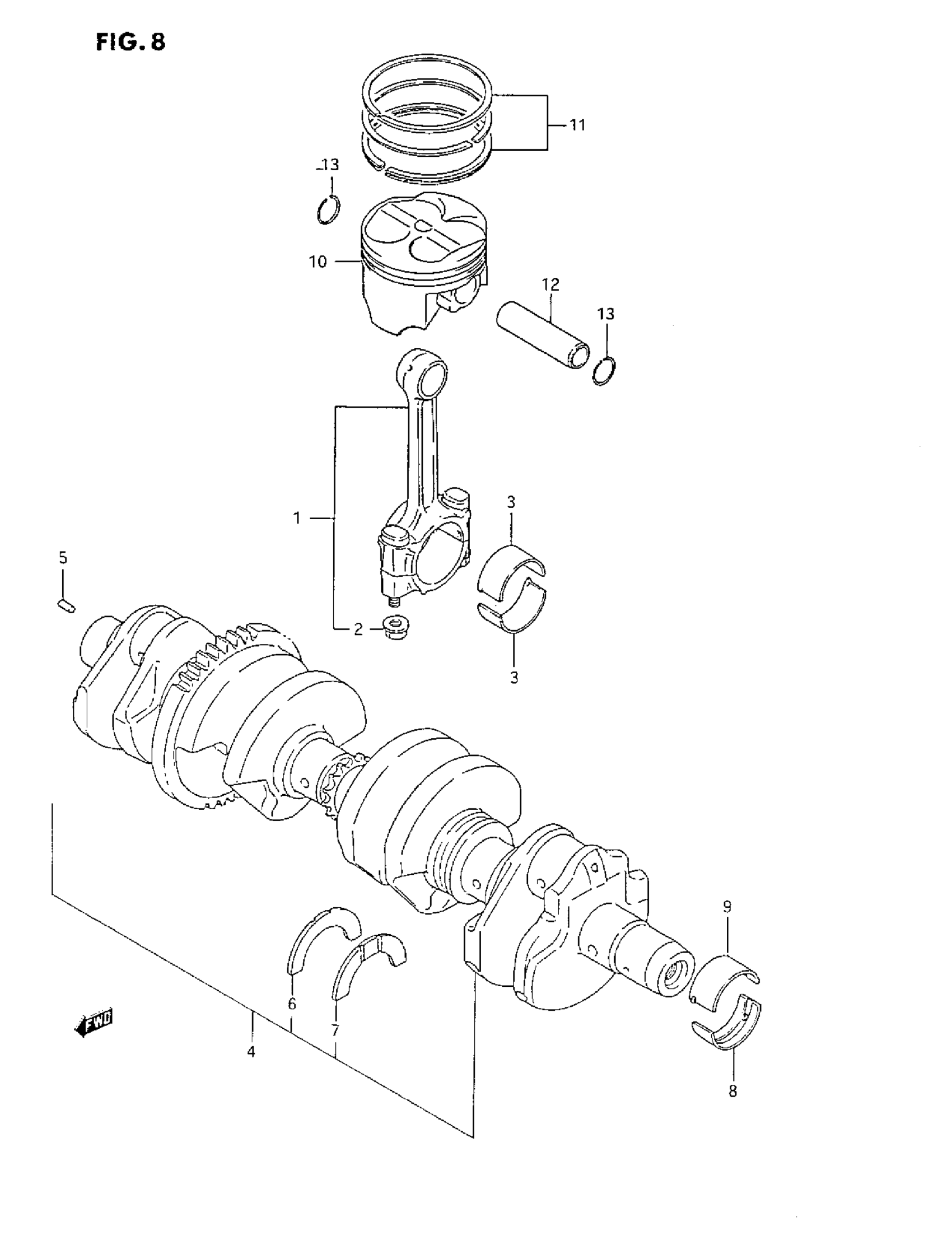

Suzuki GSX750F (1993) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING

12160-17C00

Unavailable

2

NUT

09159-09001

$4.68

3

BEARING, CRANK PIN (GREEN) This part replaces 12164-17C00-0A0.

12164-31E00-0A0

$23.00

3

BEARING, CRANK PIN (BLACK) This part replaces 12164-17C00-0B0.

12164-31E00-0B0

$19.55

3

BEARING, CRANK PIN (BROWN) This part replaces 12164-17C00-0C0.

12164-31E00-0C0

$23.00

3

BEARING, CRANK PIN (YELLOW) This part replaces 12164-17C00-0D0.

12164-31E00-0D0

$23.00

4

CRANKSHAFT SET

12000-17810

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

BEARING, THRUST RH (GREEN)

12228-48B00-0E0

$9.34

6

BEARING KIT | (NOT SHOWN)

99104-BRGKT-004

Unavailable

7

BEARING, THRUST LH (RED)

12228-48B00-0C0

$11.35

7

BEARING, THRUST LH (GREEN)

12228-48B00-0E0

$9.34

7

BEARING, THRUST LH (BLACK)

12228-48B00-0H0

$9.66

8

BEARING, CRANKSHAFT (GREEN) | LOWER

12229-06B00-0A0

$12.00

8

BEARING, CRANKSHAFT (BLACK)

12229-06B00-0B0

$10.21

8

BEARING, CRANKSHAFT (BROWN)

12229-06B00-0C0

$12.00

8

BEARING, CRANKSHAFT (YELLOW)

12229-06B00-0D0

$12.22

9

BEARING, CRANKSHAFT (GREEN) | UPPER

12229-06B10-0A0

$12.00

9

BEARING, CRANKSHAFT (BLACK)

12229-06B10-0B0

$10.21

9

BEARING, CRANKSHAFT (BROWN)

12229-06B10-0C0

$10.21

9

BEARING, CRANKSHAFT (YELLOW)

12229-06B10-0D0

$12.45

10

PISTON This part replaces 12111-20C01-0F0.

12111-20C11-0F0

Unavailable

10

PISTON SET (OS:0.5) | OPT This part replaces 12111-20C01-050.

12100-20C00-050

Unavailable

10

PISTON SET (OS:1.0) | OPT This part replaces 12111-20C01-100.

12100-20C00-100

Unavailable

11

RING SET, PISTON

12140-17C12

Unavailable

11

RING SET, PISTON (OS:0.5) | OPT

12140-17C12-050

Unavailable

11

RING SET, PISTON (OS:1.0 ) | OPT

12140-17C12-100

Unavailable

12

PIN, PISTON

12151-17C00

$18.43

13

RING,SNAP

09381-19001

$2.29
