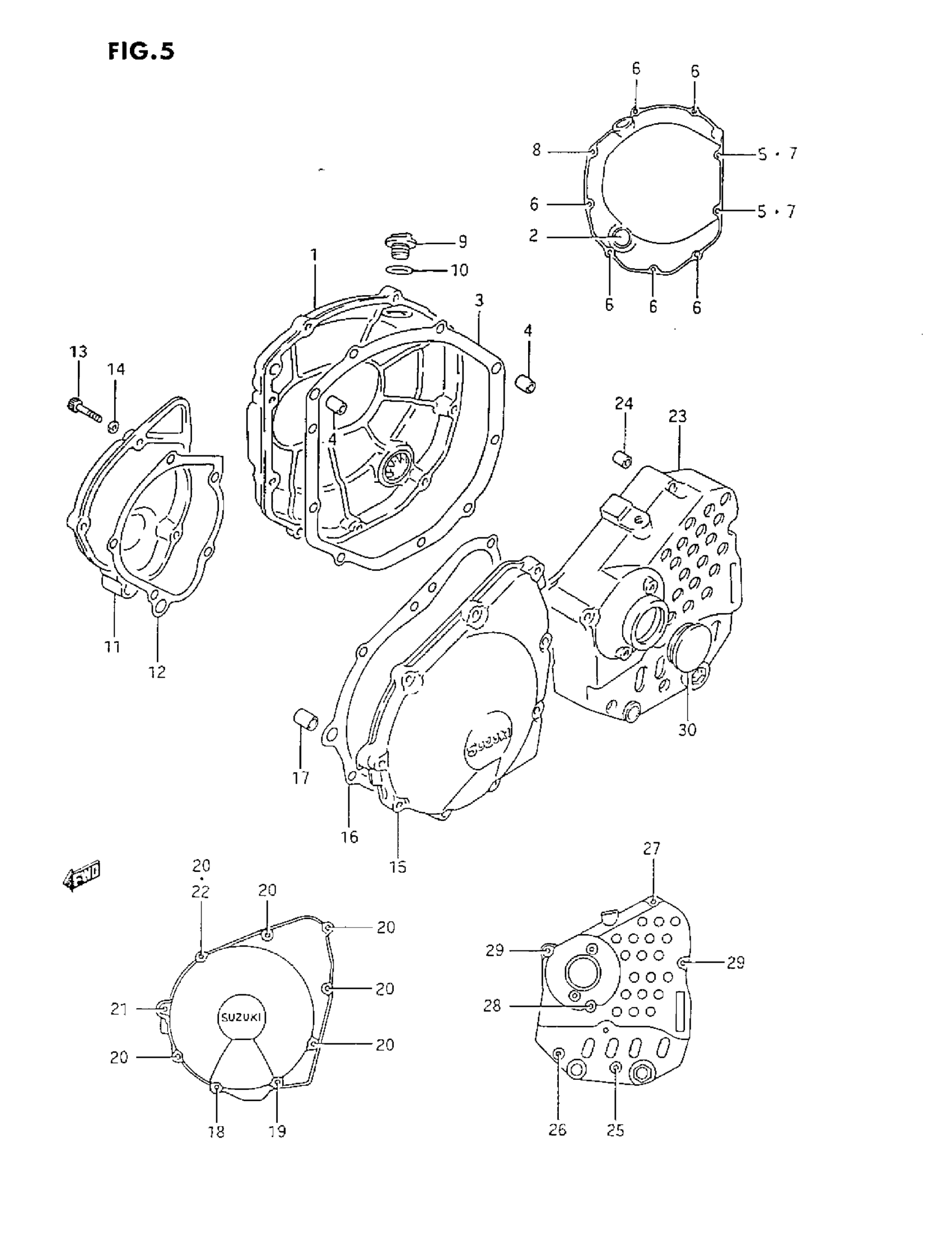

Suzuki GSX750F (1993) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-20C00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER | MODEL K/L This part replaces 11482-27A01.

11482-27A20

$14.20

3

GASKET, CLUTCH COVER | MODEL M/N This part replaces 11482-27A10.

11482-27A20

$14.20

3

GASKET, CLUTCH COVER | MODEL P/R

11482-27A20

$14.20

4

PIN

04211-09189

$1.65

5

GASKET

09168-06024

$2.20

6

BOLT | MODEL K/L/M/N/P This part replaces 07110-06255.

07130-0625B

$3.04

6

BOLT | MODEL R This part replaces 07130-06253.

07130-0625B

$3.04

7

BOLT | MODEL K/L/M/N/P This part replaces 07110-06305.

07130-0630B

$3.37

7

BOLT | MODEL R This part replaces 07130-06303.

07130-0630B

$3.37

8

BOLT | MODEL K/L/M/N/P This part replaces 07110-06355.

07130-0635B

$3.37

8

BOLT | MODEL R This part replaces 07130-06353.

07130-0635B

$3.37

9

.PLUG This part replaces 09259-20015.

09259-20008-XC0

$7.50

10

O-RING

09280-17003

$1.65

11

COVER,SIGNAL GE | MODEL K/L/M/N This part replaces 11381-48B00.

11381-48B02

Unavailable

11

COVER,SIGNAL GE | MODEL P/R This part replaces 11381-48B01.

11381-48B02

Unavailable

12

GASKET | MODEL K/L This part replaces 11491-27A00.

11491-27A30

$8.40

12

GASKET | MODEL M/N This part replaces 11491-27A10.

11491-27A30

$8.40

12

GASKET | MODEL P/R This part replaces 11491-27A20.

11491-27A30

$8.40

13

BOLT,6X23 | MODEL K/L/M/N/P This part replaces 09106-06059.

09106-06059-XC0

Unavailable

13

BOLT | MODEL R

09106-06082

$2.62

14

GASKET

09168-06024

$2.20

15

COVER, STARTER GEAR

11351-20C00

$202.82

16

GASKET, GEAR COVER | MODEL K/L This part replaces 11483-27A01.

11483-27A20

$11.19

16

GASKET, GEAR COVER | MODEL M/N This part replaces 11483-27A10.

11483-27A20

$11.19

16

GASKET, STARTER GEAR COVER | MODEL P/R

11483-27A20

$11.19

17

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

18

BOLT | MODEL K/L/M/N/P This part replaces 07110-06165.

07130-0616B

$2.39

18

BOLT | MODEL R This part replaces 07130-06163.

07130-0616B

$2.39

19

BOLT, FRONT BRG HOUSING | MODEL K/L/M/N/P This part replaces 07110-06205.

07130-0620B

$3.05

19

BOLT, FRONT BRG HOUSING | MODEL R This part replaces 07130-06203.

07130-0620B

$3.05

20

BOLT | MODEL K/L/M/N/P This part replaces 07110-06255.

07130-0625B

$3.04

20

BOLT | MODEL R This part replaces 07130-06253.

07130-0625B

$3.04

21

BOLT, STATOR | MODEL K/L/M/N/P This part replaces 07110-06405.

07130-0640B

$3.38

21

BOLT, STATOR | MODEL R This part replaces 07130-06403.

07130-0640B

$3.38

22

GASKET

09168-06024

$2.20

23

COVER, ENGINE SPROCKET | MODEL K/L/M/N This part replaces 11361-20C00.

11361-20C02

Unavailable

23

COVER, ENGINE SPROCKET | MODEL P/R This part replaces 11361-20C01.

11361-20C02

Unavailable

24

PIN

04211-09129

$1.65

25

BOLT, STATOR | MODEL K/L/M/N/P This part replaces 07110-06405.

07130-0640B

$3.38

25

BOLT, STATOR | MODEL R This part replaces 07130-06403.

07130-0640B

$3.38

26

BOLT | MODEL K/L/M/N/P This part replaces 07110-06305.

07130-0630B

$3.37

26

BOLT | MODEL R This part replaces 07130-06303.

07130-0630B

$3.37

27

BOLT This part replaces 07110-06505.

07130-0650B

$4.10

27

BOLT | MODEL R This part replaces 07130-06503.

07130-0650B

$4.10

27

BOLT | CALIFORNIA ONLY MODEL K/L/M/N/P This part replaces 07110-06705.

07130-0670B

$3.89

27

BOLT | CALIFORNIA ONLY MODEL R This part replaces 07130-06703.

07130-0670B

$3.89

28

BOLT | MODEL K/L/M/N/P This part replaces 07110-06655.

07130-0665B

$3.79

28

BOLT | MODEL R This part replaces 07130-06653.

07130-0665B

$3.79

29

BOLT | MODEL K/L/M/N/P This part replaces 07110-06705.

07130-0670B

$3.89

29

BOLT | MODEL R This part replaces 07130-06703.

07130-0670B

$3.89

30

CAP, CLUTCH RELEASE

09250-30003

$3.89
