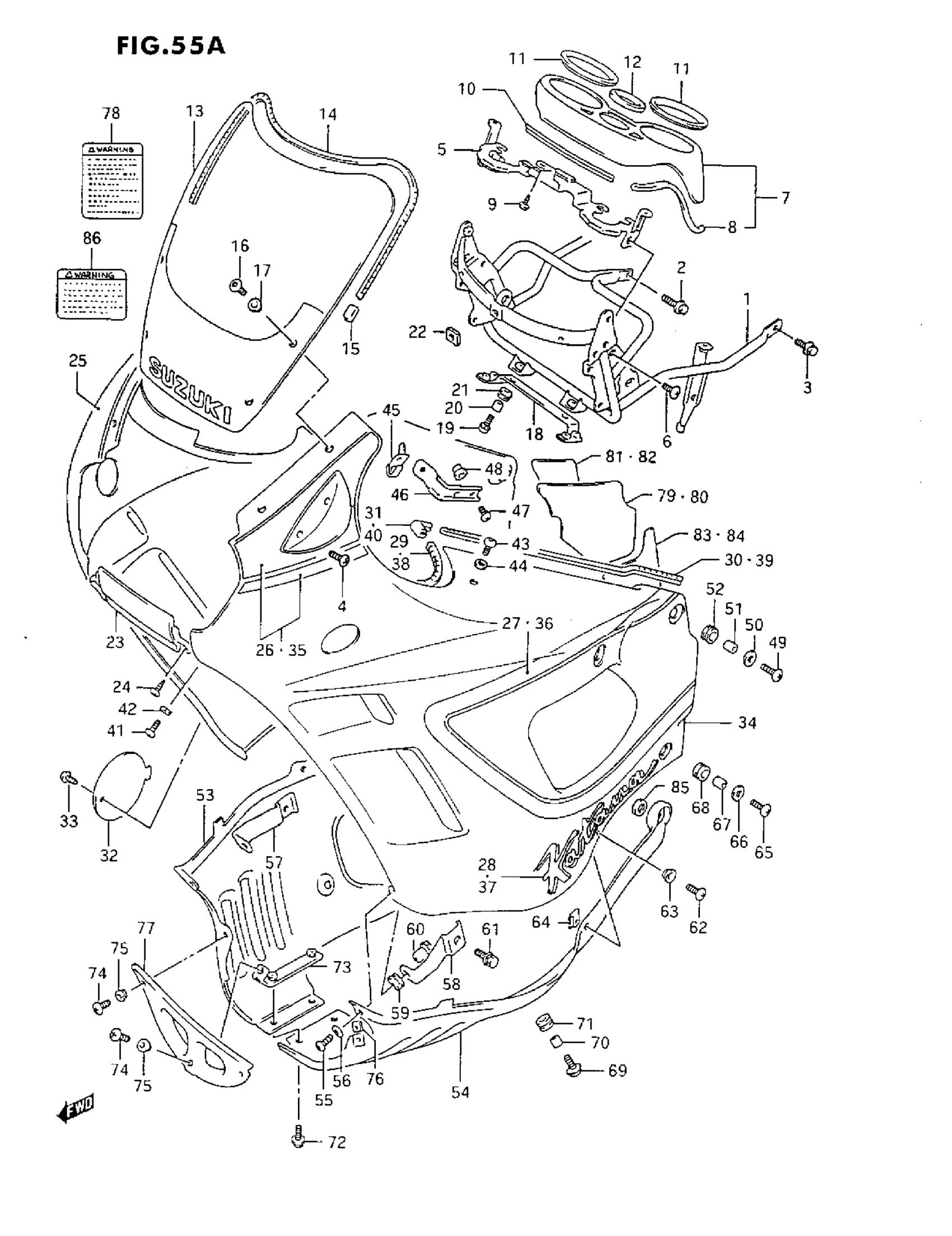

Suzuki GSX750F (1993) COWLING (L) Diagram

BRACE, COWLING This part replaces 94510-20C00.

94510-20C20

Unavailable

BRACE, COWLING | CALIFORNIA ONLY This part replaces 94510-20C10.

94510-20C30

Unavailable

BOLT This part replaces 01517-08205.

01550-0820A

$2.23

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

SCREW

02142-06127

$1.49

PLATE, METER

94520-20C00

Unavailable

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

COVER, METER This part replaces 94420-20C00.

94420-20C02

Unavailable

MOLDING, LICENSE HOLDER This part replaces 94635-19C10.

94635-19C00

$8.53

SCREW This part replaces 03541-05085.

03541-0508A

$1.49

MOLDING, METER

94527-19C00

$7.67

CUSHION, SPEEDOMETER

94426-20C00

Unavailable

CUSHION, FUEL METER

94427-20C00

Unavailable

WINDOW

94610-20C00

Unavailable

MOLDING This part replaces 94631-20C00.

94631-49300

$18.86

CAP

94637-19C00

Unavailable

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

$2.90

WASHER (5.2X11.0X1.0)

09161-05010

$2.45

PLATE, CENTER

94460-19C00

Unavailable

SCREW

09136-06081

$2.26

SPACER This part replaces 09180-06167.

09180-06286

$2.50

CUSHION

09320-10015

$2.54

CUSHION This part replaces 94638-19C00.

63191-25C00

$3.05

PANEL, CENTER (SILVER) | FOR 3WC

94421-19C01-0FP

Unavailable

PANEL, CENTER (BLACK) | FOR 3CH

94421-19C01-33J

Unavailable

SCREW This part replaces 02142-05128.

02142-05127

$1.97

NO DESCRIPTION AVAILABLE This part replaces 94401-20C61-3WC.

94401-20C62-3WC

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 94401-20C61-3CH.

94430-19C02-3CH

Unavailable

TAPE SET, RH | FOR 3WC

68680-20C00-3CG

Unavailable

TAPE SET, RH | FOR 3CH

68680-20C00-3VN

Unavailable

TAPE, RH | FOR 3WC

68685-20C11-3VV

Unavailable

TAPE, RH | FOR 3CH

68685-20C11-3CG

Unavailable

EMBLEM, RH (KATANA) | FOR 3WC

68681-20C10-3VT

Unavailable

EMBLEM, RH (KATANA) | FOR 3CH

68681-20C10-3WD

Unavailable

COVER, METER SIDE RH (SILVER) | FOR 3WC WITH OUT DRAWING

94433-19C01-0FP

Unavailable

COVER, METER SIDE RH (BLACK) | FOR 3CH WITH OUT DRAWING

94433-19C01-33J

Unavailable

SCREW | WITH OUT DRAWING This part replaces 03541-04105.

03541-0410A

$1.68

MOLDING This part replaces 94631-19C10.

94631-49310

Unavailable

MOLDING

94635-19C00

$8.53

JOINT

94438-19C00

Unavailable

NO DESCRIPTION AVAILABLE | FOR 3WC This part replaces 94435-19C01-0FP.

94435-19C01

Unavailable

LID, OIL (BLACK) | FOR 3CH

94435-19C01-33J

Unavailable

SCREW

09139-06030

$3.70

NO DESCRIPTION AVAILABLE This part replaces 94402-20C61-3WC.

94402-20C62-3WC

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 94402-20C61-3CH.

94440-19C02-3CH

Unavailable

COVER ASSY, COWLING LH (SILVER/BLACK) | CALIFORNIA ONLY

94402-20C51-3WC

Unavailable

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 94402-20C51-3CH.

94402-20C52-3CH

Unavailable

TAPE SET, LH | FOR 3WC

68690-20C00-3CG

Unavailable

TAPE SET, LH | FOR 3CH

68690-20C00-3VN

Unavailable

TAPE, LH | FOR 3WC

68695-20C11-3VV

Unavailable

TAPE, LH | FOR 3CH

68695-20C11-3CG

Unavailable

TAPE, LH | CALIFORNIA ONLY FOR 3WC

68695-20C20-3VV

Unavailable

TAPE, LH | CALIFORNIA ONLY FOR 3CH

68695-20C20-3CG

Unavailable

EMBLEM, LH (KATANA) | FOR 3WC

68681-20C10-3VT

Unavailable

EMBLEM, LH (KATANA) | FOR 3CH

68681-20C10-3WD

Unavailable

COVER, METER SIDE LH (SILVER) | FOR 3WC WITH OUT DRAWING

94443-19C01-0FP

Unavailable

COVER, METER SIDE LH (BLACK) | FOR 3WC WITH OUT DRAWING

94443-19C01-33J

Unavailable

SCREW | WITH OUT DRAWING This part replaces 03541-04105.

03541-0410A

$1.68

MOLDING This part replaces 94631-19C10.

94631-49310

Unavailable

MOLDING

94635-19C00

$8.53

JOINT

94438-19C00

Unavailable

SCREW, FRONT

09139-06029

$5.36

WASHER

09160-06036

$2.28

SCREW, UPPER

09139-06030

$3.70

WASHER

09161-06021

$2.83

BRACKET, UPPER RH

94560-19C00

Unavailable

BRACKET, UPPER LH

94570-19C00

Unavailable

SCREW

09125-06055

$2.34

NUT

94573-19C00

Unavailable

SCREW

09139-06029

$5.36

WASHER

09160-06036

$2.28

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

CUSHION

09320-09016

$1.97

COVER, UNDER RH (SILVER) | FOR 3WC

94471-19C00-0FP

Unavailable

COVER, UNDER RH (BLACK) | FOR 3CH

94471-19C00-33J

Unavailable

COVER, UNDER, LH (SILVER) | FOR 3WC

94481-19C00-0FP

Unavailable

COVER, UNDER, LH (BLACK) | FOR 3CH

94481-19C00-33J

Unavailable

SCREW, FRONT

09139-06042

$5.55

WASHER

09160-06036

$2.28

BRACKET, UNDER, RH

94531-19C00

Unavailable

BRACKET, UNDER, LH

94532-19C00

Unavailable

CUSHION

09320-10015

$2.54

NUT

94590-19C00

Unavailable

BOLT This part replaces 01137-06165.

01570-0616A

$2.23

SCREW

09139-05025

$2.05

WASHER

09161-05017

$3.18

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

SCREW, REAR

09139-06029

$5.36

WASHER

09160-06036

$2.28

SPACER

09180-06116

Unavailable

CUSHION

09320-09016

$1.97

SCREW, LOWER

09136-06081

$2.26

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

CUSHION, LOWER

09320-09016

$1.97

SCREW This part replaces 02142-15165.

02142-0516A

$1.49

BRACKET, LOWER

94580-19C00

Unavailable

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

WASHER

09161-05017

$3.18

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

COVER, UNDER, FRONT (BLACK)

94475-19C01

Unavailable

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

SHEET, BALANCER, RH

94573-20C00

Unavailable

SHEET, BALANCER, LH

94583-20C00

Unavailable

CUSHION, RH

94576-20C00

Unavailable

CUSHION, LH

94586-20C00

Unavailable

SHEET, BALANCER LOWER, RH

94574-20C00

Unavailable

SHEET, BALANCER LOWER, LH

94584-20C00

Unavailable

SHEET, BALANCER LOWER, LH | CALIFORNIA ONLY

94584-20C10

Unavailable

CUSHION, UNDER, REAR

94639-20C00

$3.10

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25
