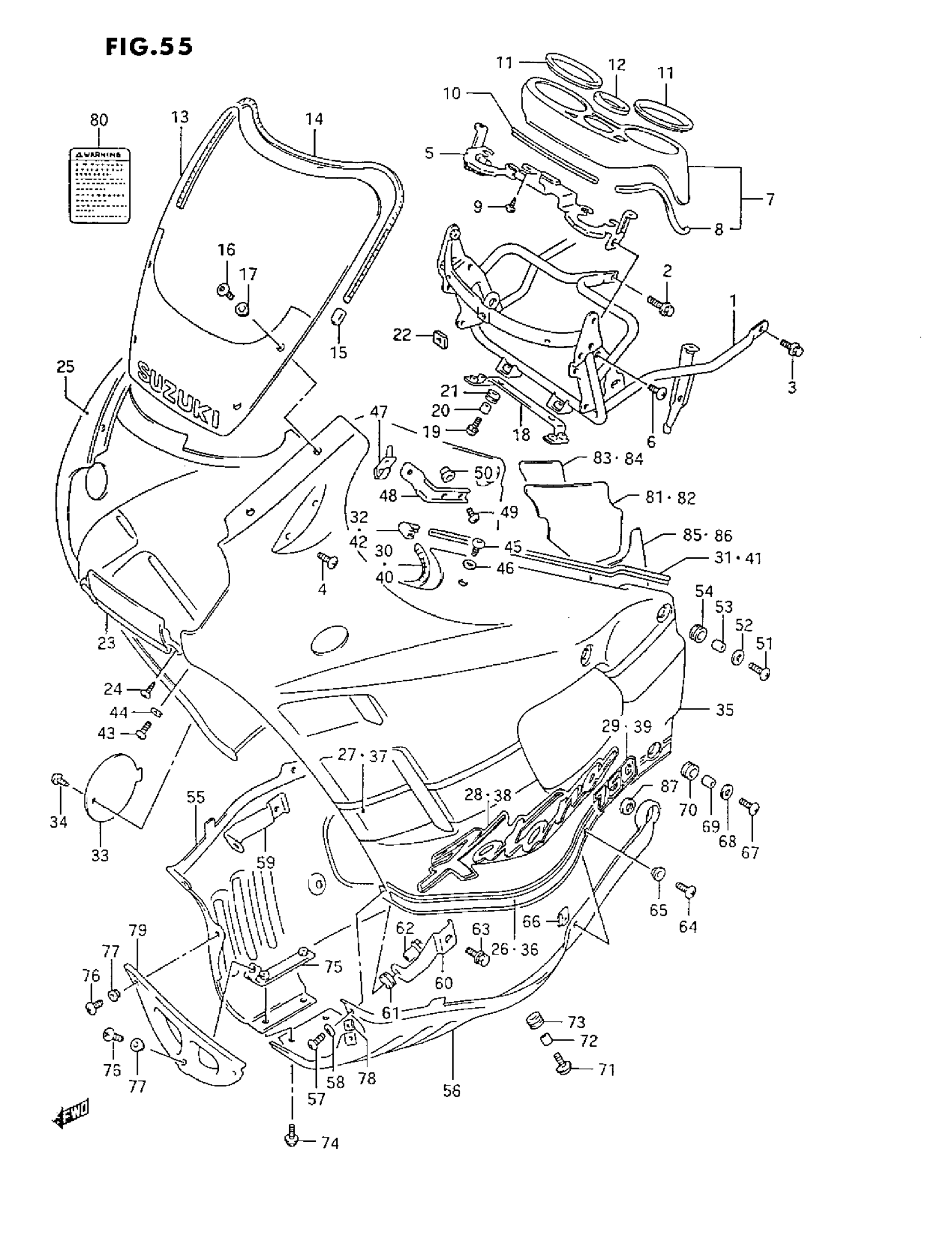

Suzuki GSX750F (1993) COWLING (K) Diagram

#

Description
Price

1

BRACE, COWLING This part replaces 94510-20C00.

94510-20C20

Unavailable

1

BRACE, COWLING | CALIFORNIA ONLY This part replaces 94510-20C10.

94510-20C30

Unavailable

2

BOLT This part replaces 01517-08205.

01550-0820A

$2.23

3

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

4

SCREW

02142-06127

$1.49

5

PLATE, METER

94520-20C00

Unavailable

6

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

7

COVER, METER This part replaces 94420-20C00.

94420-20C02

Unavailable

8

MOLDING, LICENSE HOLDER This part replaces 94635-19C10.

94635-19C00

$8.53

9

SCREW This part replaces 03541-05085.

03541-0508A

$1.49

10

MOLDING, METER

94527-19C00

$7.67

11

CUSHION, SPEEDOMETER

94426-20C00

Unavailable

12

CUSHION, FUEL METER

94427-20C00

Unavailable

13

WINDOW

94610-20C00

Unavailable

14

MOLDING This part replaces 94631-20C00.

94631-49300

$18.86

15

CAP

94637-19C00

Unavailable

16

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

$2.90

17

WASHER (5.2X11.0X1.0)

09161-05010

$2.45

18

PLATE, CENTER

94460-19C00

Unavailable

19

SCREW

09136-06081

$2.26

20

SPACER This part replaces 09180-06167.

09180-06286

$2.50

21

CUSHION

09320-10015

$2.54

22

CUSHION This part replaces 94638-19C00.

63191-25C00

$3.05

23

PANEL, CENTER (SILVER) | CLEAR COATING This part replaces 94421-19C00-0FP.

94421-19C01-0FP

Unavailable

23

PANEL, CENTER (SILVER)

94421-19C01-0FP

Unavailable

23

PANEL, CENTER (BLUE) | CLEAR COATING This part replaces 94421-19C00-24V.

94421-19C01-24V

Unavailable

23

PANEL, CENTER (BLUE)

94421-19C01-24V

Unavailable

24

SCREW This part replaces 02142-05128.

02142-05127

$1.97

25

NO DESCRIPTION AVAILABLE | CLEAR COATING This part replaces 94401-20C10-2VV.

94401-20C12-2VV

Unavailable

25

NO DESCRIPTION AVAILABLE | ->94401-2OCL0-2VV This part replaces 94401-20C11-2VV.

94401-20C12-2VV

Unavailable

25

NO DESCRIPTION AVAILABLE | CLEAR COATING This part replaces 94401-20C10-3CJ.

94430-19C02-3CJ

Unavailable

25

NO DESCRIPTION AVAILABLE | ->94401-20CI0-3CJ This part replaces 94401-20C11-3CJ.

94430-19C02-3CJ

Unavailable

26

TAPE, RH | FOR 2VV

68685-20C00-3DB

Unavailable

26

TAPE, RH | FOR 3CJ

68685-20C00-69L

Unavailable

27

TAPE, RH | FOR 2VV

68686-20C00-73H

Unavailable

27

TAPE, RH | FOR 3CJ

68686-20C00-3CU

Unavailable

28

EMBLEM, RH (KATANA) | FOR 2VV

68181-19C00-3CZ

Unavailable

28

EMBLEM, RH (KATANA) | FOR 3CJ

68181-19C00-3DA

Unavailable

29

EMBLEM (750) | FOR 2VV

68681-20C00-2VV

Unavailable

29

EMBLEM (750) | FOR 3CJ

68681-20C00-3CJ

Unavailable

29

COVER, METER SIDE RH (BLUE) | FOR 2VV WITH OUT DRAWING

94433-19C01-24V

Unavailable

29

COVER, METER SIDE RH (SILVER) | FOR 3CJ WITH OUT DRAWING

94433-19C01-0FP

Unavailable

29

SCREW | WITH OUT DRAWING This part replaces 03541-04105.

03541-0410A

$1.68

30

MOLDING This part replaces 94631-19C10.

94631-49310

Unavailable

31

MOLDING

94635-19C00

$8.53

32

JOINT

94438-19C00

Unavailable

33

LID, OIL (BLUE) | FOR 2VV, CLEAR COATING This part replaces 94435-19C00-24V.

94435-19C01-24V

Unavailable

33

LID, OIL (BLUE) | FOR 2VV

94435-19C01-24V

Unavailable

33

NO DESCRIPTION AVAILABLE | FOR 3CJ, CLEAR COATING This part replaces 94435-19C00-0FP.

94435-19C01

Unavailable

33

NO DESCRIPTION AVAILABLE | FOR 3CJ This part replaces 94435-19C01-0FP.

94435-19C01

Unavailable

34

SCREW

09139-06030

$3.70

35

NO DESCRIPTION AVAILABLE | CLEAR COATING This part replaces 94402-20C10-2VV.

94402-20C12-2VV

Unavailable

35

NO DESCRIPTION AVAILABLE | ->94402-20CI0-2VV This part replaces 94402-20C11-2VV.

94402-20C12-2VV

Unavailable

35

NO DESCRIPTION AVAILABLE | CLEAR COATING This part replaces 94402-20C10-3CJ.

94402-20C22-3CJ

Unavailable

35

NO DESCRIPTION AVAILABLE | ->94402-20CI 0-3CJ This part replaces 94402-20C11-3CJ.

94402-20C22-3CJ

Unavailable

35

COVER ASSY, COWLING LH (SILVER/BLUE) | CALIFORNIA ONLY CLEAR COATING

94402-20C20-2VV

Unavailable

35

COVER ASSY, COWLING LH | ->94402-2OC20-2VV This part replaces 94402-20C21-2VV.

94402-20C20-2VV

Unavailable

35

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY CLEAR COATING This part replaces 94402-20C20-3CJ.

94402-20C22-3CJ

Unavailable

35

NO DESCRIPTION AVAILABLE | ->94402-20C20-3CJ This part replaces 94402-20C21-3CJ.

94402-20C22-3CJ

Unavailable

36

TAPE, LH | FOR 2VV

68695-20C00-3DB

Unavailable

36

TAPE, LH | FOR 3CJ

68695-20C00-69L

Unavailable

37

TAPE, LH | FOR 2VV

68696-20C00-73H

Unavailable

37

TAPE, LH | FOR 3CJ

68696-20C00-3CU

Unavailable

38

EMBLEM, LH (KATANA) | FOR 2VV

68181-19C00-3CZ

Unavailable

38

EMBLEM, LH (KATANA) | FOR 3CJ

68181-19C00-3DA

Unavailable

38

EMBLEM, LH (KATANA) | CALIFORNIA ONLY FOR 2VV

68191-20C00-3CZ

Unavailable

38

EMBLEM, LH (KATANA) | CALIFORNIA ONLY FOR 3CJ

68191-20C00-3DA

Unavailable

39

EMBLEM (750) | FOR 2VV

68681-20C00-2VV

Unavailable

39

EMBLEM (750) | FOR 3CJ

68681-20C00-3CJ

Unavailable

39

COVER, METER SIDE LH (BLUE) | FOR 2VV WITH OUT DRAWING

94443-19C01-24V

Unavailable

39

COVER, METER SIDE LH (SILVER) | FOR 3CJ WITH OUT DRAWING

94443-19C01-0FP

Unavailable

39

SCREW | WITH OUT DRAWING This part replaces 03541-04105.

03541-0410A

$1.68

40

MOLDING This part replaces 94631-19C10.

94631-49310

Unavailable

41

MOLDING

94635-19C00

$8.53

42

JOINT

94438-19C00

Unavailable

43

SCREW, FRONT

09139-06029

$5.36

44

WASHER

09160-06036

$2.28

45

SCREW, UPPER

09139-06030

$3.70

46

WASHER

09161-06021

$2.83

47

BRACKET, UPPER RH

94560-19C00

Unavailable

48

BRACKET, UPPER LH

94570-19C00

Unavailable

49

SCREW

09125-06055

$2.34

50

NUT

94573-19C00

Unavailable

51

SCREW

09139-06029

$5.36

52

WASHER

09160-06036

$2.28

53

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

54

CUSHION

09320-09016

$1.97

55

COVER, UNDER RH (SILVER) | FOR 2VV

94471-19C00-13L

Unavailable

55

COVER, UNDER RH (SILVER) | FOR 3CJ

94471-19C00-0FP

Unavailable

56

COVER, UNDER, LH (SILVER) | FOR 2VV

94481-19C00-13L

Unavailable

56

COVER, UNDER, LH (SILVER) | FOR 3CJ

94481-19C00-0FP

Unavailable

57

SCREW, FRONT

09139-06042

$5.55

58

WASHER

09160-06036

$2.28

59

BRACKET, UNDER, RH

94531-19C00

Unavailable

60

BRACKET, UNDER, LH

94532-19C00

Unavailable

61

CUSHION

09320-10015

$2.54

62

NUT

94590-19C00

Unavailable

63

BOLT This part replaces 01137-06165.

01570-0616A

$2.23

64

SCREW

09139-05025

$2.05

65

WASHER

09161-05017

$3.18

66

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

67

SCREW, REAR

09139-06029

$5.36

68

WASHER

09160-06036

$2.28

69

SPACER

09180-06116

Unavailable

70

CUSHION

09320-09016

$1.97

71

SCREW, LOWER

09136-06081

$2.26

72

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

73

CUSHION, LOWER

09320-09016

$1.97

74

SCREW This part replaces 02142-15165.

02142-0516A

$1.49

75

BRACKET, LOWER

94580-19C00

Unavailable

76

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

77

WASHER

09161-05017

$3.18

78

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

79

COVER, COW UNDER FRONT (BLACK | FOR 2VV This part replaces 94475-19C00-13L.

94475-19C01

Unavailable

79

NO DESCRIPTION AVAILABLE | FOR 3CJ This part replaces 94475-19C00-0FP.

94475-19C01-0FP

Unavailable

79

COVER, UNDER, FRONT (BLACK)

94475-19C01

Unavailable

80

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

81

SHEET, BALANCER, RH

94573-20C00

Unavailable

82

SHEET, BALANCER, LH

94583-20C00

Unavailable

83

CUSHION, RH

94576-20C00

Unavailable

84

CUSHION, LH

94586-20C00

Unavailable

85

SHEET, BALANCER LOWER, RH

94574-20C00

Unavailable

86

SHEET, BALANCER LOWER, LH

94584-20C00

Unavailable

86

SHEET, BALANCER LOWER, LH | CALIFORNIA ONLY

94584-20C10

Unavailable

87

CUSHION, UNDER, REAR

94639-20C00

$3.10
