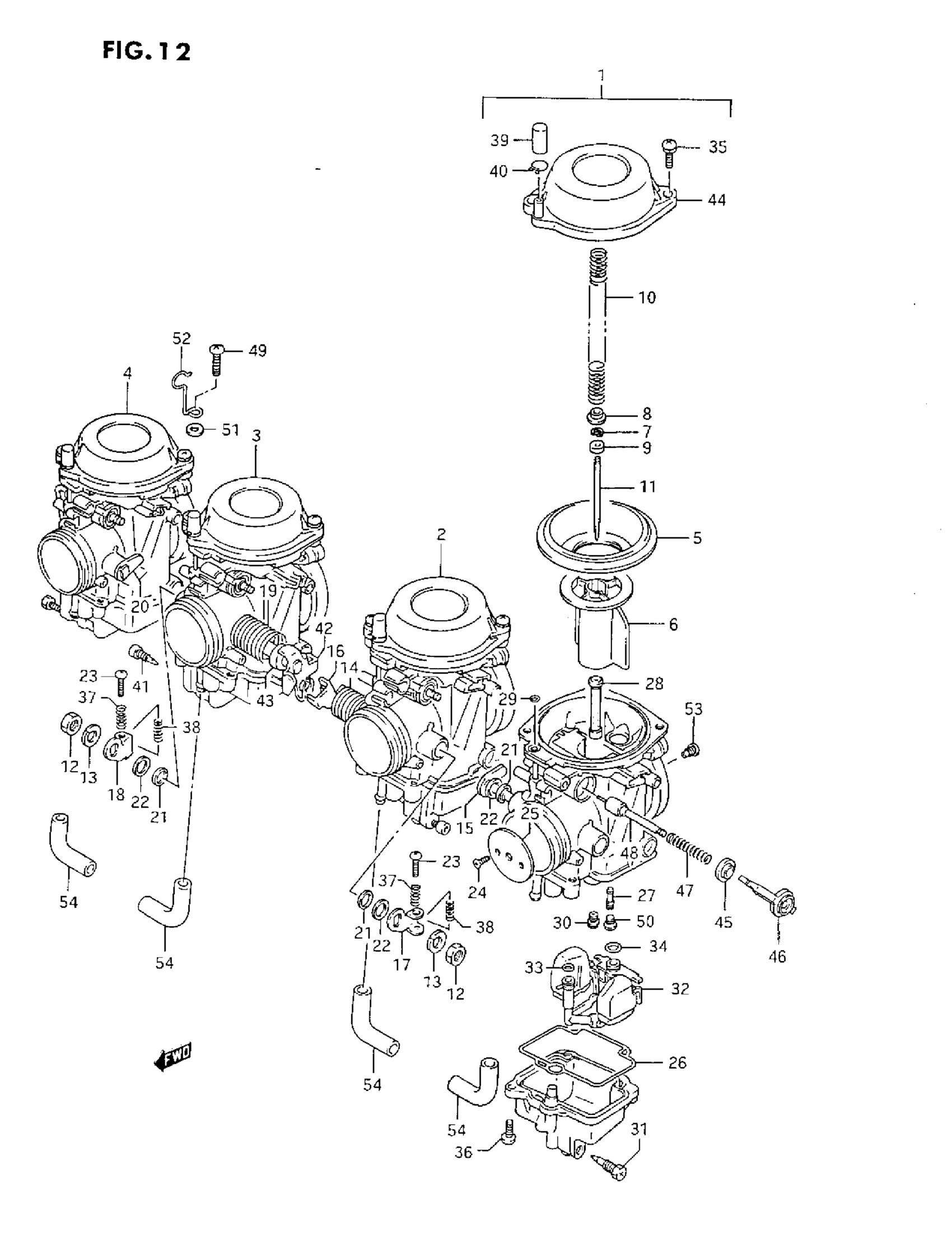

Suzuki GSX750F (1993) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH This part replaces 13201-20C30.

13201-20C31

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 13201-20C40.

13201-20C41

Unavailable

2

CARBURETOR ASSY, ML This part replaces 13202-20C30.

13202-20C31

Unavailable

2

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 13202-20C40.

13202-20C41

Unavailable

3

CARBURETOR ASSY, MR This part replaces 13203-20C30.

13203-20C31

Unavailable

3

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 13203-20C40.

13203-20C41

Unavailable

4

CARBURETOR ASSY, RH This part replaces 13204-20C30.

13204-20C31

Unavailable

4

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 13204-20C40.

13204-20C41

Unavailable

5

.DIAPHRAGM This part replaces 13507-17C00.

13507-17C02

$29.60

6

VALVE, PISTON

13501-17C00

Unavailable

7

E RING

13394-31210

$4.64

8

RING

13382-42A00

$4.48

9

RING

13387-44030

$5.83

10

SPRING

13417-42A00

$6.79

11

NEEDLE, JET (5EZ62-1)

13383-20C10

$19.63

11

NEEDLE, JET (5EZ63-1) | CALIFORNIA ONLY

13383-20C20

Unavailable

12

NUT | ML, MR <-08310-20186

08310-00087

$2.13

13

.LOCK WASHER | ML, MR <-08321-31086

08321-01087

$2.13

14

SPRING | ML

13573-17C00

Unavailable

15

SHAFT ASSY | LH

13550-17C00

Unavailable

16

SHAFT ASSY | ML

13550-17C10

Unavailable

17

LEVER | ML

13553-17C00

Unavailable

18

LEVER | MR

13553-44B00

Unavailable

19

SPRING | MR

13573-17C10

Unavailable

20

SHAF1 ASSY | RH

13550-17C30

Unavailable

21

SEAL | LH, RH:I, ML:MR:2

13556-41B00

Unavailable

22

WASHER

13557-47070

$3.59

23

SCREW | ML:2, MR:L

13267-44B00

$4.10

24

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.92

25

VALVE, THROTTLE (120)

13551-20C00

Unavailable

25

VALVE, THROTTLE (115) | CALIFORNIA ONLY

13551-17C10

Unavailable

26

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

27

JET, PILOT (32.5)

09492-32006

$11.32

28

JET, NEEDLE (Y-1M) This part replaces 09494-00633.

09494-00875

Unavailable

29

O-RING

13509-17C00

$4.34

30

JET, MAIN (105) | LH, ML, RH

09491-21016

$12.13

30

JET, MAIN (110) | MR

09491-22016

$10.06

31

SCREW, DRAIN | LH, RH

13247-24500

Unavailable

32

FLOAT/NEEDLE VA This part replaces 13250-20C00.

13250-20C10

Unavailable

33

.O RING

13374-46710

$4.48

34

O RING This part replaces 13374-44080.

13374-35C00

$5.99

35

SCREW | LH, ML, RH:2, MR:L This part replaces 13602-34390.

02112-7516A

$2.41

36

SCREW This part replaces 13602-05128.

02112-05127

$1.97

37

SPRING | ML:2, MR:L

13271-44B00

$3.89

38

SPRING | ML;2, MR:L

13268-17C10

$6.19

39

CAP

13508-17C00

$4.74

40

CLIP This part replaces 13671-33600.

13671-05A40

$3.71

41

SCREW, DRAIN | ML, MR <-13247-38800 This part replaces 13247-13A00.

13247-02340

$4.99

42

SHAFT ASSY | MR

13550-17C20

Unavailable

43

RING | MR

13574-28A00

$4.13

44

COVER, DIAPHRAGM

13502-17C00

Unavailable

45

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$4.19

46

HOLDER

13418-17C10

$13.90

47

SPRING

13417-09110

$6.30

48

PLUNGER ASSY

13411-20C00

Unavailable

49

SCREW | MR

02112-05164

$2.63

50

PLUG

13357-34C00

$4.60

51

WASHER, FRONT | MR This part replaces 13606-00A10.

08322-0105A

$1.84

52

CLIP | MR

13671-20C20

Unavailable

53

JET, AIR (1.4) This part replaces 09493-28007.

09493-28006

$16.32

53

JET, PILOT AIR (1.2) | CALIFORNIA ONLY

09493-24007

$16.15

54

HOSE | CALIFORNIA ONLY This part replaces 13684-48B00.

13684-48B11

$15.96
