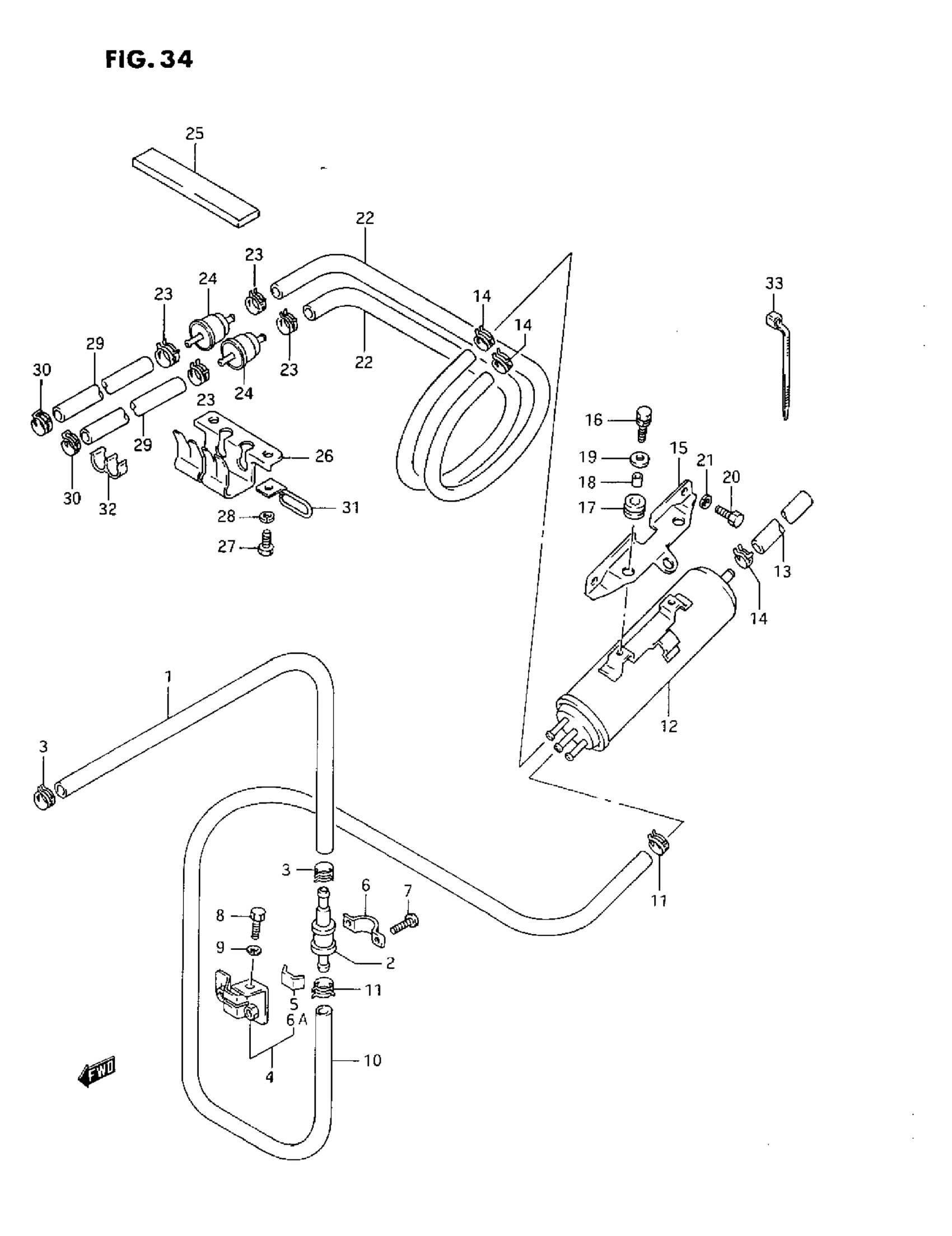

Suzuki GSX750F (1993) CANISTER (CALIFORNIA ONLY) Diagram

#

Description
Price

1

HOSE, CANISTER & CARB | L:1000->620 This part replaces 09358-54116-00A.

09355-54115-00B

Unavailable

2

VALVE, BREATHER

44240-38A00

$61.15

3

CLIP This part replaces 09401-11410.

09401-11413

$2.26

4

BRACKET, BREATHER VALVE

44890-19C00

Unavailable

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

8

BOLT This part replaces 01107-05108.

01500-0510B

$1.80

9

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

10

HOSE, BREATHER-CANISTER

44434-20C00

Unavailable

11

CLIP This part replaces 09401-11410.

09401-11413

$2.26

12

CANISTER ASSY

17210-20C00

Unavailable

13

HOSE,6.5X11.5X6 This part replaces 09354-70123-600.

44421-12FR0

$12.33

14

CLIP This part replaces 09401-12406.

09401-11415

$2.23

15

BRACKET, CANISTER MOUNTING

44871-19C00

Unavailable

16

BOLT This part replaces 01137-06167.

01570-06167

$3.03

17

CUSHION (8.5X20X8) | MODEL K/L/M/N/P This part replaces 09320-08007.

09320-08510

$1.97

17

CUSHION (8.5X20X8) | MODEL R This part replaces 09320-08021.

09320-08510

$1.97

18

SPACER

09180-06038

$1.98

19

WASHER | MODEL K/L/M/N/P This part replaces 09160-06012.

09160-06054

$1.62

19

WASHER | MODEL R

09160-06054

$1.62

20

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

21

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

22

HOSE, CANISTER PURGE VALVE | L:600->450

09359-54111-600

$25.80

23

CLIP This part replaces 09401-11410.

09401-11413

$2.26

24

VALVE, CANISTER PURGE

44250-48B00

Unavailable

25

CUSHION | MODEL K/L/M/N/P This part replaces 44255-19C00.

47451-38A01

$4.43

25

CUSHION | MODEL R This part replaces 17798-29E40.

47451-38A01

$4.43

26

HOLDER, VACUUM VALVE

44881-20C00

Unavailable

27

BOLT This part replaces 01107-06107.

01500-06107

$2.06

28

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

29

HOSE, TANK & BREATHER VALVE | L:600->380 This part replaces 09354-54115-600.

09355-54115-600

$14.59

30

CLIP (ID:10.5,H:8)

09401-10409

$2.26

31

GUIDE, CANISTER-PURGE HOSE | MODEL K This part replaces 44480-20C00.

44480-20C01

Unavailable

31

GUIDE, CANISTER-PURGE HOSE | MODEL L/M/N/P/R

44480-20C01

Unavailable

32

CLAMP (ID:11.8X2)

09408-00043

Unavailable
