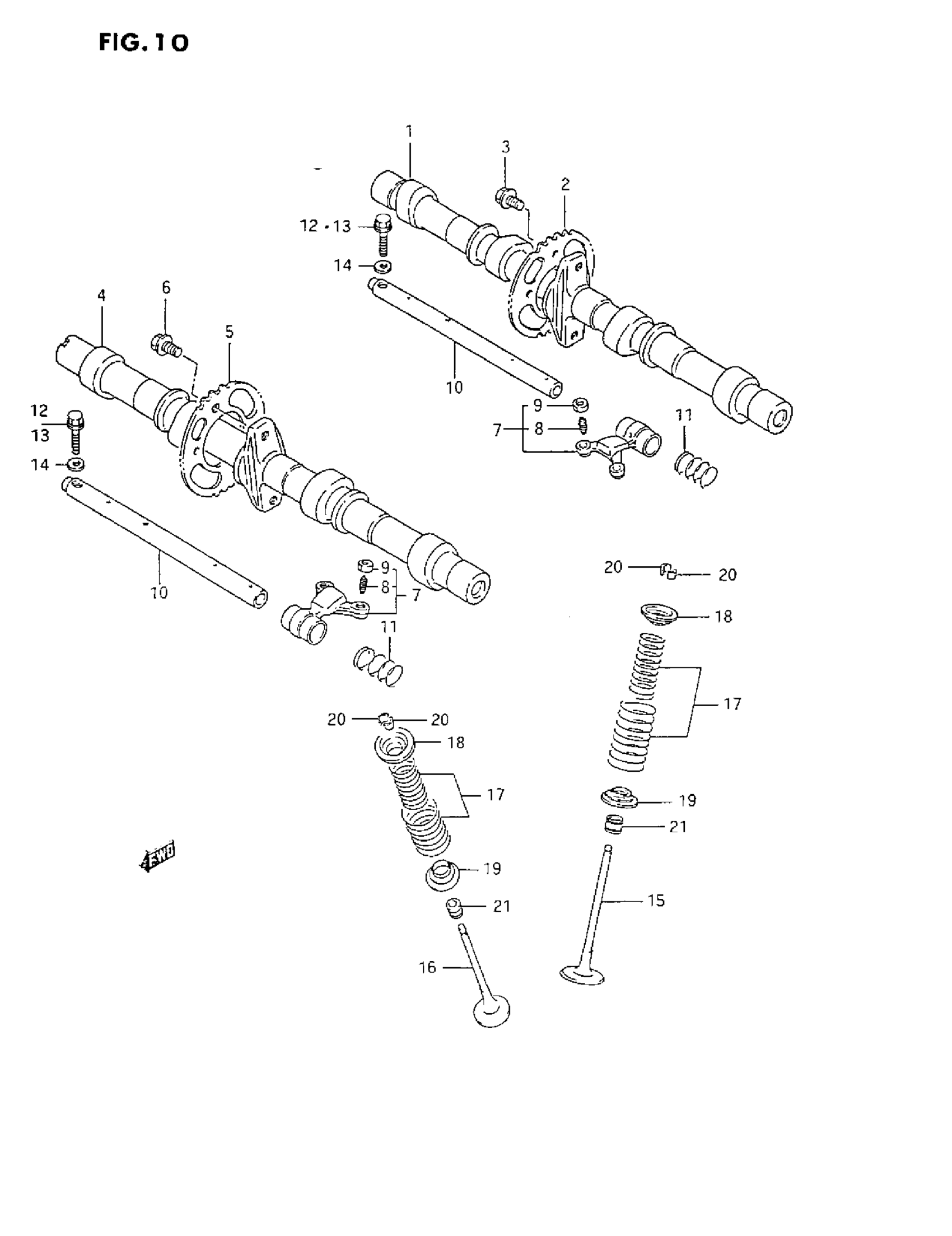

Suzuki GSX750F (1993) CAM SHAFT-VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE | -E.N0.115054 This part replaces 12711-28A01.

12711-28A10

Unavailable

1

CAM SHAFT, INTAKE | E.N0.115055-

12711-28A10

Unavailable

2

SPROCKET, CAM SHAFT

12741-17C01

Unavailable

3

BOLT

09103-07001

$2.43

4

CAM SHAFT, EXHAUST | -E.N0.115054 This part replaces 12721-28A01.

12721-28A10

Unavailable

4

CAM SHAFT, EXHAUST | E.N0.115055-

12721-28A10

Unavailable

5

SPROCKET, CAM SHAFT

12741-17C01

Unavailable

6

BOLT

09103-07001

$2.43

7

ARM, VALVE ROCKER | MODEL K This part replaces 12840-17C01.

12840-27A01

$76.68

7

ARM, VALVE ROCKER | MODEL L/M/N/P This part replaces 12840-27A00.

12840-27A01

$76.68

7

ARM, VALVE ROCKER | MODEL R

12840-27A01

$76.68

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.94

10

SHAFT, VALVE ROCKER ARM

12861-27A00

Unavailable

11

SPRING

09440-13014

$2.45

12

BOLT | MODEL K/L/M/N/P This part replaces 01717-06306.

01550-0630A

$2.32

13

BOLT | MODEL R

01800-06303

Unavailable

14

.WASHER | MODEL R This part replaces 08322-01063.

08322-0106B

$2.26

15

VALVE, INTAKE

12911-17C02

Unavailable

16

VALVE, EXHAUST

12912-17C00

Unavailable

17

SPRING SET, VALVE

12920-17C00

Unavailable

18

RETAINER,VALVE This part replaces 12931-17C00.

12931-17C02

Unavailable

19

SEAT, SPRING

12933-17C00

Unavailable

20

COTTER, VALVE

12932-27A00

$2.26

21

OIL SEAL

09289-05011

$6.32
