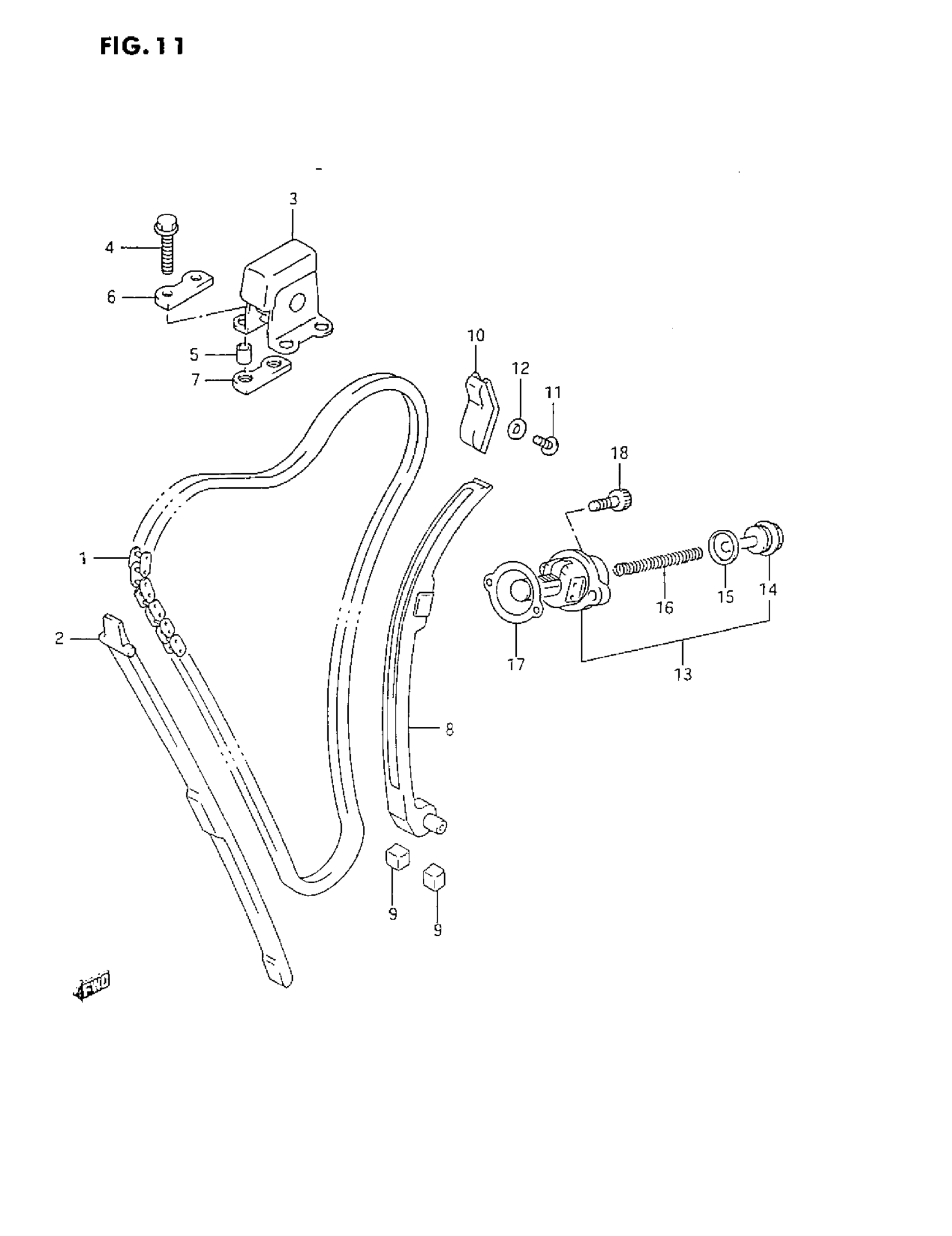

Suzuki GSX750F (1993) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE This part replaces 12760-17C01.

12760-17C02

Unavailable

2

GUIDE, CAM CHAIN NO-1

12771-17C01

Unavailable

3

IDLER, CAM CHAIN This part replaces 12780-27A03.

12780-40C00

Unavailable

4

BOLT | MODEL K/L/M/N/P This part replaces 01517-06307.

01550-06307

$2.69

4

BOLT | MODEL R This part replaces 01550-06303.

01550-0630A

$2.32

5

SPACER This part replaces 09180-06167.

09180-06286

$2.50

6

CUSHION (T:5.2)

12788-48B01

Unavailable

7

CUSHION (T:8.6)

12788-48B11

Unavailable

8

TENSIONER, CAM CHAIN

12810-17C00

Unavailable

9

CUSHION

12814-34200

$5.58

10

GUIDE, CAM CHAIN NO.2

12791-17C00

Unavailable

11

STOPPER, CL RLSE CAM SHAFT | MODEL K/L/M/N/P This part replaces 02142-06104.

02142-0610A

$1.49

11

STOPPER, CL RLSE CAM SHAFT | MODEL R This part replaces 02142-06103.

02142-0610A

$1.49

12

WASHER

09168-06023

$2.35

13

ADJUSTER ASSY, TENSIONER | MODEL K/L/M/N/P This part replaces 12830-27A06.

12830-27A08

Unavailable

13

ADJUSTER ASSY, TENSIONER | MODEL R

12830-27A08

Unavailable

14

PLUG

12834-27A00

Unavailable

15

GASKET

12832-27A00

$6.91

16

SPRING

12833-27A00

Unavailable

17

GASKET | MODEL K/L This part replaces 12837-27A00.

12837-27A10

$3.85

17

GASKET | MODEL M This part replaces 12837-27A00-H17.

12837-27A10

$3.85

17

GASKET, ADJUSTER | MODEL N/P/R

12837-27A10

$3.85

18

BOLT | MODEL K/L/M/N/P This part replaces 07110-06255.

07130-0625B

$3.04

18

BOLT | MODEL R This part replaces 07130-06253.

07130-0625B

$3.04
