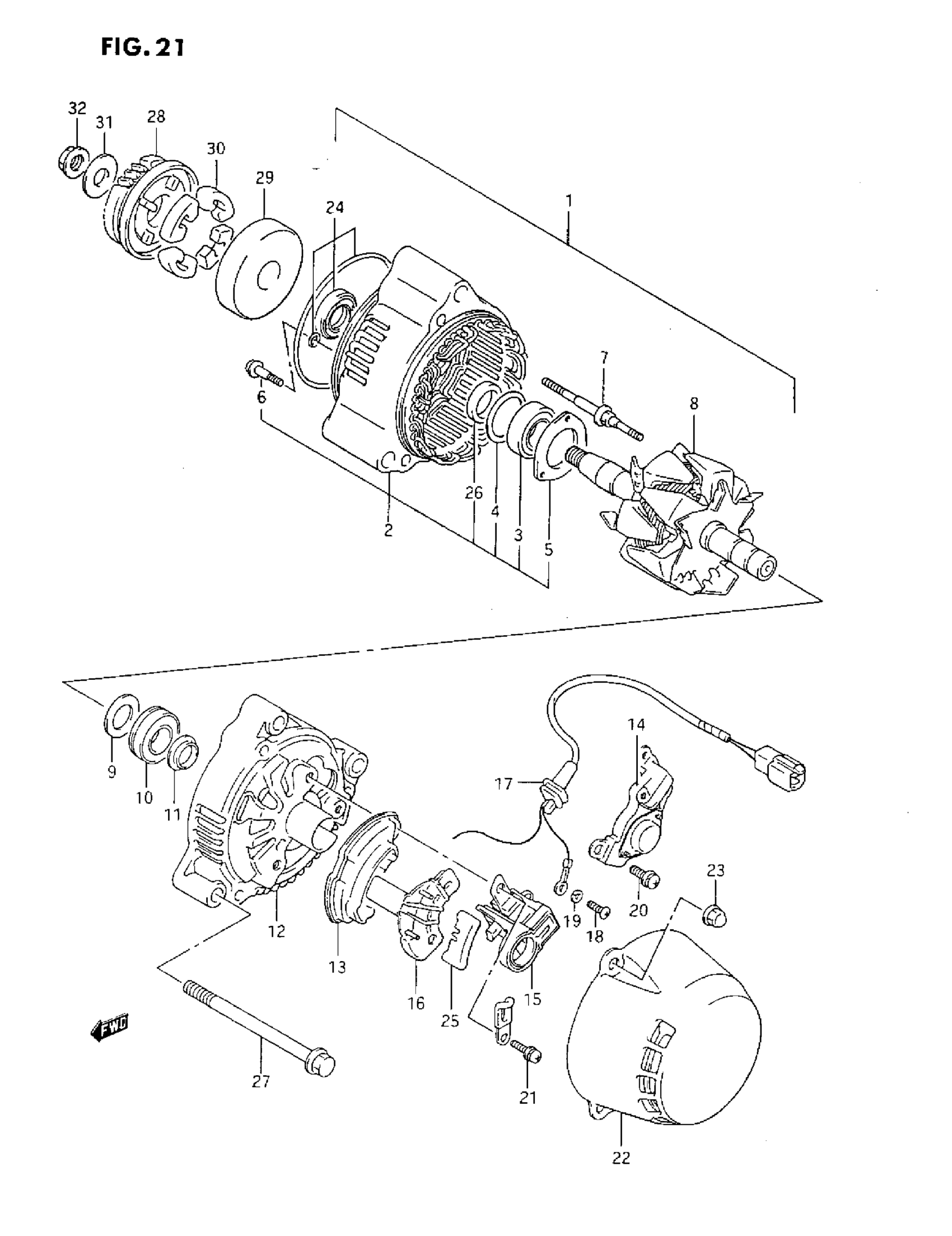

Suzuki GSX750F (1993) ALTERNATOR Diagram

#

Description
Price

1

ALTERNATOR ASSY | MODEL K/L/M/N This part replaces 31400-48B03.

31400-17C04

Unavailable

1

ALTERNATOR ASSY | MODEL P This part replaces 31400-19C02.

31400-17C04

Unavailable

1

ALTERNATOR ASSY | MODEL R This part replaces 31400-17C03.

31400-17C04

Unavailable

2

FRAME, DRIVE END

31580-48B00

Unavailable

3

BEARING

31612-06B00

Unavailable

4

COVER, BEARING

31613-48B00

Unavailable

5

RETAINER, BEARING

31585-48B00

Unavailable

6

SCREW, BEARING RETAINER

31586-48B00

Unavailable

7

STUD BOLT | MODEL K

31587-85250

Unavailable

7

STUD BOLT | MODEL L/M/N/P/R This part replaces 31587-19C00.

31587-85250

Unavailable

8

ROTOR ASSY This part replaces 31710-48B03.

31710-48B04

Unavailable

9

COVER (1)

31613-82610

Unavailable

10

BEARING

31612-48B00

$47.07

11

COVER (2)

31613-27A10

Unavailable

12

FRAME, END

31611-48B00

Unavailable

13

HOLDER, RECTIFIER

31621-27A00

Unavailable

14

REGULATOR

32500-27A00

Unavailable

15

HOLDER, BRUSH

31656-48B00

Unavailable

16

COVER, RECTIFIER This part replaces 31687-27A00.

31687-17E00

$6.88

17

LEAD WIRE

31480-48B00

Unavailable

18

SCREW | MODEL K This part replaces 02112-04086.

02112-0408A

$1.49

18

SCREW | MODEL L/M/N/P This part replaces 31516-85250.

02112-0406B

$1.55

18

SCREW | MODEL R This part replaces 02112-04063.

02112-0406B

$1.55

19

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

20

SCREW (5XL7 )

31688-27A00

Unavailable

21

SCREW (5X17) This part replaces 31688-06B00.

31688-27A00

Unavailable

22

COVFR

31614-48B00

Unavailable

23

NUT | MODEL K This part replaces 31692-48B00.

08313-2005A

$2.42

23

NUT | MODEL L/M/N/P/R

08316-16055

Unavailable

24

OIL SEAL SET This part replaces 31780-48B00.

31780-27X50

$53.82

25

COVER, RECTIFIER This part replaces 31514-27A00.

31687-17E00

$6.88

26

SPACER

31776-06B00

Unavailable

27

BOLT | MODEL K/L/M/N/P This part replaces 01517-08908.

01550-08907

$5.18

27

BOLT | MODEL R

01570-08903

Unavailable

28

GEAR, GENERATOR DRIVEN (NT:30) This part replaces 22730-20C00.

22730-19C02

Unavailable

29

HOUSING DAMPER This part replaces 22733-27A04.

22733-27A05

Unavailable

30

DAMPER

21231-06B00

$4.64

31

WASHER

08211-10283

$3.78

32

NUT This part replaces 08316-26106.

08316-2010B

$3.43
