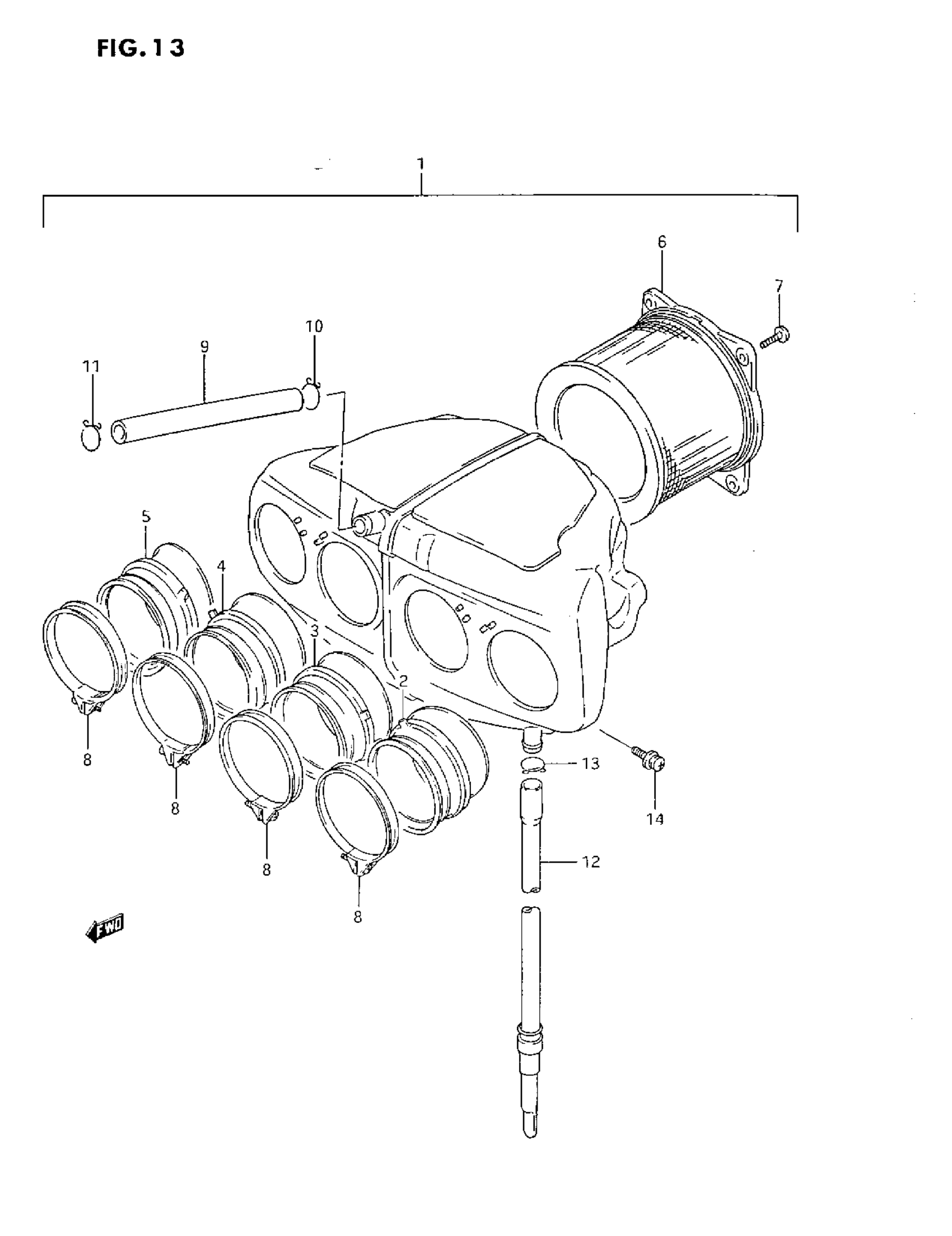

Suzuki GSX750F (1993) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL K/L/M/N This part replaces 13700-20C00.

13700-20C03

Unavailable

1

CLEANER ASSY, AIR | MODEL P/R This part replaces 13700-20C02.

13700-20C03

Unavailable

2

TUBE, OUTLET LH | MODEL K/L/M/N This part replaces 13881-20C00.

13881-20C01

Unavailable

2

TUBE, OUTLET LH | MODEL P/R

13881-20C01

Unavailable

3

TUBE, OUTLET ML | MODEL K/L/M/N This part replaces 13882-20C00.

13882-20C01

Unavailable

3

TUBE, OUTLET ML | MODEL P/R

13882-20C01

Unavailable

4

TUBE, OUTLET MR | MODEL K/L/M/N This part replaces 13883-20C00.

13883-20C01

Unavailable

4

TUBE, OUTLET MR | MODEL P/R

13883-20C01

Unavailable

5

TUBE, OUTLET RH | MODEL K/L/M/N This part replaces 13884-20C00.

13884-20C01

Unavailable

5

TUBE, OUTLET RH | MODEL P/R

13884-20C01

Unavailable

6

FILTER

13780-20C00

$63.15

7

.SCREW | MODEL K/L/M/N This part replaces 02142-05124.

02142-0512A

$1.49

7

.SCREW | MODEL P/R This part replaces 02142-05123.

02142-0512A

$1.49

8

CLAMP This part replaces 13826-20C00.

09402-66208

$5.57

9

TUBE, BREATHER

13853-19C00

$15.42

10

CLIP This part replaces 13828-37300.

09401-16401

$3.14

11

CLIP

09401-14301

$2.35

12

TUBE,DRAIN This part replaces 13870-11477.

13870-11459

$15.51

13

CLIP This part replaces 13824-00A00.

09401-13409

$2.12

14

SCREW This part replaces 02112-76168.

02112-7616A

$2.12
