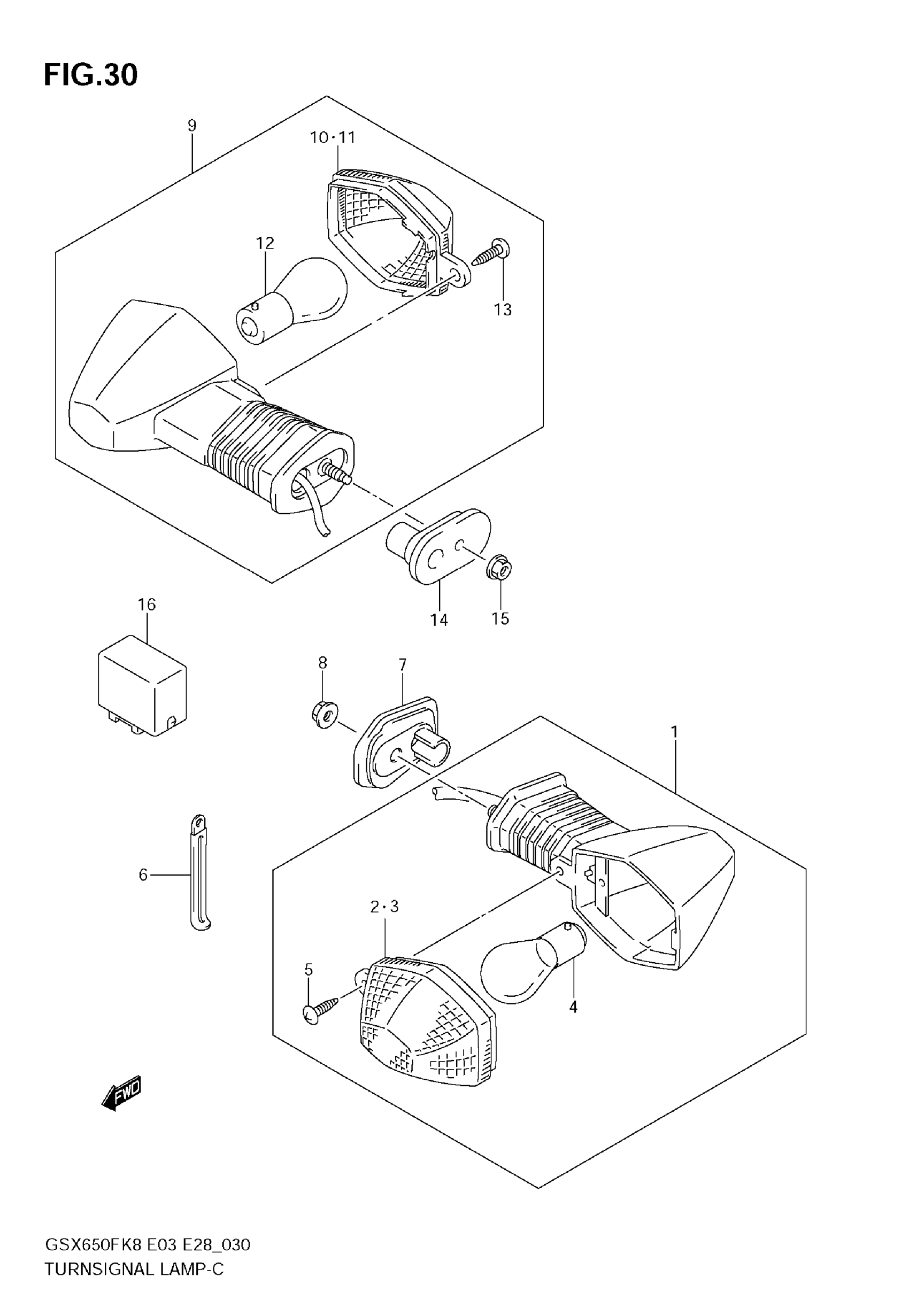

Suzuki GSX650F (2009) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL, RH

35601-38G10

$106.15

1

LAMP ASSY, FRONT TURNSIGNAL, LH | Includes Item(s) 2 - 5

35602-38G10

$106.15

2

LENS, RH | FOR CLEAR

35612-29FA0

$14.37

3

LENS, LH | FOR CLEAR

35632-29FA0

$14.37

4

BULB (12V 21W) | FOR AMBER

09471-12186

$12.66

5

SCREW

03241-0416B

$2.15

6

CLAMP (L:45)

09404-06429

$1.83

7

PLATE, FR TURNSIGNAL

35629-18G00

$2.42

8

NUT

08316-1005B

$2.50

9

LAMP ASSY, REAR TURNSIGNAL, RH

35603-29FB0

$110.18

9

LAMP ASSY, REAR TURNSIGNAL, LH | Includes Item(s) 10 - 13

35604-29FB0

$108.15

10

LENS, RH | FOR CLEAR

35632-29FA0

$14.37

11

LENS, LH | FOR CLEAR

35612-29FA0

$14.37

12

BULB (12V 21W) | FOR AMBER

09471-12186

$12.66

13

SCREW

03241-0416B

$2.15

14

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.40

15

NUT

08316-1005B

$2.50

16

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
