Description

Price

1

COVER ASSY,SEAT | Includes Item(s) 2 - 5 This part replaces 45500-38G12-4CX.

45500-38G13-4CX

$463.97

2

EMBLEM, "SUZUKI"

68280-04F00-YU8

$21.72

3

TAPE, SEAT TAIL COVER RR NO.1

45516-42F00

$10.08

4

TAPE, SEAT TAIL COVER LOWER

45517-16G00

$9.08

5

TAPE, SEAT TAIL COVER RR NO.2

47161-10D00

$6.75

6

CUSHION (8.5X23X9.5) This part replaces 09320-08047.

09320-08518

$2.62

7

CUSHION, TAIL COVER RR FR

09320-12068

$3.25

8

SPACER, TAIL COVER RR FR

09180-06300

$3.52

9

CUSHION, TAIL COVER RR RR

09320-14023

$4.53

10

SPACER, TAIL COVER RR RR

09180-08199

$2.14

11

CLIP

09409-06314-5PK

$2.80

12

HANDLE, PILLION RIDER (BLACK) This part replaces 46211-32F00-YAY.

46211-32F10-YAY

$325.17

13

HOOK, PILLION RIDER HANDLE

46316-31F00

$22.68

14

WASHER, HOOK

46317-31F00

$10.97

15

BOLT

07120-0645B

$3.08

16

CAP

09250-05009

$2.10

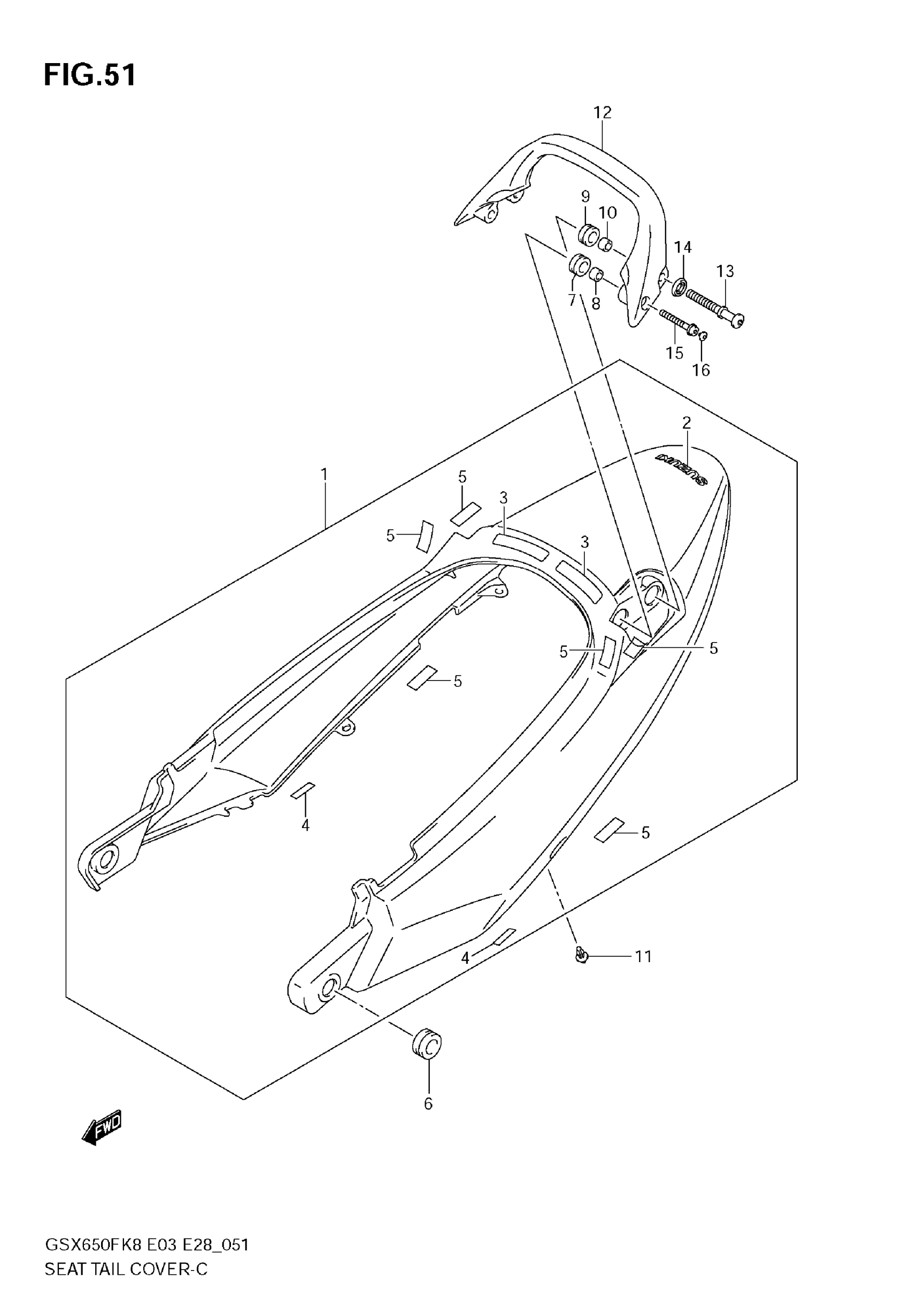

Suzuki GSX650F (2009) SEAT TAIL COVER (YAY) Diagram
