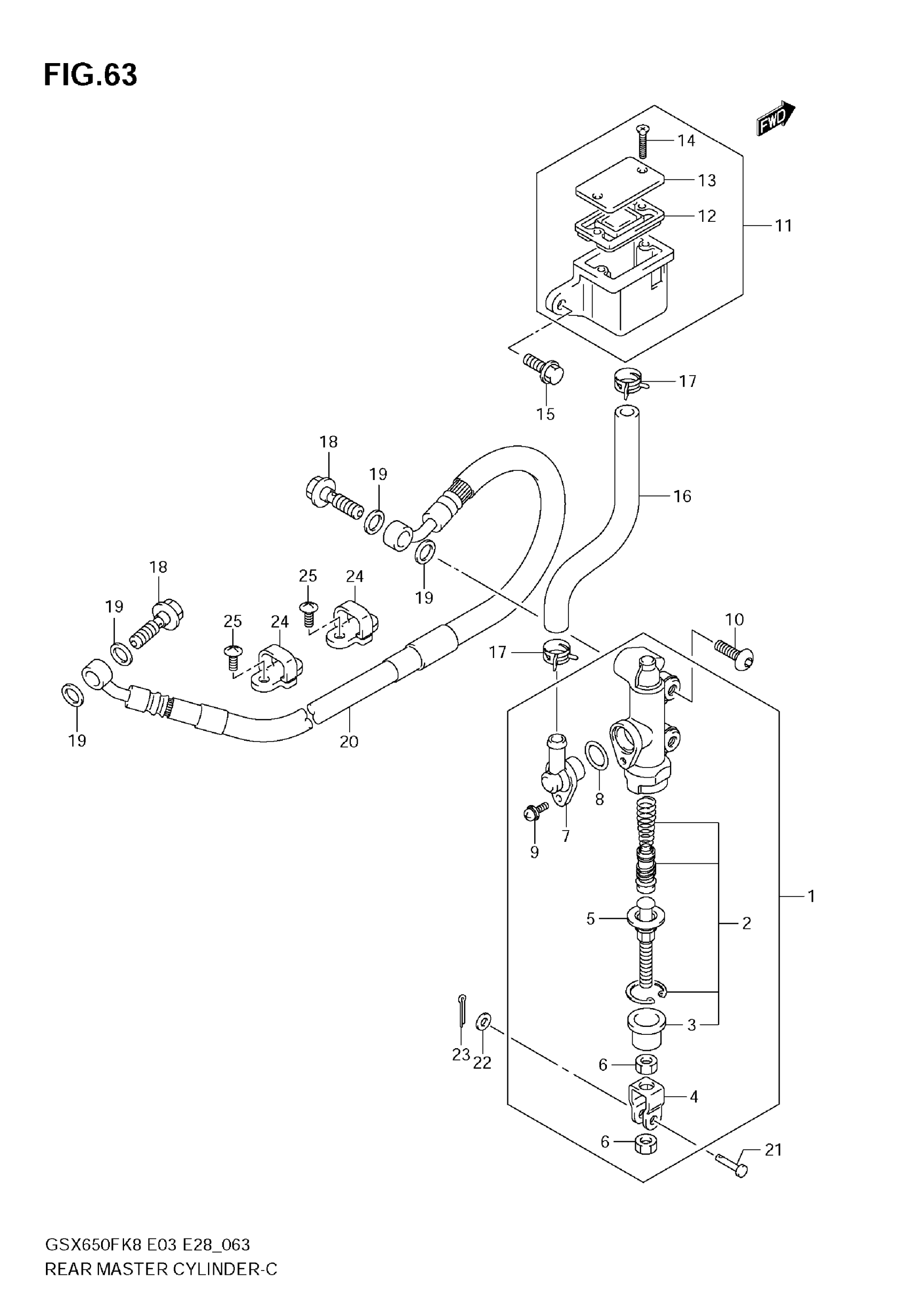

Suzuki GSX650F (2009) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-17C10

$348.28

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$25.44

3

.BOOT

69691-00A00

$5.22

4

YOKE

69692-27A30

$13.59

5

ROD, PUSH

69670-48B00

$35.80

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-05A00

$5.47

8

O RING

69686-34200

$2.80

9

SCREW

02112-7412A

$2.67

10

BOLT

09106-08167

$3.27

11

TANK ASSY, REAR RESERVOIR | Includes Item(s) 12 - 14

69740-38B21

$116.63

12

DIAPHRAGM

59667-04700

$9.36

13

CAP

59669-05D00

$16.49

14

SCREW

69689-04A00

$2.15

15

BOLT

01547-0612B

$1.25

16

HOSE, RESERVOIR TANK

69731-31F00

$23.55

17

CLAMP

09401-13417

$2.31

18

BOLT (10X1.25X22)

09360-10062

$5.99

19

WASHER (10X15X1.5)

09161-10009

$1.89

20

HOSE ASSY, REAR BRAKE NO.2

69480-18H00

Unavailable

21

PIN

09200-06068

$3.82

22

WASHER

08322-0106B

$2.31

23

PIN, COTTER

04111-2015A

$1.25

24

GUIDE, RR BRAKE HOSE

61196-38G01

Unavailable

25

SCREW

02142-0616B

$1.86
